IBM SAN Volume Controller 2145-CG8 - Assembly; Replacing the 10 Gbps Ethernet Riser-Card Assembly

6. If you are not replacing the 10 Gbps Ethernet riser-card assembly, be sure to install one of these other
two cards that must be used in the PCI slot 2 connector. If you do not have a riser card, you can
disassemble the 10 Gbps Ethernet riser-card assembly to use the riser card from the assembly.
7. Place the Ethernet riser-card assembly on a flat, static-protective surface.
8. If you are instructed to return the 10 Gbps Ethernet riser-card assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to you.
Replacing the 10 Gbps Ethernet riser-card assembly
An IBM authorized service provider can replace the 10 Gbps Ethernet riser-card assembly.
Take precautions to avoid damage from static electricity. Wear an anti-static wrist strap and use a
static-protected mat or surface. For more information, see “Handling static-sensitive devices” on page xx.
Replacing the 2145-CG8 10 Gbps Ethernet riser-card assembly
An authorized IBM service provider can replace the 10 gigabits per second (Gbps) Ethernet riser-card
assembly into the SAN Volume Controller 2145-CG8 node.

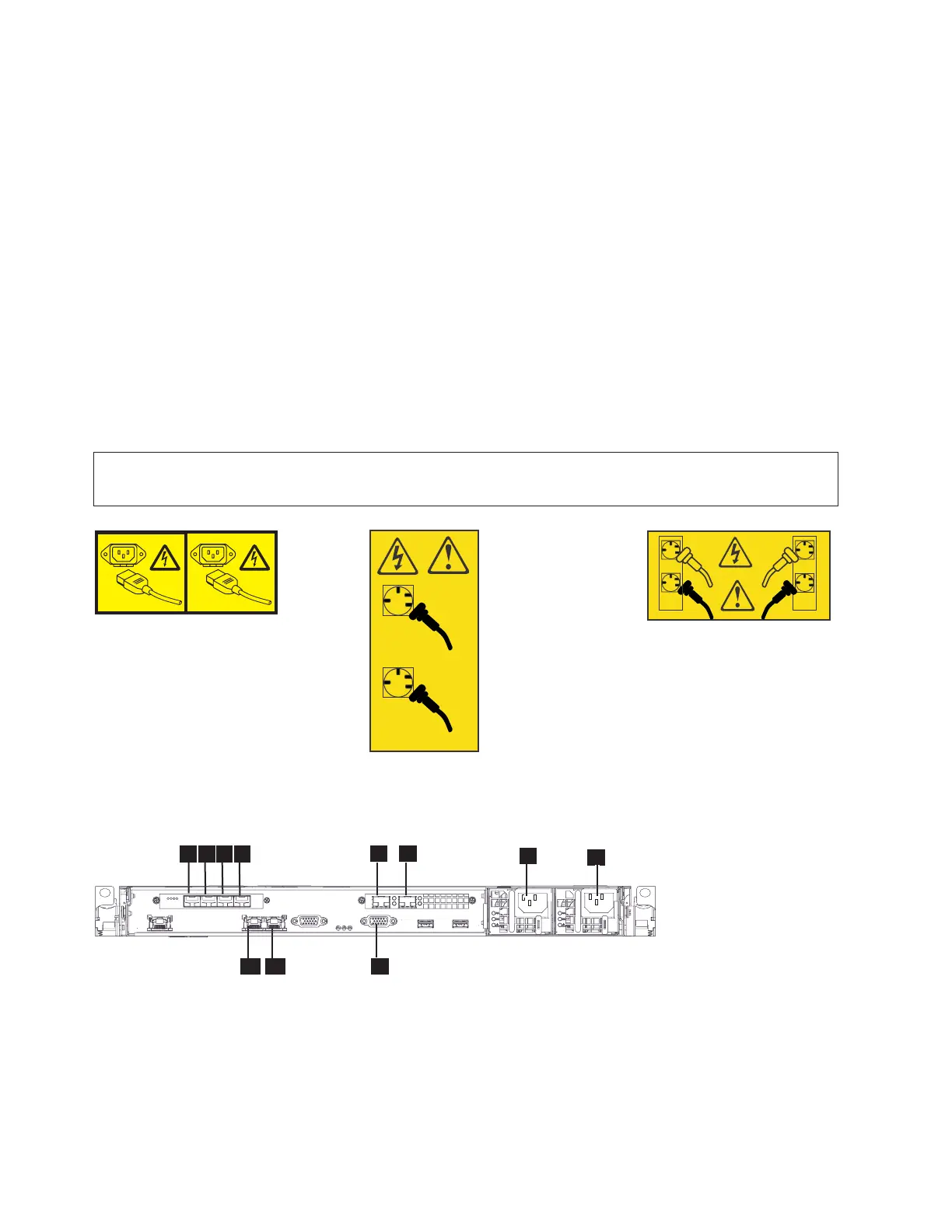

DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords. (L003)
svc00322
1
2
or
1
2
svc00735
or
1
3
4
2
svc00734
Figure 191 shows the connectors on the rear of the SAN Volume Controller 2145-CG8:
1 Fibre Channel port 1
2 Fibre Channel port 2
3 Fibre Channel port 3
4 Fibre Channel port 4
5 10 Gbps Ethernet port 1
7
5 6
8
9
10
11
3
4
1
2
svc00731_all
Figure 191. Connectors on the rear of the SAN Volume Controller 2145-CG8
