Removing the SAN Volume Controller 2145-8G4 cable retention bracket - option A:
The cable-retention bracket attaches to the back of the SAN Volume Controller 2145-8G4 node. It is
connected with the screws that already hold the rear plate of the power supply in place.
Remove the cable-retention bracket before you remove the SAN Volume Controller 2145-8G4 node from
the rack.
To remove the cable-retention bracket, perform these steps:
1. Carefully remove the two retaining screws on the right side of the power supply rear plate shown in
Figure 22.
2. Remove the bracket.
3. Replace the screws in the power supply rear plate.
Removing the SAN Volume Controller 2145-8G4 cable retention bracket - option B:
Remove the cable-retention bracket before you remove the SAN Volume Controller 2145-8G4 from the
rack.
To remove the cable-retention bracket, perform these steps:
1. Remove the securing bolt from the node side rail (shown in Figure 23 on page 39) next to the power
supply.
svc00365

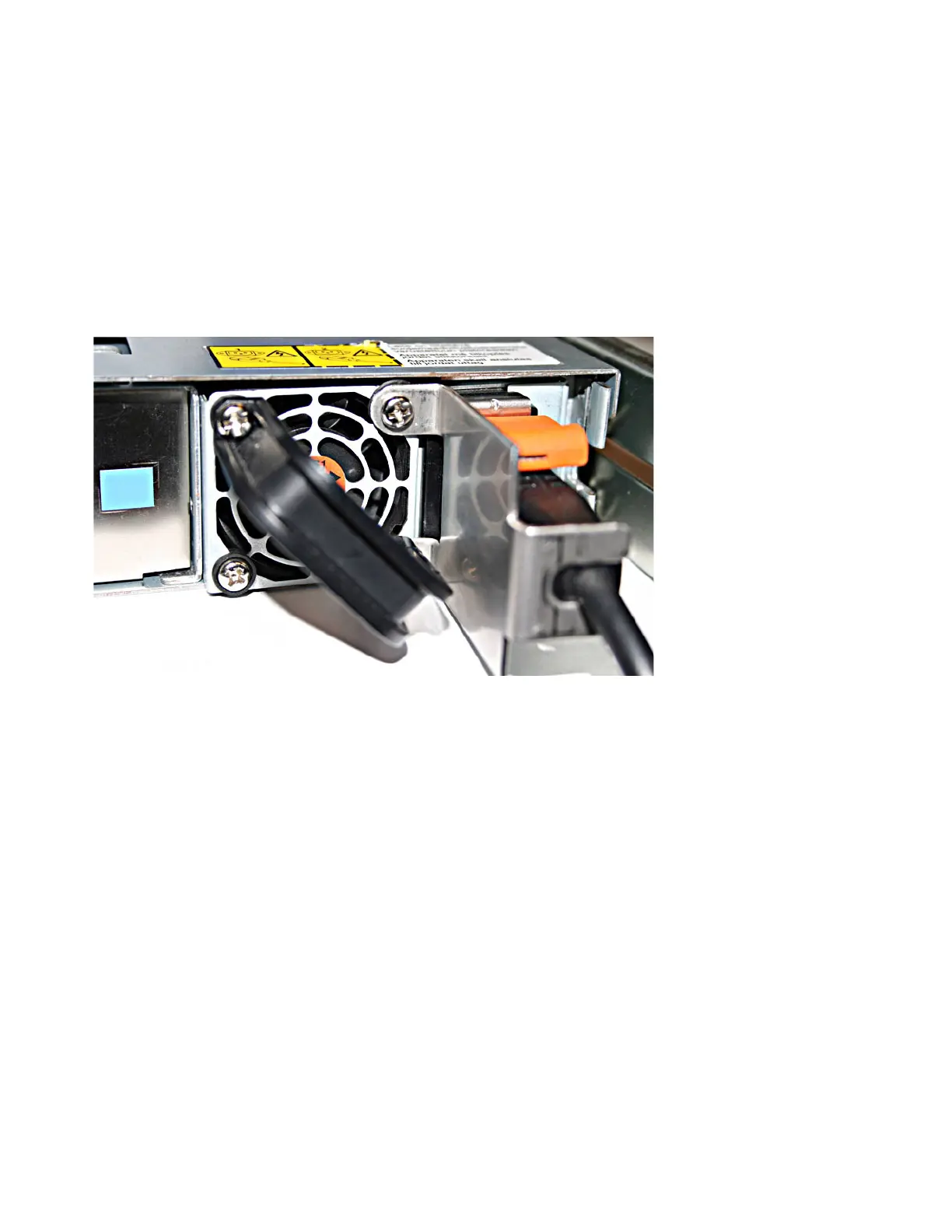

Figure 22. The SAN Volume Controller 2145-8G4 with the cable-retention bracket attached
38 IBM SAN Volume Controller Hardware Maintenance Guide
