IBM SAN Volume Controller 2145-CG8 - Power Cables for the 2145 UPS-1 U; Exploded View of the 2145 UPS-1 U Hardware; UPS-1 U Part Numbers

Table 22 lists the different parts that are labeled in Figure 8.
Table 22. 2145 UPS-1U part numbers
Assembly
index Part number Units Description
31P1392 1 2145 UPS-1U assembly
Uninterruptible power supply assembly for use with either 2145-CG8
or 2145-CF8
31P0875 1 2145 UPS-1U assembly
Uninterruptible power supply assembly for use with 2145-8F2,
2145-8F4, 2145-8G4, and 2145-8A4.
The 31P1392 FRU part might be substituted for this FRU.
-1 Not available 1 Chassis assembly
This item cannot be ordered and is supplied as part of the 2145
UPS-1U assembly.
-2 31P1393 1 Battery pack assembly
-3 Not available 1 Battery plate
This item cannot be ordered and is supplied as part of the 2145
UPS-1U assembly.
-4 31P0709 1 Front panel
-5 31P1060 1 2145 UPS-1U cable retention bracket kit
- 31P0711 1 Support rail kit, contains rails, nut clips, and screws
- 39M5376 1 Input-power cable, power distribution unit to the 2145 UPS-1U
- 39M5116 1 Main power cable for the United States
Power cables for the 2145 UPS-1U
If you do not connect the 2145 UPS-1U to a rack power-distribution unit (PDU) or redundant ac-power
switch, you must follow your country or region's power requirements to choose the appropriate power
cable for the 2145 UPS-1U.
svc00002
1
2
3
4
5

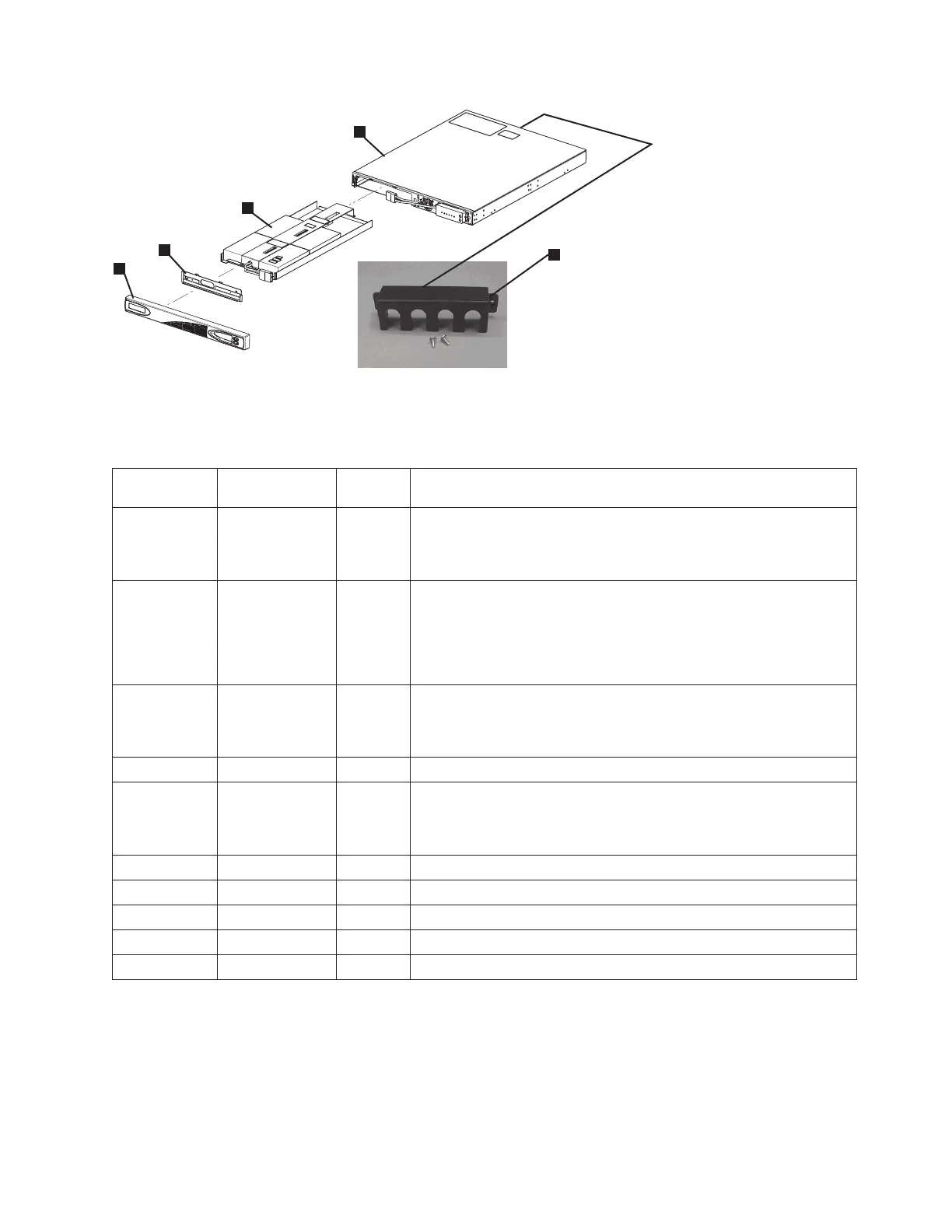

Figure 8. Exploded view of the 2145 UPS-1U hardware
Chapter 1. Parts listing 21
||||
|
|
||||
|
|
|
||||
