3. Align the two rear wheels on the node with the opening in the slides and then push the node into the
slides until the rear slide release latches (2 in Figure 40) click into place, locking the node in the
slides.
4. Reconnect the Fibre Channel and Ethernet cables. Ensure that you replace the Fibre Channel and
Ethernet cables in the same ports from which they were removed.

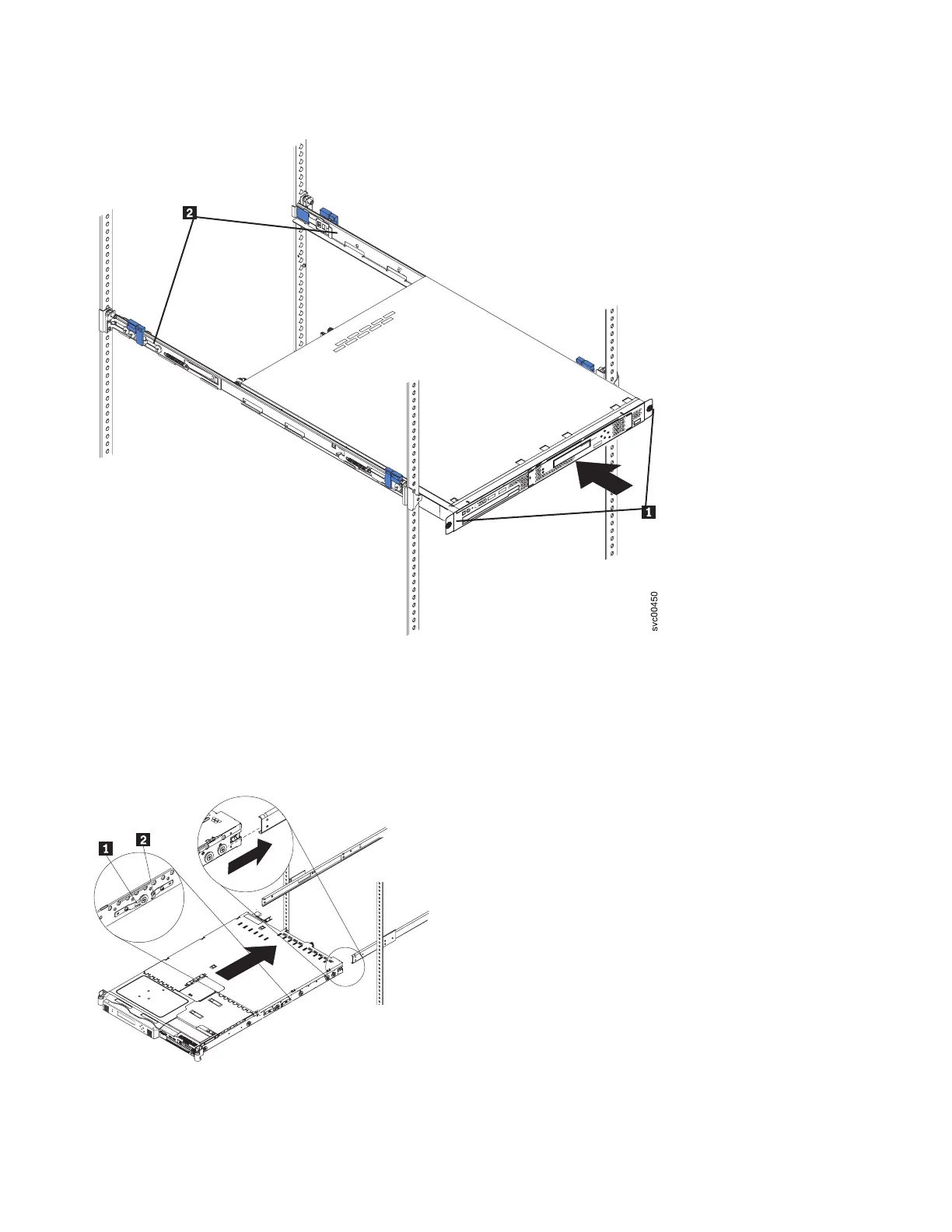

Figure 39. The captive thumbscrews that secure the node and the shipping brackets
svc00236
Figure 40. Aligning the SAN Volume Controller 2145-8G4 with the rack slides
60 IBM SAN Volume Controller Hardware Maintenance Guide
