CAUTION:
The battery contains lithium. To avoid possible explosion, do not burn or charge the battery.
Do not:
v Throw or immerse into water
v Heat to more than 100°C (212°F)
v Repair or disassemble
Exchange only with the IBM-approved part. Recycle or discard the battery as instructed by local
regulations. In the United States, IBM has a process for the collection of this battery. For information,
call 1-800-426-4333. Have the IBM part number for the battery unit available when you call. (C003)
To replace the SAN Volume Controller 2145-8A4 system-board CMOS battery, perform the following
steps:
1. Follow any special handling and installation instructions that come with the replacement battery.
2. Locate the battery on the system board.
1 in Figure 142 shows the location of the battery.
3. Insert the new battery:
a. Orient the battery so that the positive side faces up.
b. Tilt the battery so that you can insert it into the socket on the side opposite the battery clip.
c. Press the battery down into the socket, as shown in Figure 143 on page 152, until it clicks into
place. Make sure that the battery clip holds the battery securely.
1
svc00464b

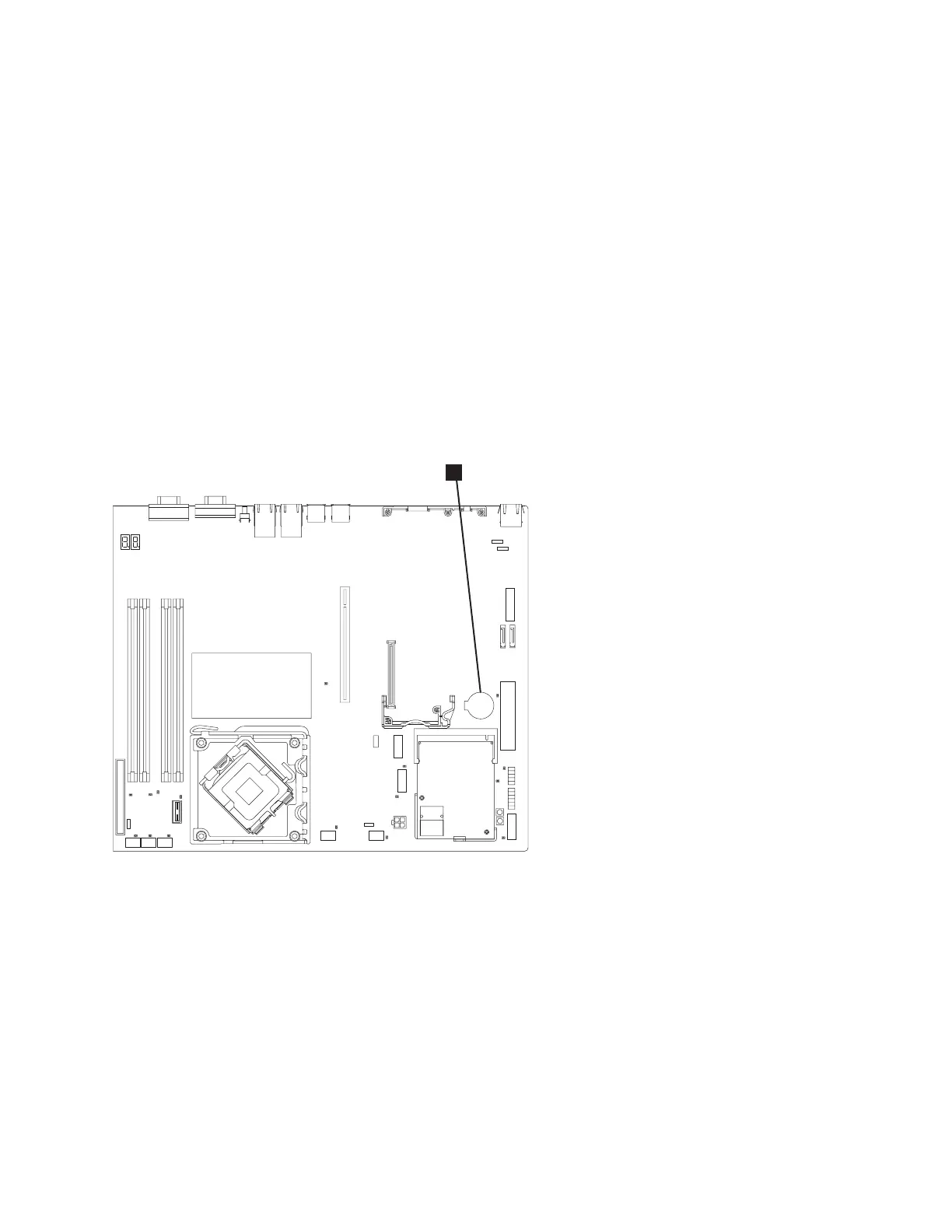

Figure 142. Locating the SAN Volume Controller 2145-8A4 CMOS battery
Chapter 2. Removing and replacing parts 151
