1
CD-RW connector
2
Light path cable connector
3
Video cable connector
4
USB cable connector
5
Fan 3 connector
6
Fan 4 connector
7
Fan 5 connector
8
Fan 6 connector
11. Replace the left air baffle, which is shown in Figure 301 on page 300. You must position the CD-RW
cable within the baffle.
svc00378
1
3
4
5
6
7
8
2

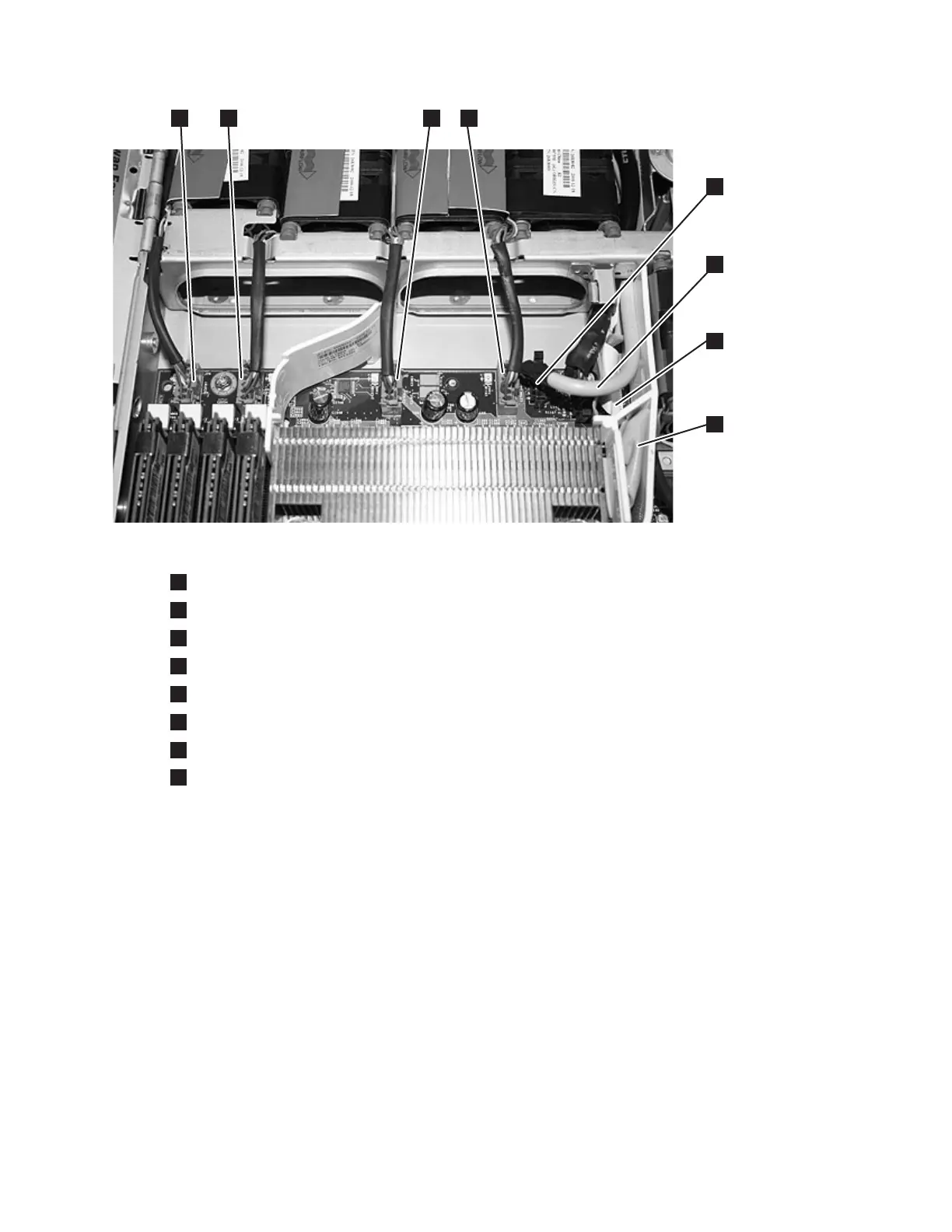

Figure 300. Connectors on the right front side of the SAN Volume Controller 2145-8G4 system board
Chapter 2. Removing and replacing parts 299
