1
Cable routing slot
2
Air baffle
3
Baffle pins
4
Baffle mounting holes
7. Replace fan 3 as shown in Figure 229 on page 231.
1
2
3
4
svc00250

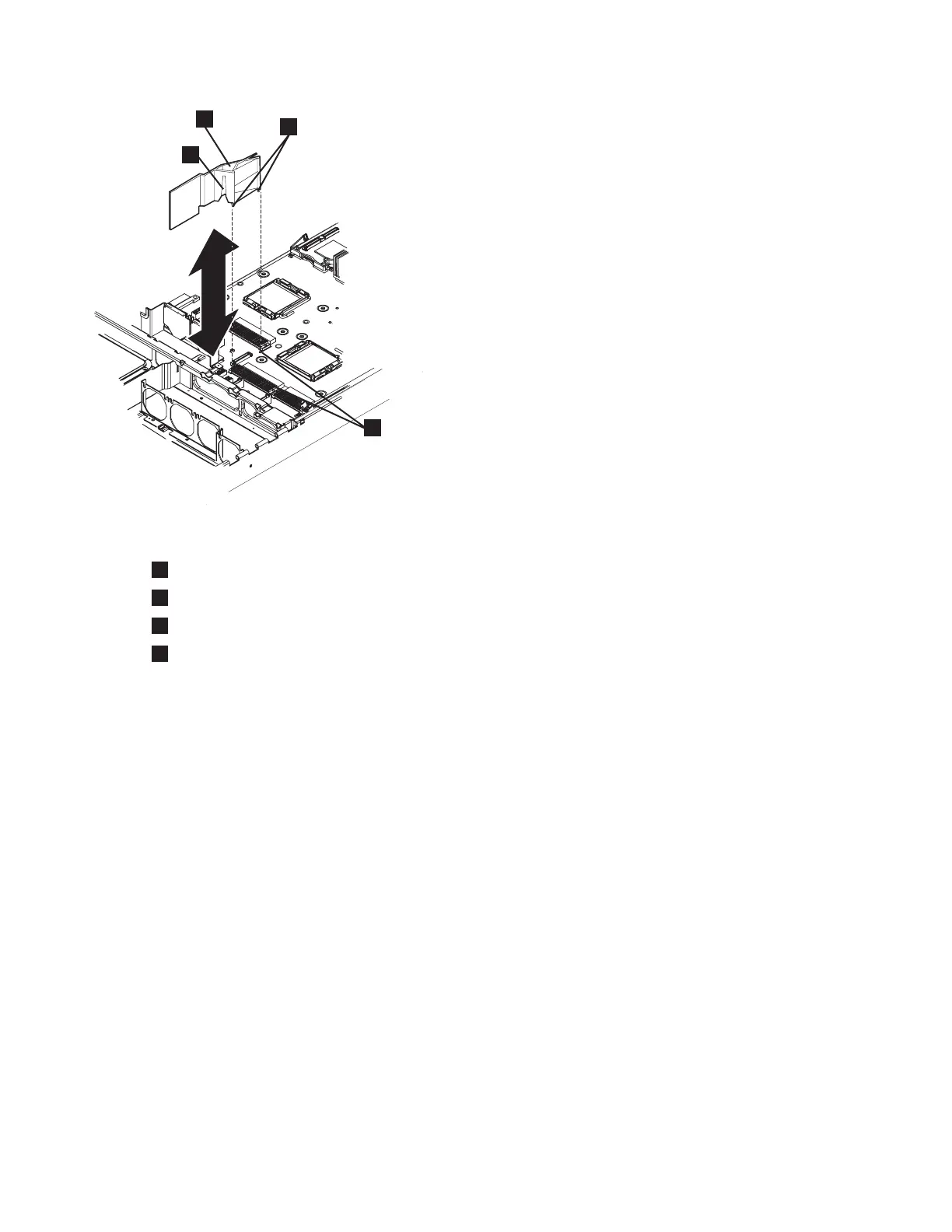

Figure 228. SAN Volume Controller 2145-8G4 air baffle
230 IBM SAN Volume Controller Hardware Maintenance Guide
