8. Replace the top cover. See “Replacing the top cover” on page 81.
9. Place the node in the rack. See “Replacing the SAN Volume Controller in a rack” on page 55.
10. Reconnect the power cable and any other cables that were removed.
11. Turn on the node.
Replacing the SAN Volume Controller 2145-8F4 or SAN Volume Controller
2145-8F2 microprocessor
The SAN Volume Controller 2145-8F4 or SAN Volume Controller 2145-8F2 must always be fitted with
both microprocessors in order to function correctly.
The documented steps to replace the SAN Volume Controller 2145-8F4 or SAN Volume Controller
2145-8F2 microprocessor assume that you:
v Removed all power from the node
v Removed the node from the rack
v Removed the top cover of the node
v Removed the microprocessor that is being replaced
Perform the following steps to replace the SAN Volume Controller 2145-8F4 or SAN Volume Controller
2145-8F2 microprocessor:
1. Touch the static-protective package that contains the new microprocessor to any unpainted metal
surface on the node.
2. Remove the microprocessor from the package.
3. Rotate the locking lever
3
from the closed position to the open position, as shown in Figure 271.
1
Microprocessor
2
Corner marks
3
Locking lever
4
Microprocessor socket
1
2
3
4
svc00127

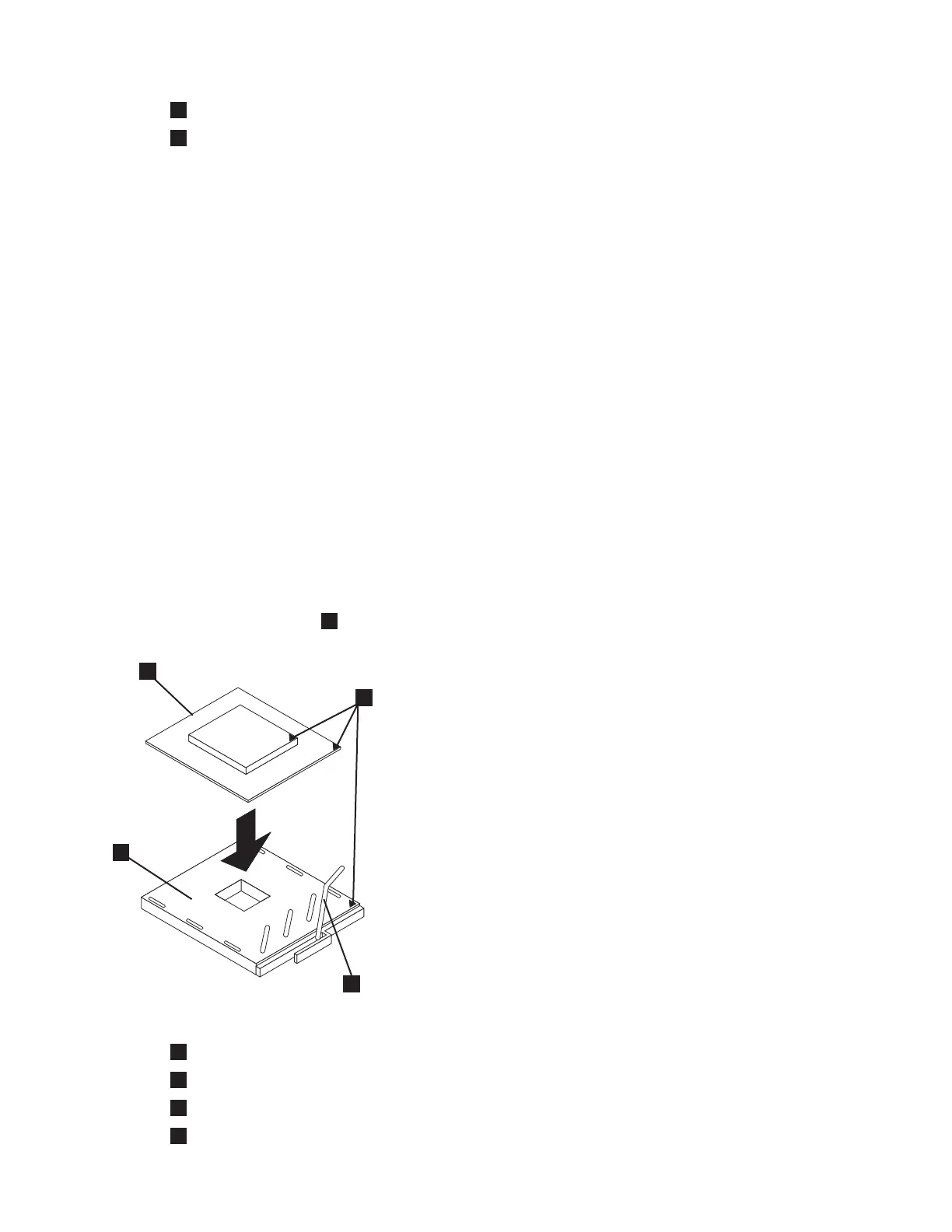

Figure 271. Microprocessor locking lever in open position
Chapter 2. Removing and replacing parts 269
