IBM SAN Volume Controller 2145-CG8 - High-Speed SAS Adapter Assembly Mounted; High-Speed SAS Adapter Assembly and High-Speed SAS Cable in the SAN Volume Controller 2145-CG8 or 2145-CF8

1 High-speed SAS cable plugged into the high-speed SAS adapter assembly
2 High-speed SAS adapter assembly
9. Disconnect the high-speed SAS cable from the high-speed SAS adapter.
10. Remove the cable from the blue bulkhead clip behind the disk backplane, as shown in Figure 199 on
page 203.
1
2

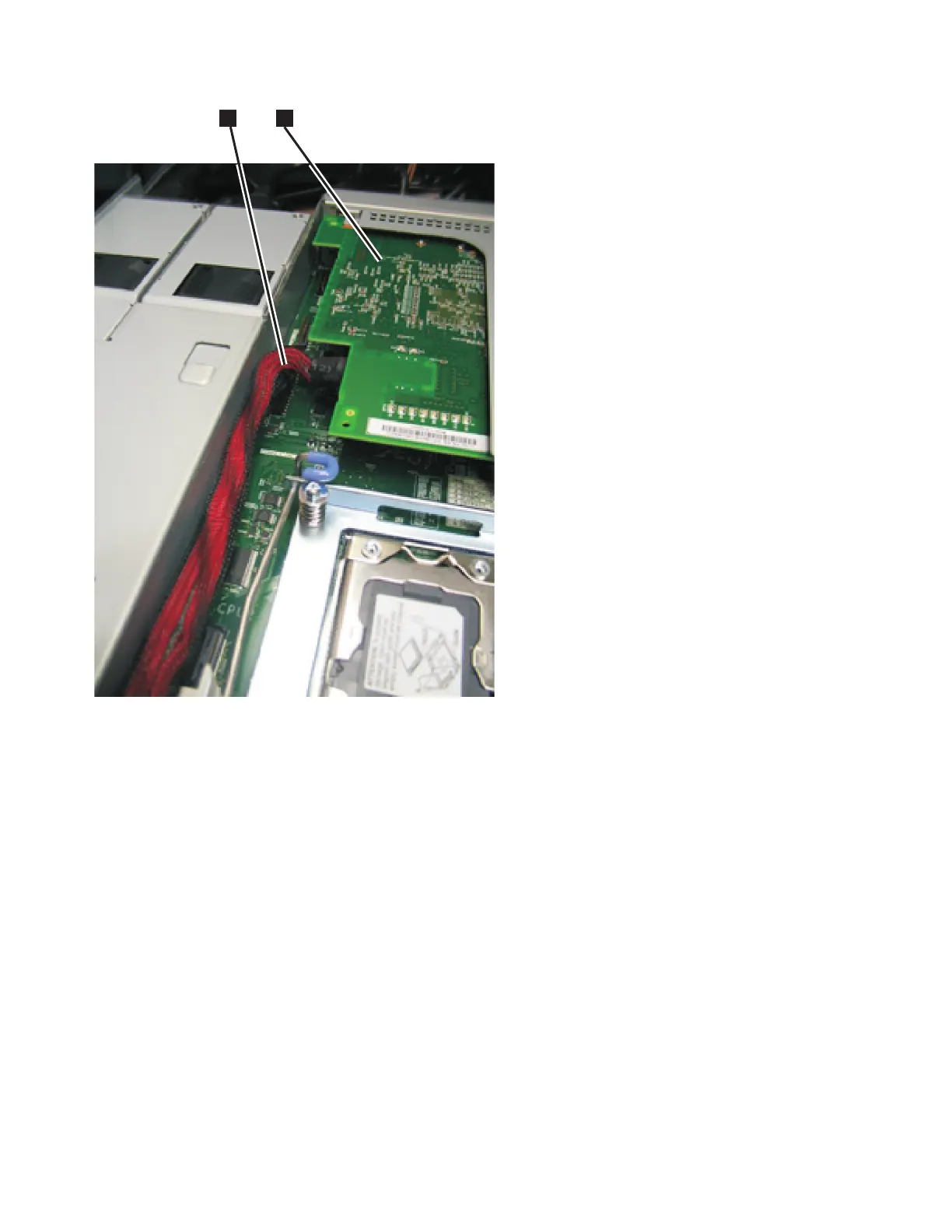

Figure 198. High-speed SAS adapter assembly and high-speed SAS cable in the SAN Volume Controller 2145-CG8 or
2145-CF8
