The cable-retention bracket attaches to the back of the SAN Volume Controller 2145-8G4 node. It is
connected with the screws that already hold the rear plate of the power supply in place.
Replace the SAN Volume Controller 2145-8G4 cable retention bracket after you replace the node in the
rack.
To attach the bracket to the rack rail, perform the following steps:
1. With the node powered off and the power cable removed, loosen and remove the two screws
1
on
the right side of the rear plate that covers the power supply fan unit, as shown in Figure 30.
2. Rotate the power supply handle out of the way.
3. Insert the power cable.
4. Position the cable-retention bracket so that the power cable runs through the slot in the bracket. Align
the screw holes in the bracket with the holes that are in the rear plate where you removed the two
screws.
5. Replace the top screw.
6. Move the power supply handle back into place over the retention bracket, and replace the lower
screw so that it holds the power supply handle, cable-retention bracket, and power supply rear plate
in place.
Replacing the cable-retention bracket - option B:
Replace the SAN Volume Controller 2145-8G4 cable retention bracket after you replace the node in the
rack.
Install the SAN Volume Controller 2145-8G4 cable retention bracket after you install the node in the rack.
To attach the bracket to the rack rail, perform the following steps:
1. Install the power cable into the power supply.
svc00364
1

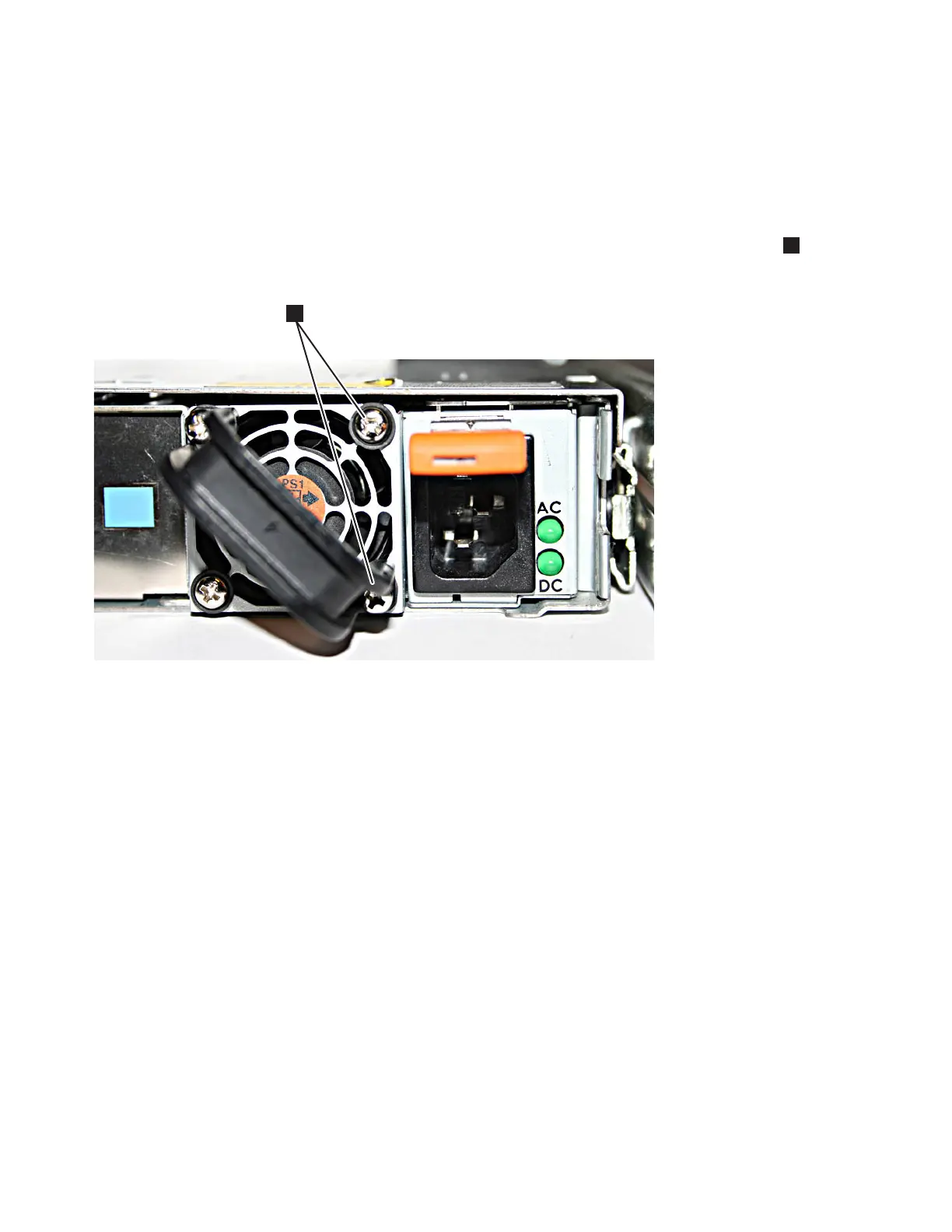

Figure 30. The SAN Volume Controller 2145-8G4 before you attach the cable-retention bracket
44 IBM SAN Volume Controller Hardware Maintenance Guide
