9. Disengage the power cable, which terminates in connector P5, from the retention-clip
1
, which is
shown in Figure 151.
10. Remove the screw
3
, shown in Figure 152 on page 161, that holds the power supply to the rear of
the chassis.
svc00483

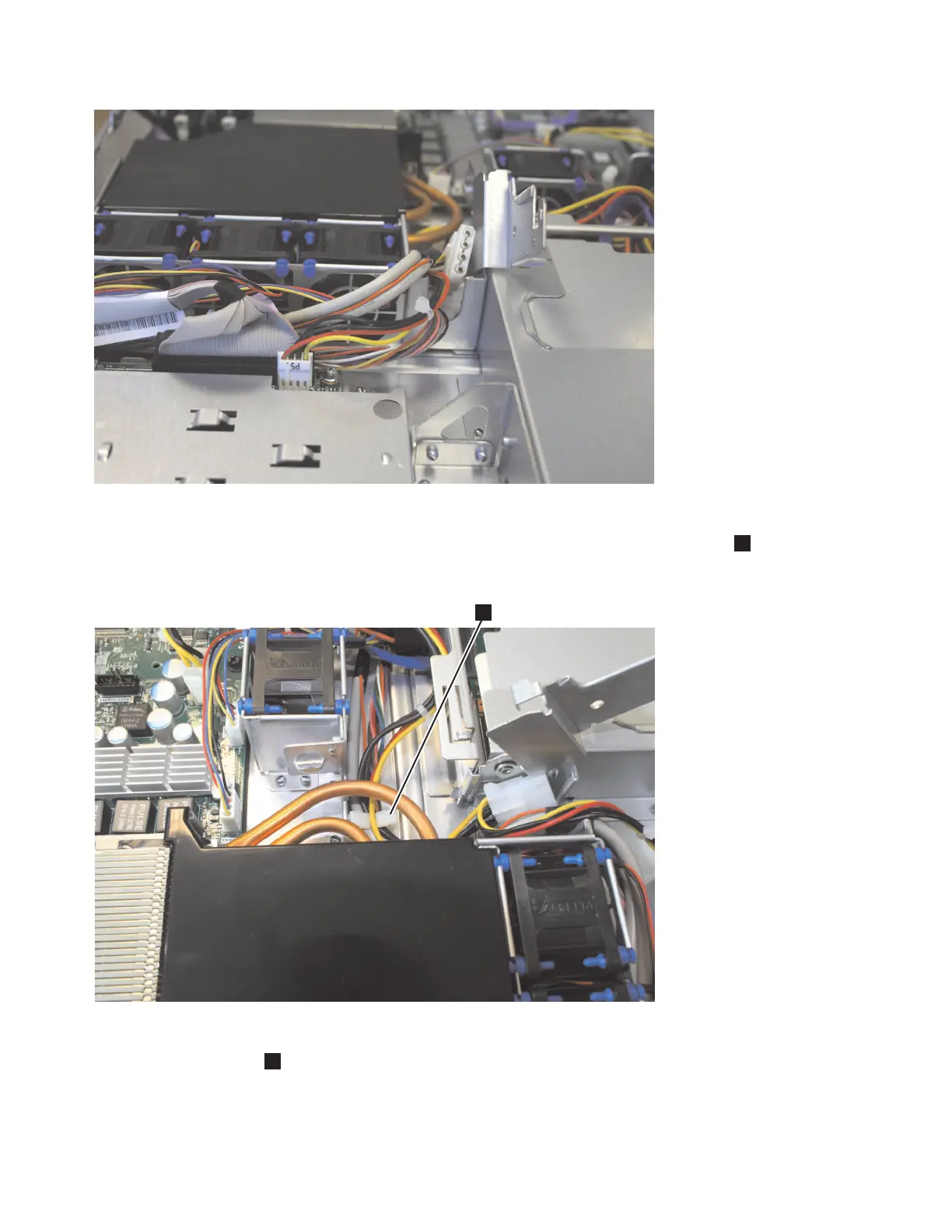

Figure 150. Power P5 connector on the SAN Volume Controller 2145-8A4 power supply
svc00486
1
Figure 151. The retention clip for the SAN Volume Controller 2145-8A4 power-supply cables
160 IBM SAN Volume Controller Hardware Maintenance Guide
