5. Slide the node into the rack until it snaps into place.
6. Connect all cables to the back of the node.
Removing the cable-retention bracket
The SAN Volume Controller models 2145-CG8, 2145-CF8, 2145-8A4, 2145-8G4, 2145-8F4, and 2145-8F2
provide a cable-retention bracket, which ensures that the node does not mistakenly become unplugged
from the uninterruptible power supply.
Removing the SAN Volume Controller 2145-CG8 or 2145-CF8 cable-retention
brackets
You can remove the two SAN Volume Controller 2145-CG8 or 2145-CF8 cable-retention brackets when
removing the power cords from the node.

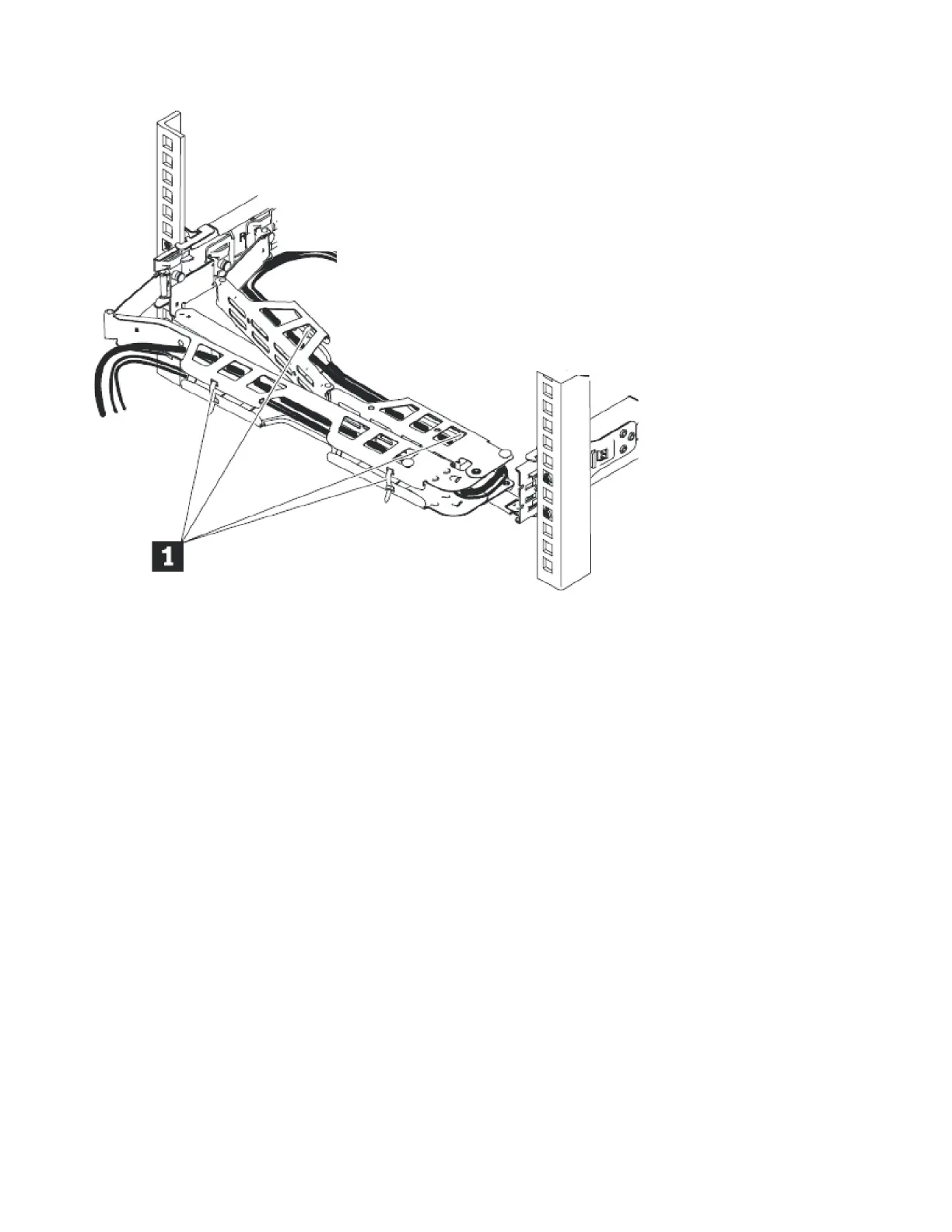

Figure 17. Connecting and routing the cables
34 IBM SAN Volume Controller Hardware Maintenance Guide
|
|
