Removing the 2145-CG8 or 2145-CF8 support rails
This topic describes how to remove the 2145-CG8 or 2145-CF8 support rails.
Perform the following steps to remove the 2145-CG8 or 2145-CF8 support rails:
1. Remove the 2145-CG8 or 2145-CF8 node, as described in “Removing the 2145-CG8 or 2145-CF8 from a
rack” on page 46.
2. Remove the cable-management arm, as described in “Removing the 2145-CG8 and 2145-CF8
cable-management arm” on page 26.
3. Remove the front end of the slide rails, as shown in Figure 42.
To remove the slide rails from the front of the rack, push up the front tab and slide out the front latch.
Press the blue button and lift up slightly on the front of the slide rail. Remove the slide rail from the
rack.
4. Remove the rear end of the slide rails, as shown in Figure 42.
Front of rack

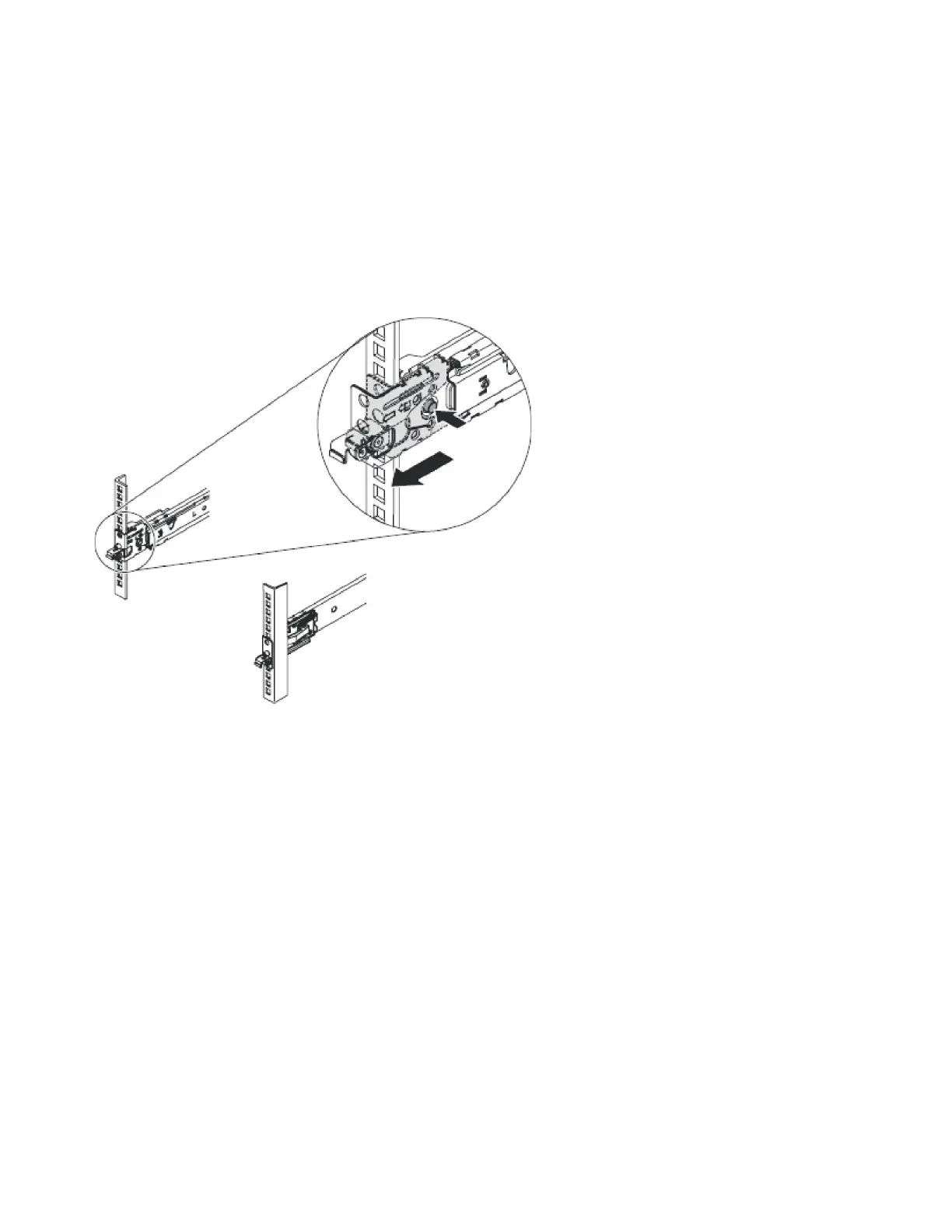

Figure 42. Removing the front end of the slide rails
62 IBM SAN Volume Controller Hardware Maintenance Guide
