7. Remove the CMOS battery, as shown in Figure 134:
a. Use a fingernail to press the top of the battery clip away from the battery. The battery pops up
when released.
b. Use your thumb and index finger to lift the battery from the socket.
Removing the SAN Volume Controller 2145-8G4 CMOS battery
This topic describes how to remove the SAN Volume Controller 2145-8G4 CMOS battery.
CAUTION:
The battery contains lithium. To avoid possible explosion, do not burn or charge the battery.
Do not:
v Throw or immerse into water
v Heat to more than 100°C (212°F)
v Repair or disassemble
Exchange only with the IBM-approved part. Recycle or discard the battery as instructed by local
regulations. In the United States, IBM has a process for the collection of this battery. For information,
call 1-800-426-4333. Have the IBM part number for the battery unit available when you call. (C003)
1
svc00464b

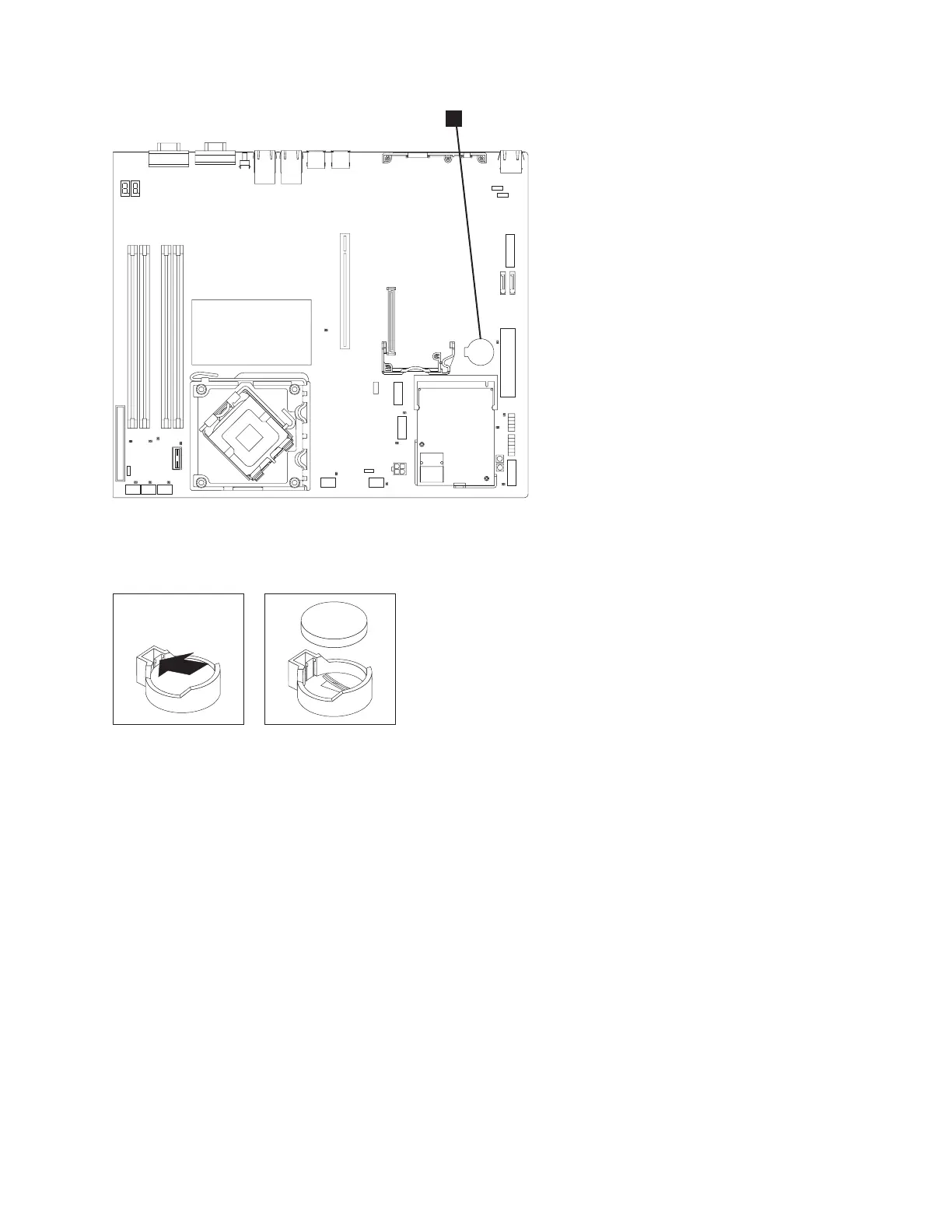

Figure 133. Locating the SAN Volume Controller 2145-8A4 CMOS battery
svc00495
Figure 134. Removing the SAN Volume Controller 2145-8A4 CMOS battery
Chapter 2. Removing and replacing parts 145
