6: ALLOCATION NUMBERS
OPENNET CONTROLLER USER’S MANUAL 6-11
M8122 100-msec Clock
M8122 always generates clock pulses in 100-msec increments,
whether M8001 is on or off, with a duty ratio of 1:1 (50 msec on
and 50 msec off).
M8123 10-msec Clock
M8123 always generates clock pulses in 10-msec increments,
whether M8001 is on or off, with a duty ratio of 1:1 (5 msec on
and 5 msec off).
M8124 Timer/Counter Preset Value Changed
When timer or counter preset values are changed in the CPU module RAM, M8124 turns on. When a user program is
transferred to the CPU from WindLDR or when the changed timer/counter preset value is cleared, M8124 turns off.
M8125 In-operation Output
M8125 remains on while the CPU is running.

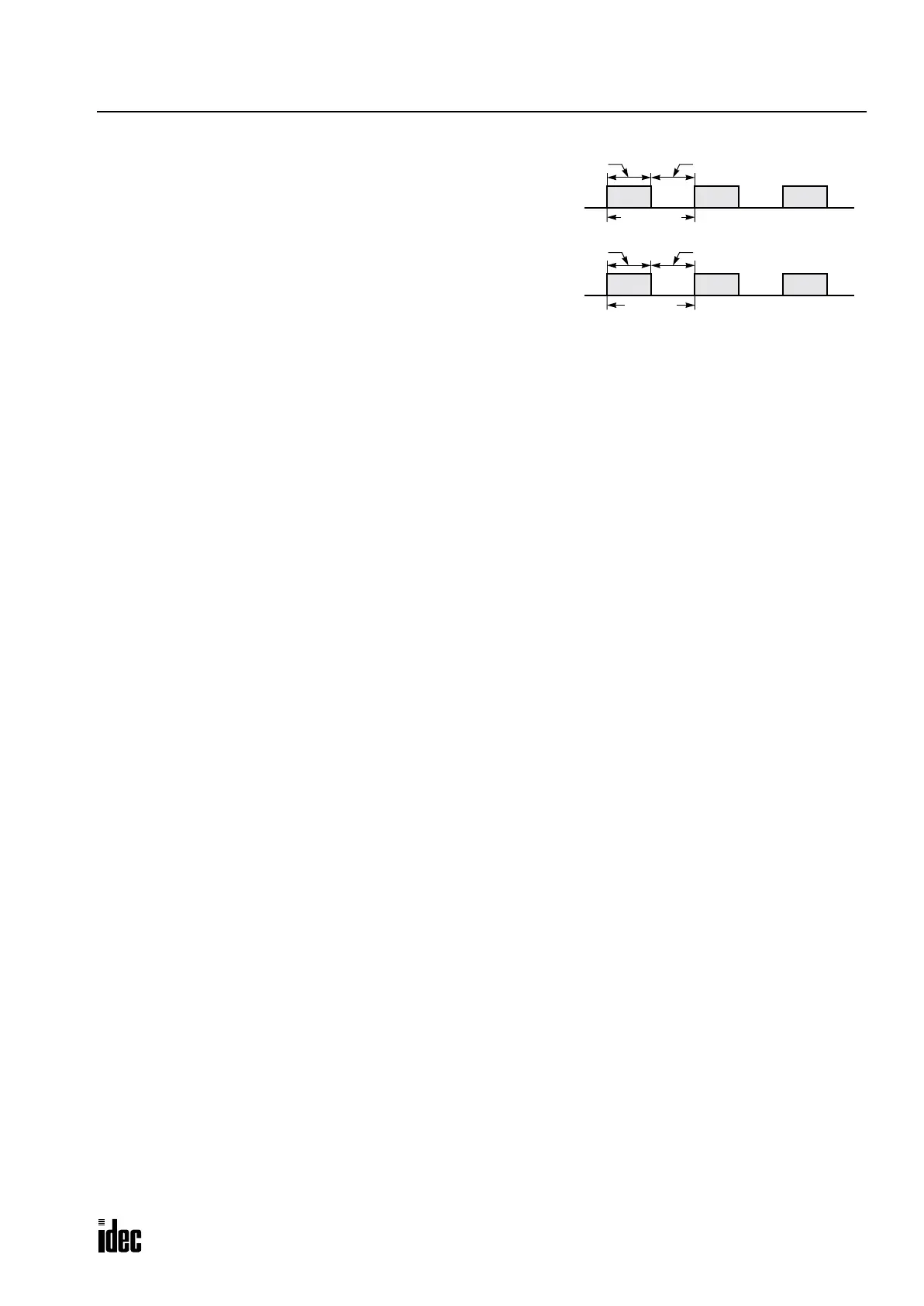

M8122
50 msec
100 msec
50 msec
M8123
5 msec
10 msec
5 msec
