IDEC OpenNet series User Manual

2: MODULE SPECIFICATIONS
OPENNET CONTROLLER USER’S MANUAL 2-15

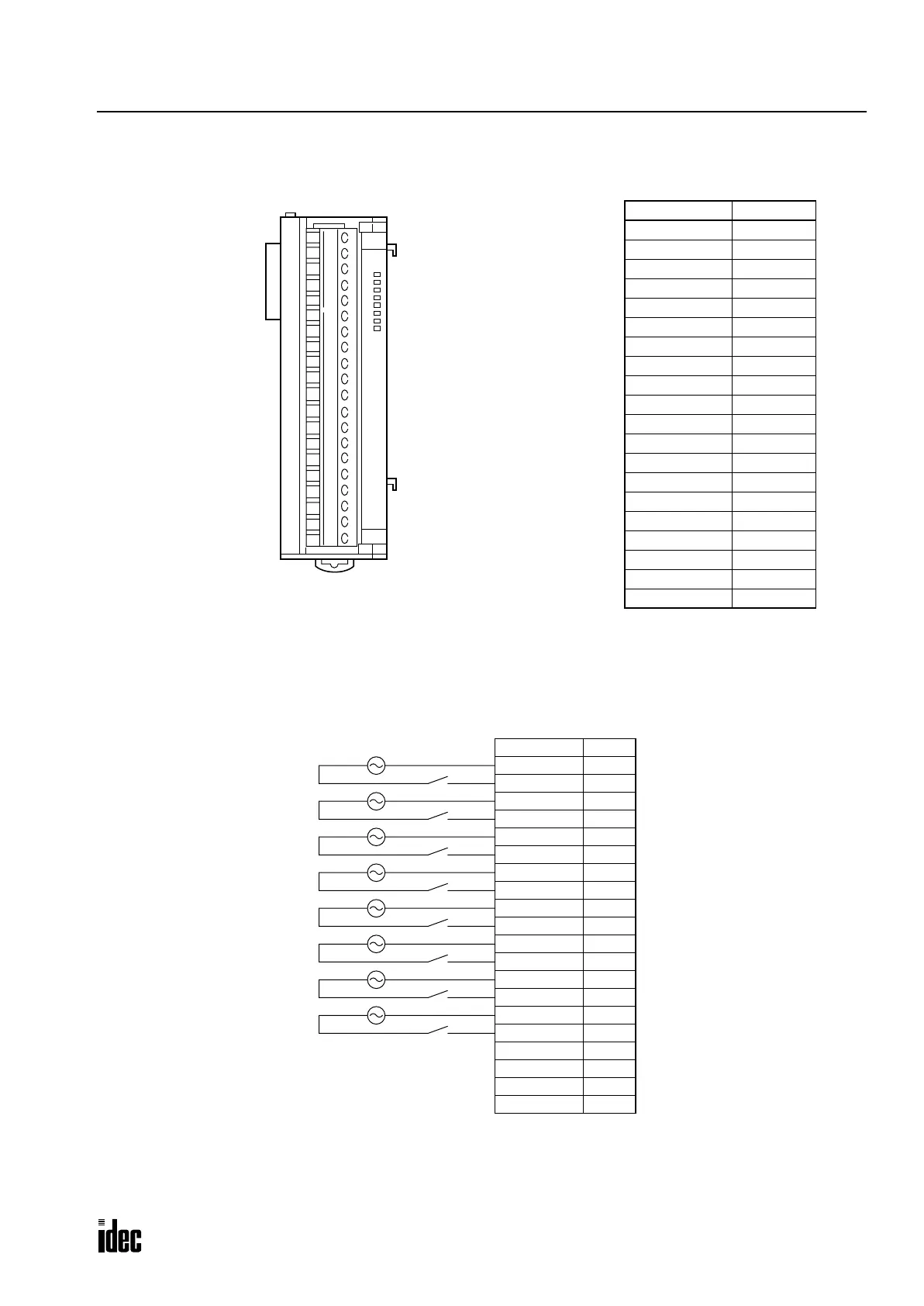

FC3A-N08A11 (8-point AC Input Module) — Screw Terminal Type
Applicable Connector: SMSTB2.5/20-ST-5.08 (Phoenix Contact)
Wiring Schematic
• COM terminals are not connected together internally.
• Terminal numbers are marked on the terminal block label on the input module.
• For wiring precautions, see page 3-5.
0
AC
IN
1
2
3
4
5
6
7
Terminal No. Name
1 COM0
2I0
3 COM1
4I1
5 COM2
6I2
7 COM3
8I3
9 COM4
10 I4
11 COM5
12 I5
13 COM6
14 I6
15 COM7
16 I7
17 NC
18 NC
19 NC
20 NC
Terminal No. Name
1 COM0
2I0
3 COM1
4I1
5 COM2
6I2
7 COM3
8I3
9 COM4
10 I4
11 COM5
12 I5
13 COM6
14 I6
15 COM7
16 I7
17 NC
18 NC
19 NC
20 NC
