2: MODULE SPECIFICATIONS
OPENNET CONTROLLER USER’S MANUAL 2-19
16-point Transistor Protect Source Output Module Specifications

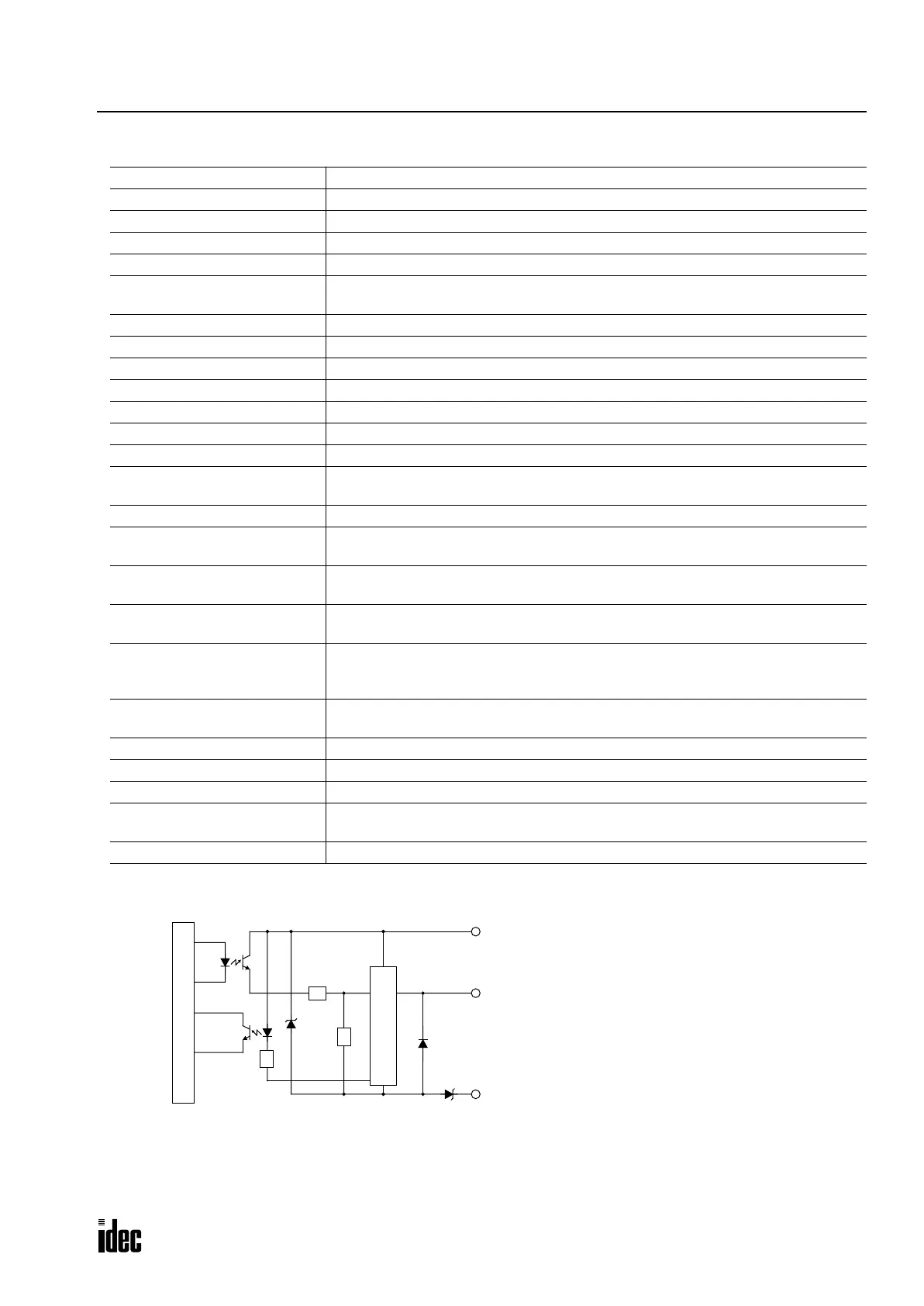

Output Internal Circuit
Type No. FC3A-T16P1
Terminal Arrangement See Terminal Arrangement chart on page 2-24.
Rated Load Voltage 24V DC
Operating Load Voltage Range 19 to 30V DC
Rated Load Current 0.5A per output point
Maximum Load Current
0.625A per output point (at 30V DC)
5A per common line (at 30V DC)
Voltage Drop (ON Voltage) 1V maximum (voltage between COM and output terminals when output is on)
Inrush Current 5A maximum
Leakage Current 0.1 mA maximum
Clamping Voltage 39V±1V
Maximum Lamp Load 10W
Inductive Load L/R = 10 msec (30V DC, 0.5 Hz)
External Current Draw 100 mA maximum, 24V DC (power voltage at the –V terminal)
Isolation
Between output terminal and internal circuit: Photocoupler isolated
Between output terminals: Not isolated
Connector on Mother Board Screw Terminal Block MSTBA2.5/20-G5.08 (Phoenix Contact)
Connector Insertion/Removal
Durability
100 times minimum
Internal Current Draw
All outputs ON: 70 mA (24V DC)
All outputs OFF: 40 mA (24V DC)
Output Delay
Turn ON time: 500 µsec maximum
Turn OFF time: 500 µsec maximum
Protecting Operation
Protection is activated by element heating when a short circuit occurs.
Only the overloaded output is forced off.
Not in compliance with IEC1131 “Protected outputs” and “Short-circuit proof outputs”
Restarting Method
Remove the cause of overload, then the output protection is reset automatically.
Reset time: 10 msec maximum
Short-circuit Current 2.5A maximum at power voltage 24V DC, load resistance 10 mΩ maximum
Allowable Short-circuit Current 60 sec at power voltage 24V DC, load resistance 10 mΩ maximum
Maximum Modules 7 transistor protect source output modules can be mounted at the maximum
CPU Module Operation
Special data register D8030 to D8036, assigned to 1st through 7th module, stores 1
to indicate the slot where an overload occurred. The ERROR LED also turns on.
Weight (approx.) 220g
COM (+)
Output
–V
Overload
Output Protect Device
Signal
Internal Circuit
COM terminals are connected together internally.
