2: MODULE SPECIFICATIONS
2-18 OPENNET CONTROLLER USER’S MANUAL

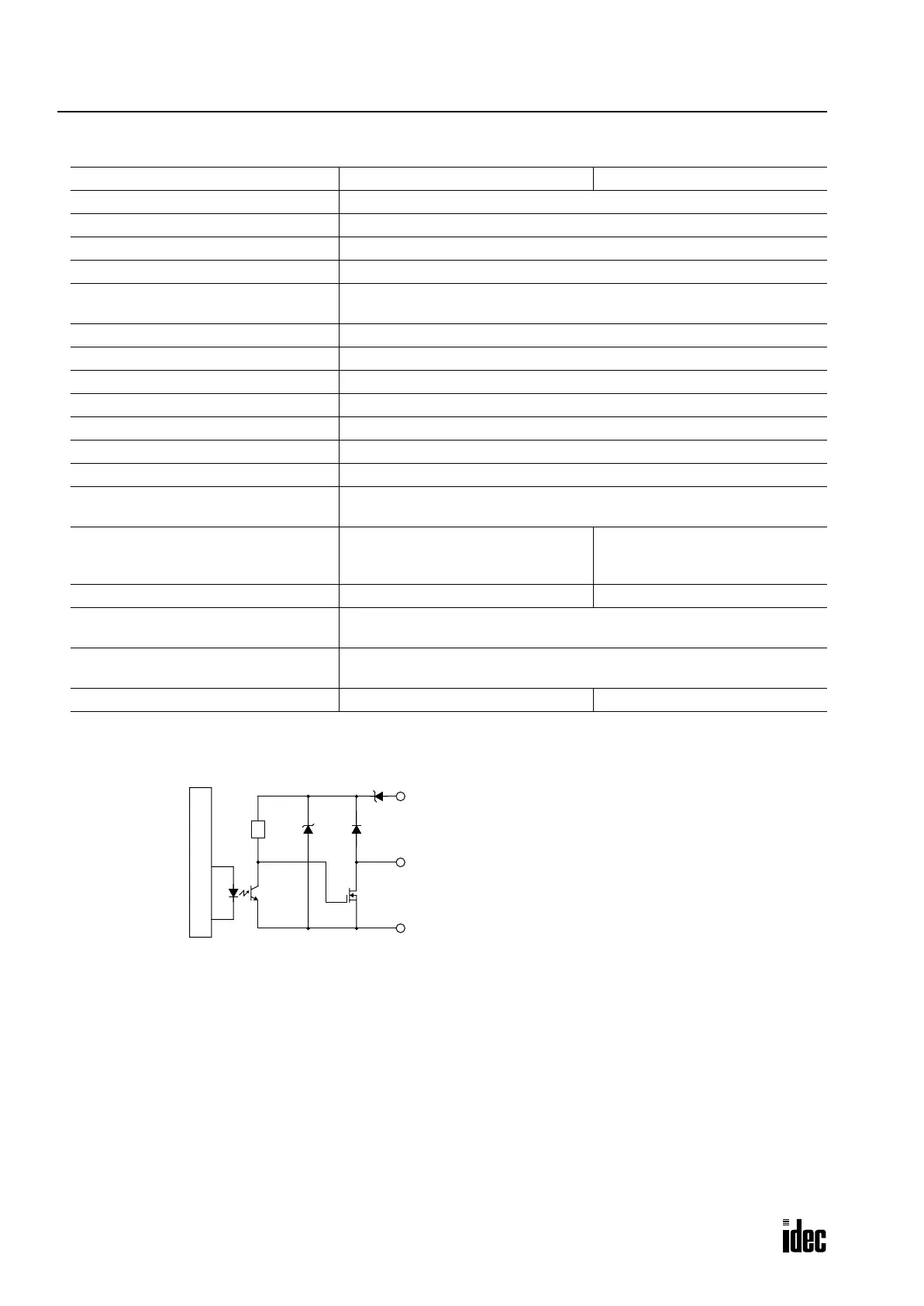

16-point Transistor Sink Output Module Specifications
Output Internal Circuit
Type No. FC3A-T16K1 FC3A-T16K3
Terminal Arrangement See Terminal Arrangement charts on pages 2-24 and 2-25.
Rated Load Voltage 24V DC
Operating Load Voltage Range 19 to 30V DC
Rated Load Current 0.5A per output point
Maximum Load Current
0.625A per output point (at 30V DC)
5A per common line (at 30V DC)
Voltage Drop (ON Voltage) 1V maximum (voltage between COM and output terminals when output is on)
Inrush Current 5A maximum
Leakage Current 0.1 mA maximum
Clamping Voltage 39V±1V
Maximum Lamp Load 10W
Inductive Load L/R = 10 msec (30V DC, 0.5 Hz)
External Current Draw 100 mA maximum, 24V DC (power voltage at the +V terminal)
Isolation
Between output terminal and internal circuit: Photocoupler isolated
Between output terminals: Not isolated
Connector on Mother Board
Screw Terminal Block
MSTBA2.5/20-G5.08
(Phoenix Contact)
Nylon Connector
B10PS-VH × 2
(J.S.T. Mfg.)
Connector Insertion/Removal Durability 100 times minimum 50 times minimum
Internal Current Draw
All outputs ON: 60 mA (24V DC)
All outputs OFF: 20 mA (24V DC)
Output Delay
Turn ON time: 500 µsec maximum
Turn OFF time: 500 µsec maximum
Weight (approx.) 220g 190g
+V
Output
Internal Circuit
COM (–)
COM terminals are connected together internally.
