24: REMOTE I/O SYSTEM
24-22 OPENNET CONTROLLER USER’S MANUAL
Error Codes for Remote Bus and Local Bus Errors

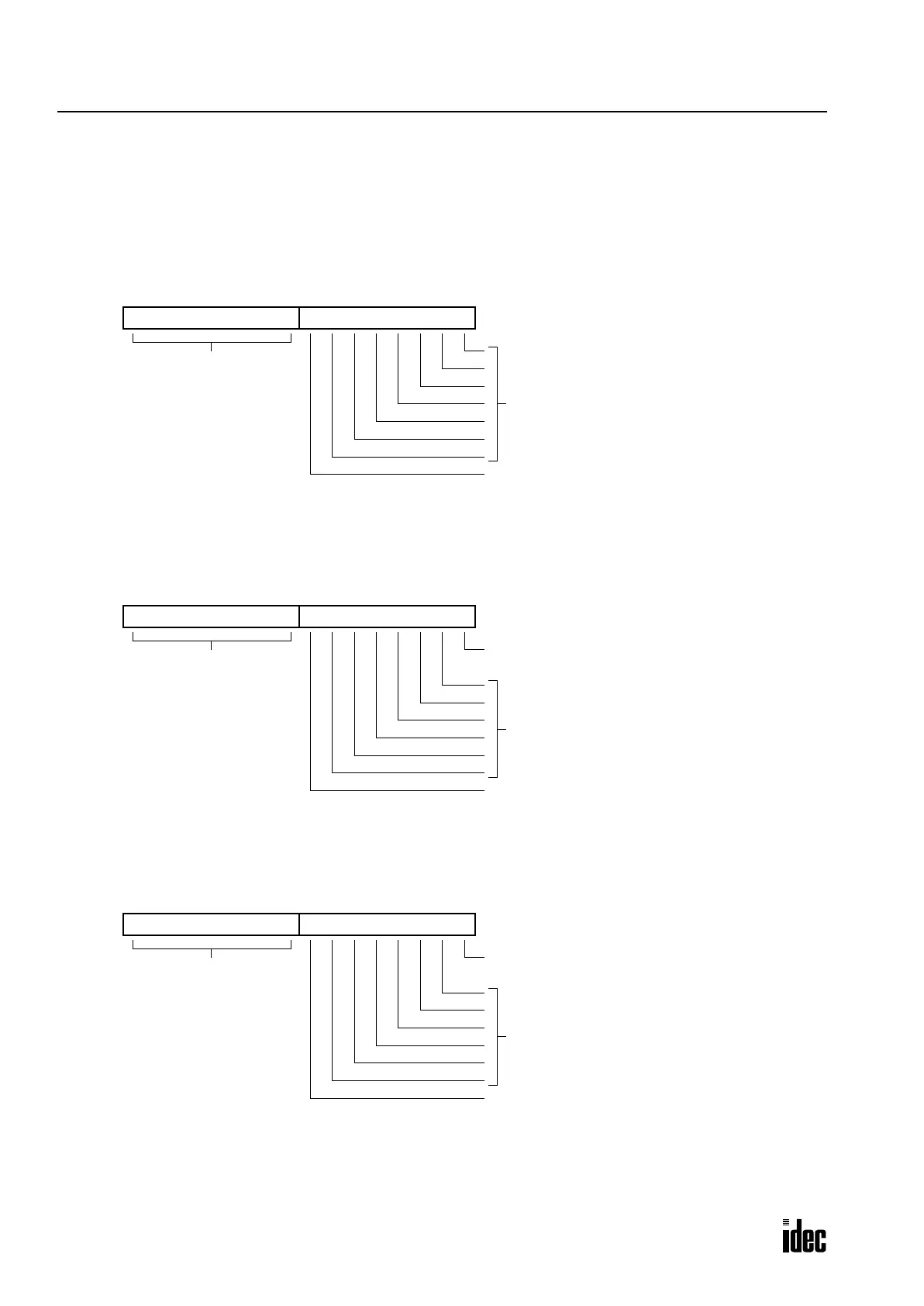

The Add_Error_Info provides the coded error location for remote or local bus errors. The exact error position is only indi-
cated if no interface error occurred. In the case of an interface error, the defective bus segment will be indicated. Bit 7 indi-
cates whether an interface error occurred. The meanings of bits 0 to 6 will also change. This results in three different states
which have the following bit combinations in the Add_Error_Info.
Bus segment in which
the error occurred
Add_Error_Info
Bit 7 = 0 No interface error occurred
Position of the located error
Bus segment in which
the error occurred
Add_Error_Info
Bit 7 = 1 An interface error occurred
Bit 1-6 = 0
Bit 0 = 0 Error at the outgoing
remote bus interface
Bus segment in which
the error occurred
Add_Error_Info
Bit 7 = 1 An interface error occurred
Bit 1-6 = 0
Bit 0 = 1 Error at the outgoing
local bus interface
7654321015 14 13 12 11 10 9 8
7654321015 14 13 12 11 10 9 8
7654321015 14 13 12 11 10 9 8
Error at the outgoing remote bus interface
No interface error occurred
Error at the outgoing local bus interface
