2: MODULE SPECIFICATIONS
OPENNET CONTROLLER USER’S MANUAL 2-21
32-point Transistor Sink Output Module Specifications

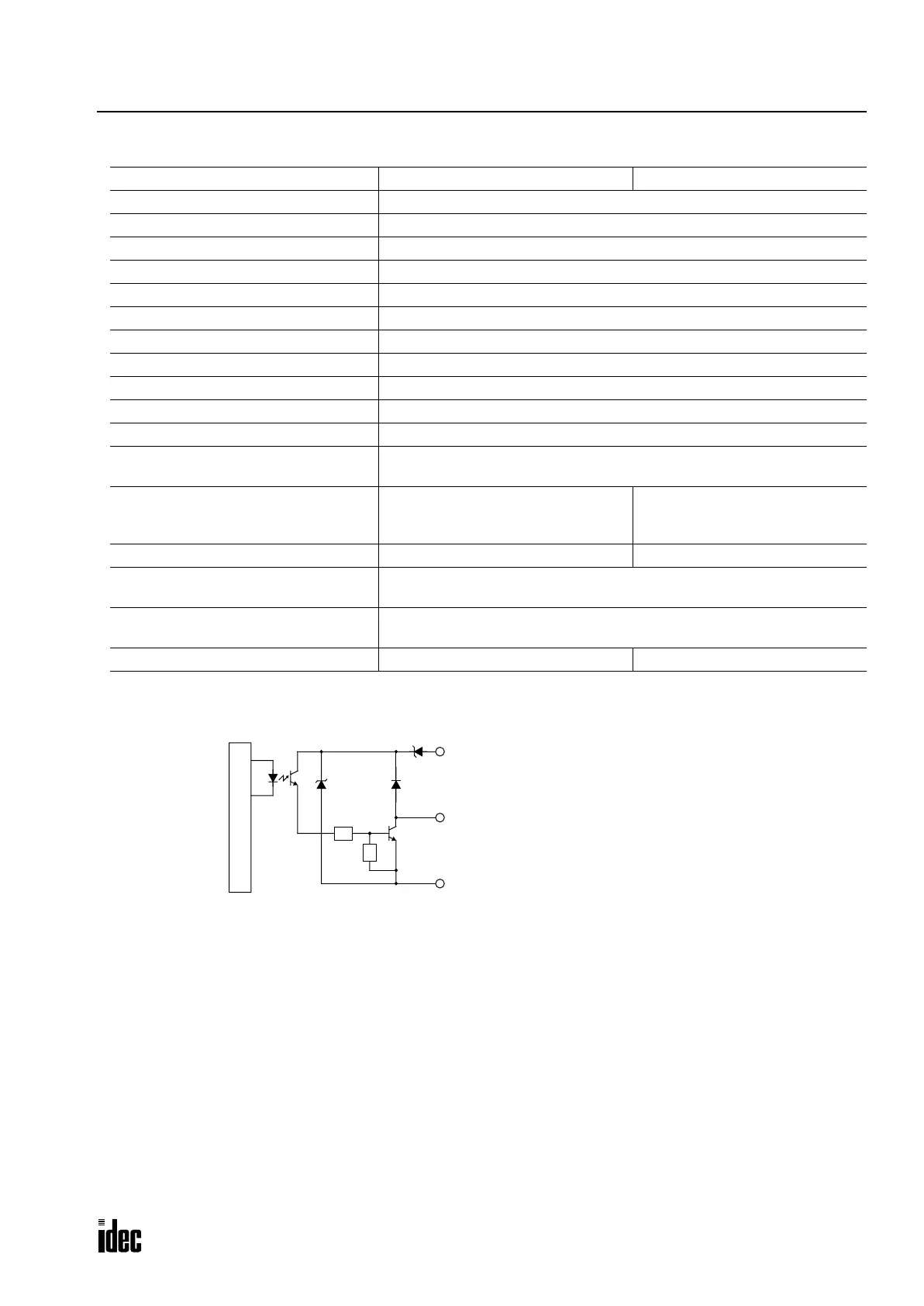

Output Internal Circuit
Type No. FC3A-T32K4 FC3A-T32K5
Terminal Arrangement See Terminal Arrangement charts on pages 2-26 and 2-27.
Rated Load Voltage 24V DC
Operating Load Voltage Range 20.4 to 27.6V DC
Rated Load Current 0.1A per output point
Maximum Load Current 0.115A per output point (at 27.6V DC)
Voltage Drop (ON Voltage) 1V maximum (voltage between COM and output terminals when output is on)
Inrush Current 3A maximum
Leakage Current 0.1 mA maximum
Clamping Voltage 39V±1V
Inductive Load L/R = 20 msec (27.6V DC, 1 Hz)
External Current Draw 100 mA maximum, 24V DC (power voltage at the +V terminal)
Isolation
Between output terminal and internal circuit: Photocoupler isolated
Between output terminals: Not isolated
Connector on Mother Board
Nylon Connector
BS18P-SHF-1AA × 2
(J.S.T. Mfg.)
Fujitsu Connector
FCN-365P040-AU
(Fujitsu)
Connector Insertion/Removal Durability 50 times minimum 500 times minimum
Internal Current Draw
All outputs ON: 90 mA (24V DC)
All outputs OFF: 40 mA (24V DC)
Output Delay
Turn ON time: 500 µsec maximum
Turn OFF time: 500 µsec maximum
Weight (approx.) 190g 200g
+V
Output
Internal Circuit
COM (–)
COM terminals are connected together internally.
