27: T
ROUBLESHOOTING
27-8
O
PEN
N
ET
C
ONTROLLER
U
SER
’
S
M
ANUAL

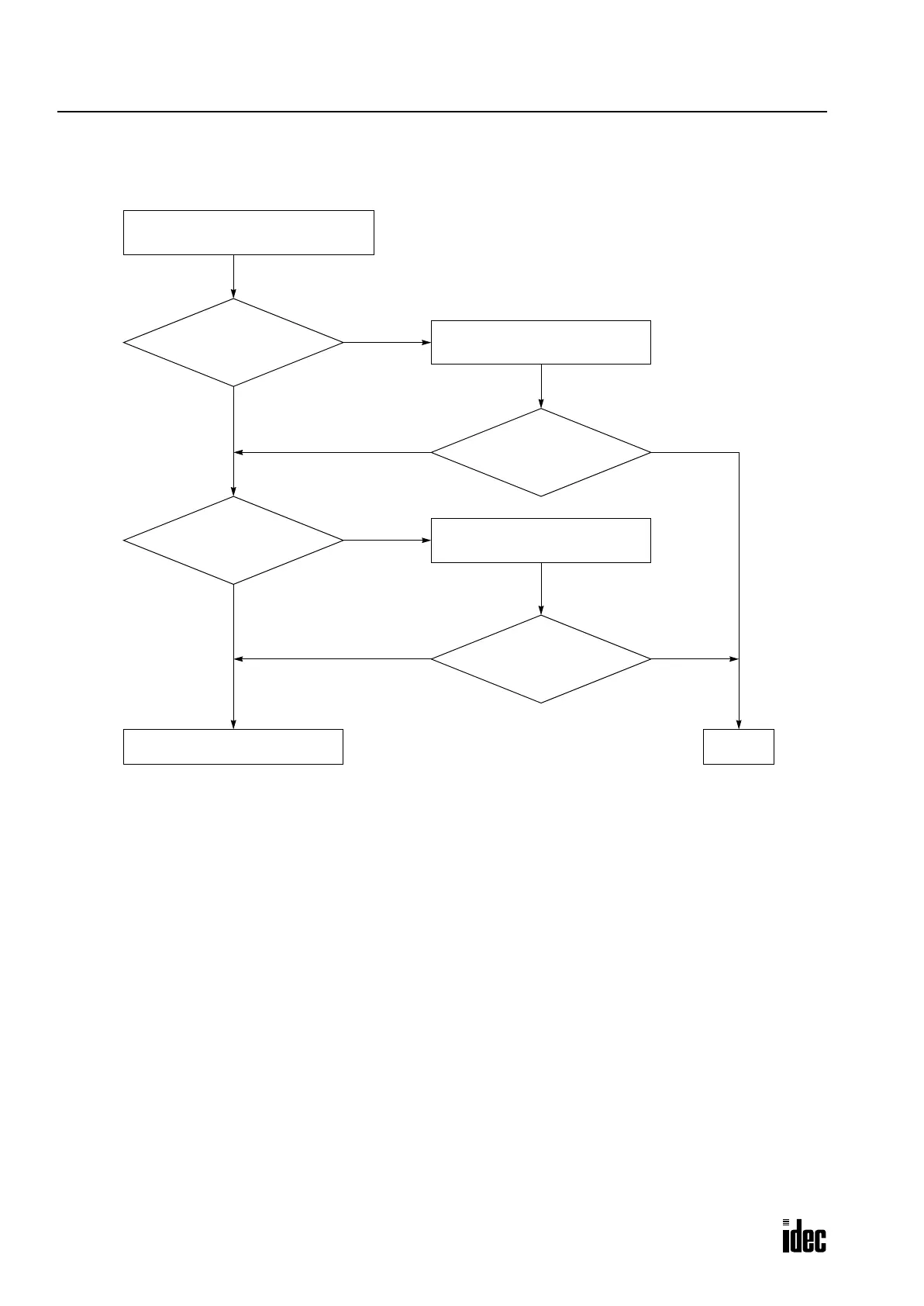

Troubleshooting Diagram 1
Is power supplied?
Is the power voltage
24V DC?
The POWER LED does not go on.
Is the POWER LED on?
Supply power
.
END
Call IDEC for assistance.
Is the POWER LED on?
NO
NO
YES
YES
NO
YES
NO
YES
Supply the rated voltage.
DC power type:
24V DC
