27: TROUBLESHOOTING

27-10 OPENNET CONTROLLER USER’S MANUAL

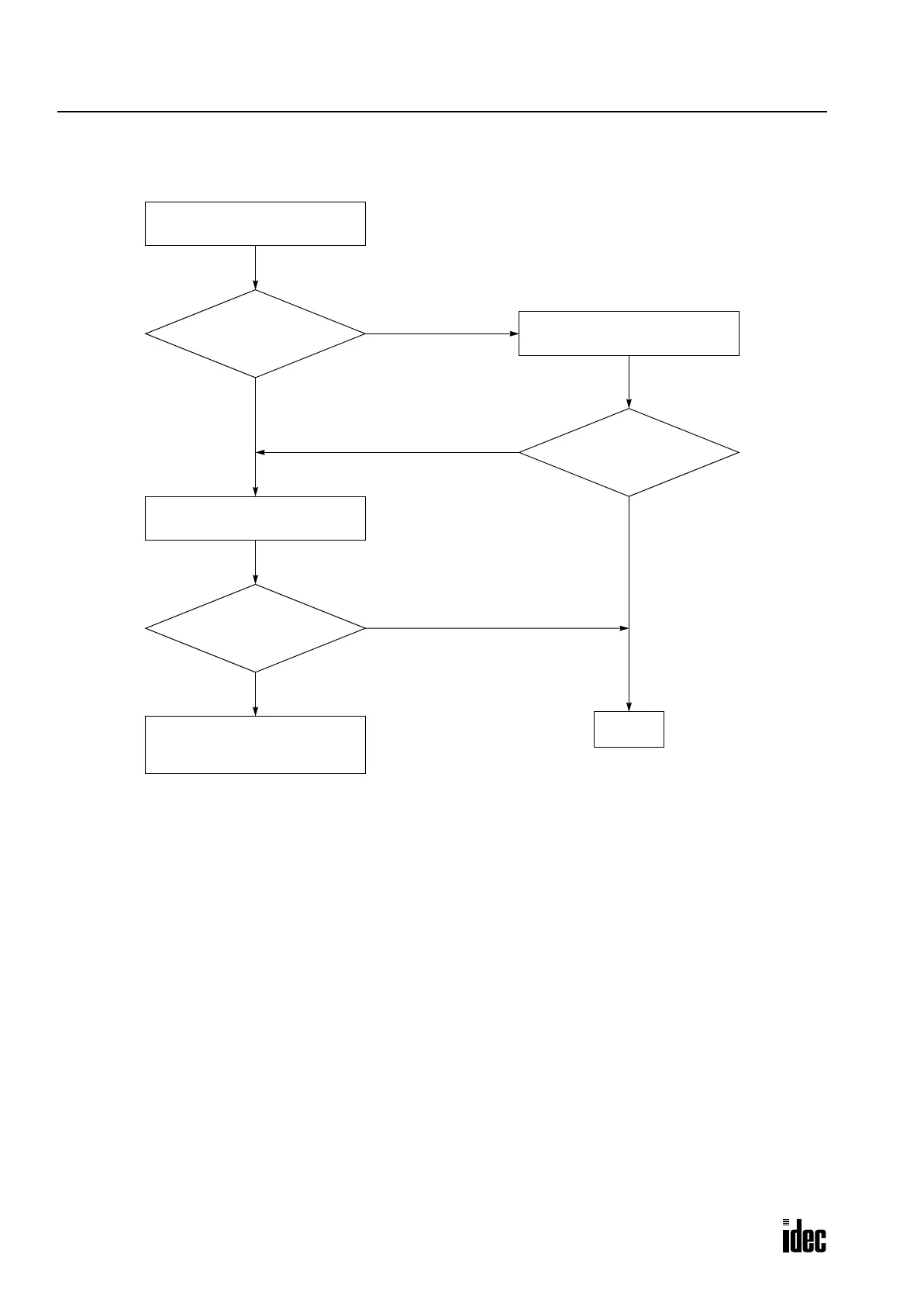

Troubleshooting Diagram 3

Is the ERROR LED

turned off?

The ERROR LED is on.

Clear error codes using WindLDR.

See Note below.

END

YES

See page 27-3.

Identify the error code and correct

the error.

YES

Note: Temporary errors can be cleared to restore normal operation by clearing

error codes from WindLDR. See page 27-2.

Is the power voltage

24V DC?

Is the ERROR LED

turned off?

Supply the rated voltage.

DC power: 24V DC
