27: TROUBLESHOOTING

27-12 OPENNET CONTROLLER USER’S MANUAL

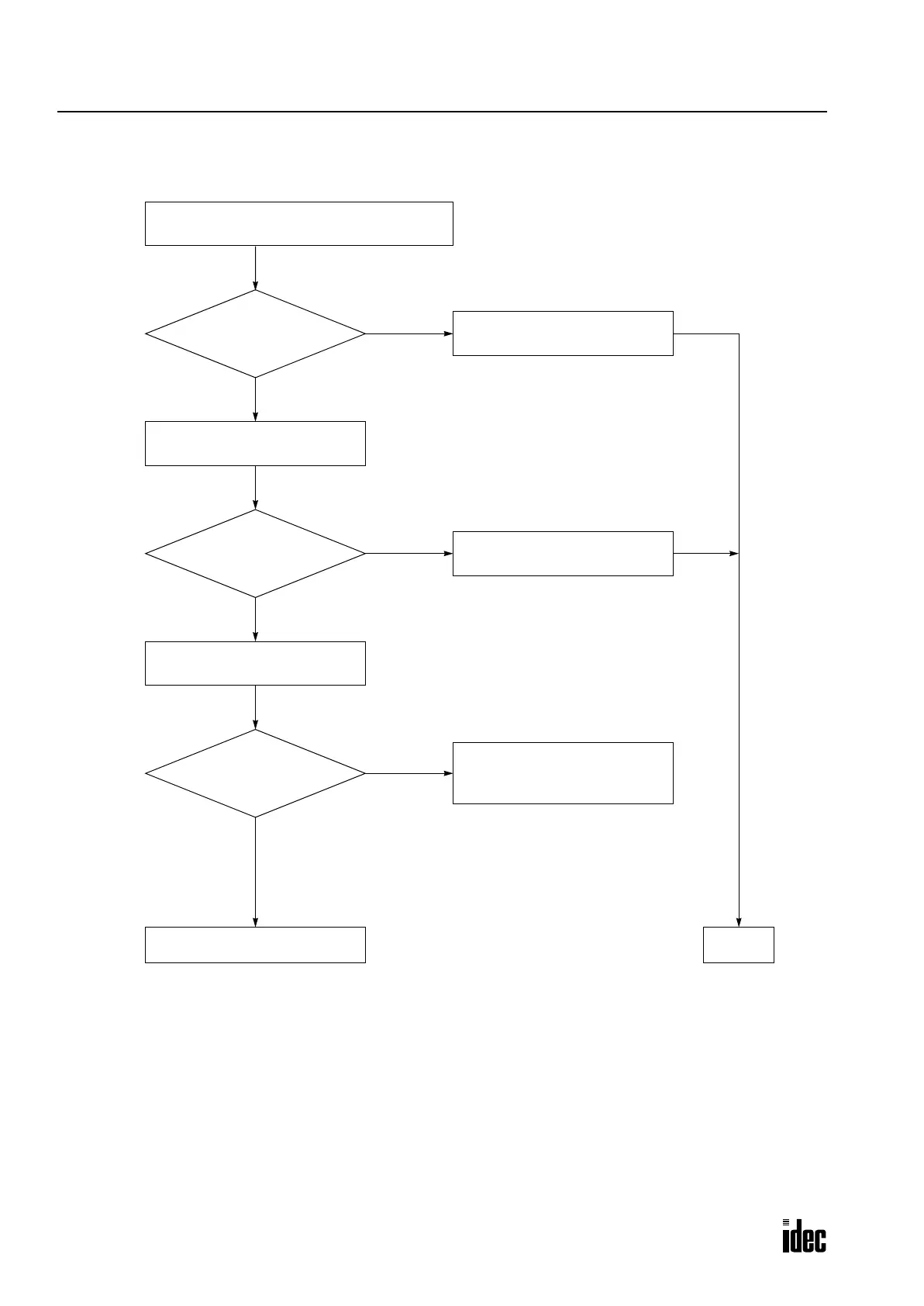

Troubleshooting Diagram 5

Does the monitored

output turn on and

off?

YES

Call IDEC for assistance.

Are output allocation

numbers correct?

Is the output LED on?

Make sure of correct output

wiring.

Correct the program.

The output circuit in the output

module is damaged.

Replace the output module.

END

Output module does not operate normally.

Check the output allocation

numbers.

Monitor the output using

WindLDR.
