APPENDIX
OPENNET CONTROLLER USER’S MANUAL A-5

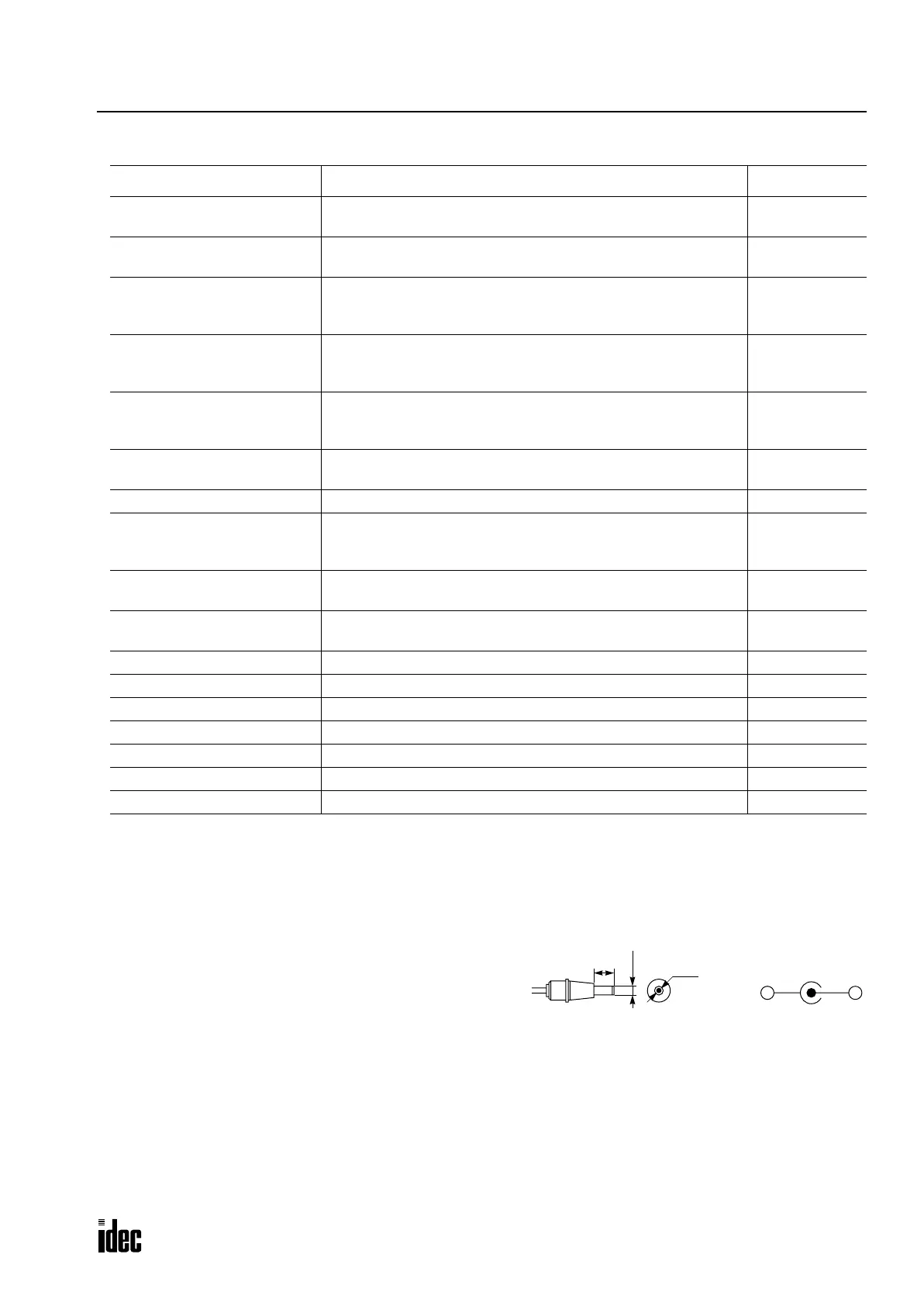

Cables and Accessories
AC Adapter
When using the computer link cable 6C to connect a computer to the RS485 terminals on the OpenNet Controller CPU
module, an AC adapter is required to power the RS232C/RS485 converter on the computer link cable 6C. AC adapter out-
put capacity: 5 to 6.5V DC, 4W
The RS232C/RS485 converter FC2A-MD1 for 1:N computer
link communication is powered by 24V DC source or an AC
adapter with 9V DC, 350mA output capacity.
The output plug of the AC adapter applicable to both the com-
puter link cable 6C and the RS232C/RS485 converter is shown
on the right.
Name Function Type No.
End Plates
For mounting on both ends of OpenNet Controller module assembly
(a pair of end plates are supplied with the CPU module)
FC9Z-W1
Modem Cable 1C
(3m/9.84 ft. long)
Used to connect a modem to the OpenNet Controller RS232C port,
with D-sub 25-pin male connector to connect to modem
FC2A-KM1C
Computer Link Cable 4C
(3m/9.84 ft. long)
Used to connect an IBM PC to the OpenNet Controller RS232C
port (1:1 computer link), with D-sub 9-pin female connector to con-
nect to computer
FC2A-KC4C
Computer Link Cable 6C
(2m/6.56 ft. long)
Used to connect an IBM PC to the OpenNet Controller RS485 ter-
minals (1:1 computer link), with D-sub 9-pin female connector to
connect to computer
FC2A-KC6C
User Communication Cable 1C
(2.4m/7.87 ft. long)
Used to connect RS232C equipment to the OpenNet Controller
RS232C port, without a connector to connect to RS232C equip-
ment
FC2A-KP1C
PLC Connection Cable
(3m/9.84 ft. long)
RS232C cable used to connect IDEC HG1B/2A/2C operator inter-
face to the OpenNet Controller RS232C port
HG9Z-XC183
INTERBUS Cable Used for wiring the remote I/O master and slave modules See page 24-15
RS232C/RS485 Converter
Used for interface between an IBM PC and the OpenNet Controller
CPU modules in the computer link 1:N communication system or
through modems
FC2A-MD1
RS232C Cable (4-wire)
(1.5m/4.92 ft. long)
Used to connect the RS232C/RS485 converter to an IBM PC, with
D-sub 9-pin female connector to connect to computer
HD9Z-C52
DIN Rail
(1m/3.28 ft. long)
35-mm-wide DIN rail to mount OpenNet Controller modules BAA1000
Mounting Clip Used on DIN rail to fasten OpenNet Controller modules BNL6
Phoenix Ferrule Ferrule for connecting 1 or 2 wires to screw terminal See page 3-10
Phoenix Ferrule Tool Used for crimping ferrules See page 3-10
Screwdriver Used for tightening screw terminals See page 3-10
Terminal Block Removal Tool Used for removing terminal blocks from I/O modules FC9Z-FTP20
Miniature Memory Card 2MB memory card to store a user program FC9Z-MC02
WindLDR Programming and monitoring software for Windows PC (CD) FC9Y-LP2CDW
9.5
ø2.1
ø5.5
Polarity
+
–
Dimensions in mm.
