5: SPECIAL FUNCTIONS
OPENNET CONTROLLER USERS MANUAL 5-13

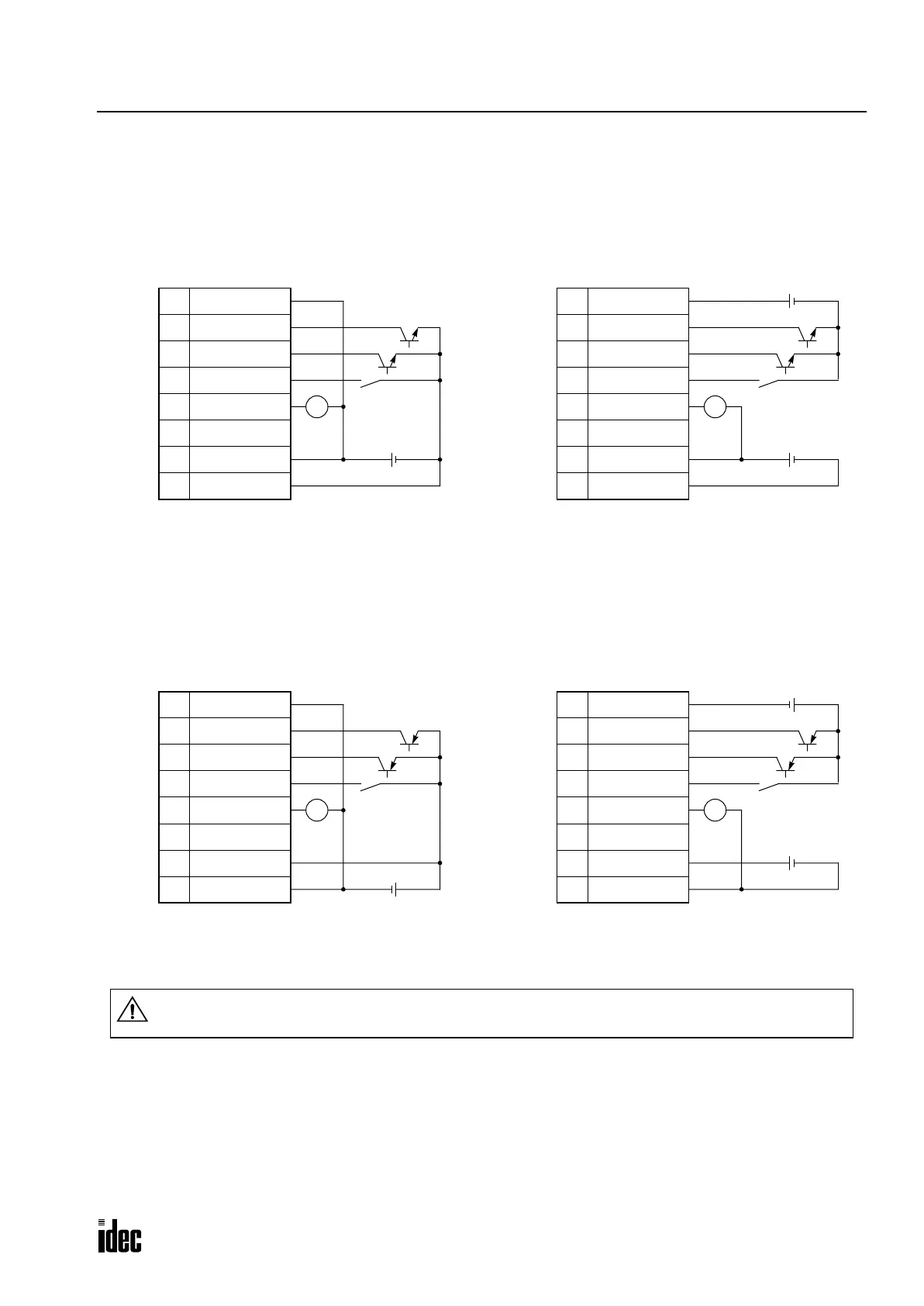

High-speed Counter Wiring Diagram
Sink Type High-speed Counter Comparison Output — FC3A-CP2K and FC3A-CP2KM
Source Type High-speed Counter Comparison Output — FC3A-CP2S and FC3A-CP2SM
L
1 COM
2 CW
3 CCW
4 Reset to zero
5 HSC OUT
9 +24V DC
10 0V
L
1 COM
2 CW
3 CCW
4 Reset to zero
5 HSC OUT
9 +24V DC
10 0V
Wiring for loads susceptible to noisesWiring for loads insusceptible to noises
L
1 COM
2 CW
3 CCW
4 Reset to zero
5 HSC OUT
9 +24V DC
10 0V
L
1 COM
2 CW
3 CCW
4 Reset to zero
5 HSC OUT
9 +24V DC
10 0V
Wiring for loads susceptible to noisesWiring for loads insusceptible to noises
Caution
Be sure to use shielded cables for wiring high-speed counter inputs. If the input cable is not
shielded, high-speed input pulses may not be counted correctly.
