EN
5 - ADJUSTMENT AND SETUP Master 80 UP HyperFlexible
5 - Pag. 20 / 20
• Attach the bracket to the hook in the new position.

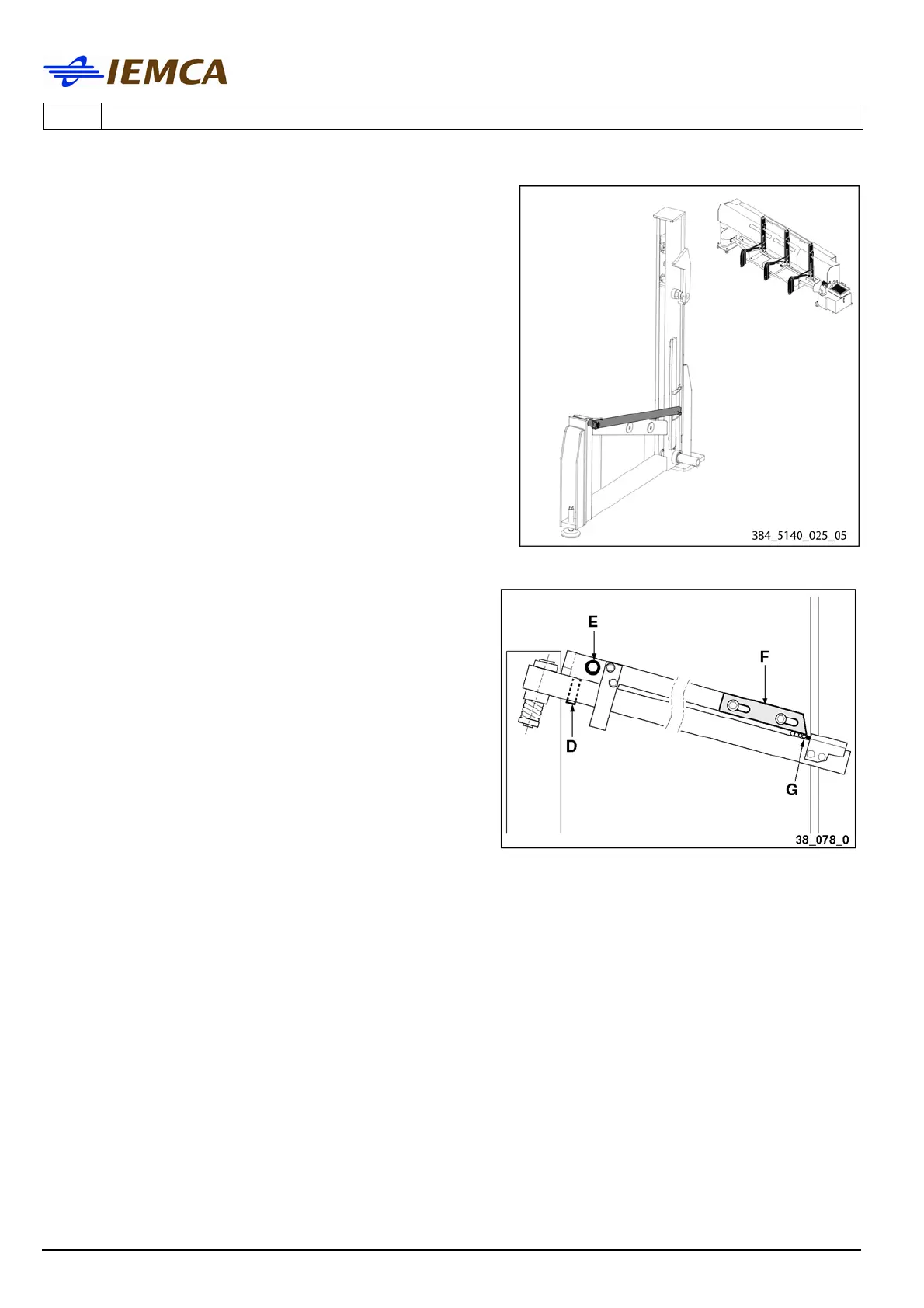

BAR CONTAINMENT BRACKET (OPTIONAL)
This device aligns the bars having a smaller
diameter than 12 mm, so as to avoid that they may
overlap.
It can also be used to keep the shaped bars with
special profiles in position.
Adjust as follows:
• install the containment bracket inserting pin (D)
in the special hole;
• loosen screw (E) and lift the bracket;
• position two spacers, slightly thicker (approx.
0.5 mm) than the diameters of the bars to be
machined, under the bracket;
• keep the bracket pressed against the spacers and tighten screw (E);
• adjust the position of push-rod (F) so as to leave the necessary space for the passage of the
first bar (G);
• repeat the previous operations in all the bar supporting brackets.
