2 - TECHNICAL INFORMATION Master 80 UP HyperFlexible
EN
2 - Pag. 7 / 7
2.1.3 Hydraulic system - Main components

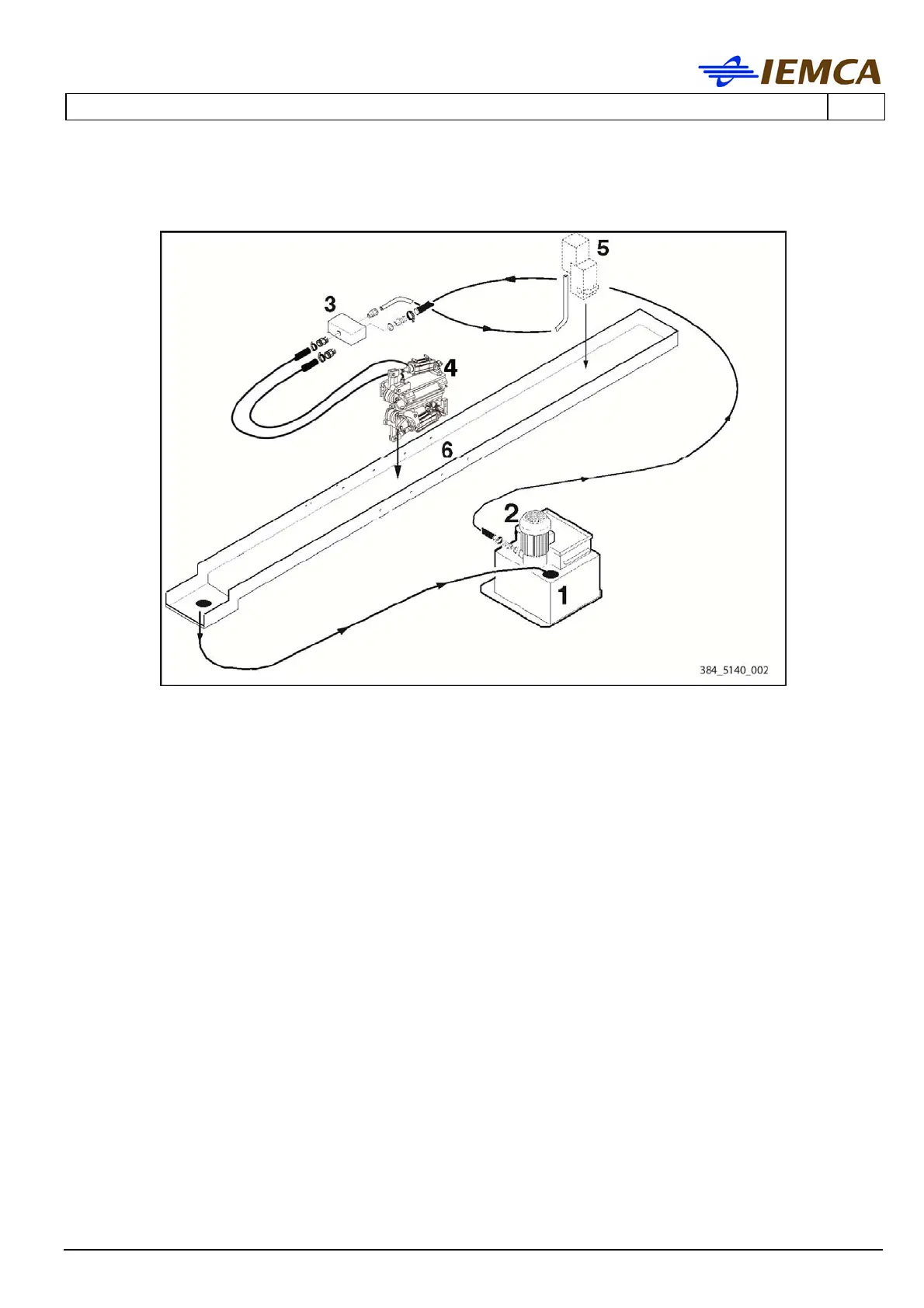

The oil performs the following cycle: it is forced by pump (2) of tank (1), it flows into the guide
channels (4) and bush holder device (5) in order to lubricate the bars during the machining.
From these two devices, the oil is gathered in the recovery tank (6) and filtered in the oil tank,
from where it flows again for a new lubrication cycle.
