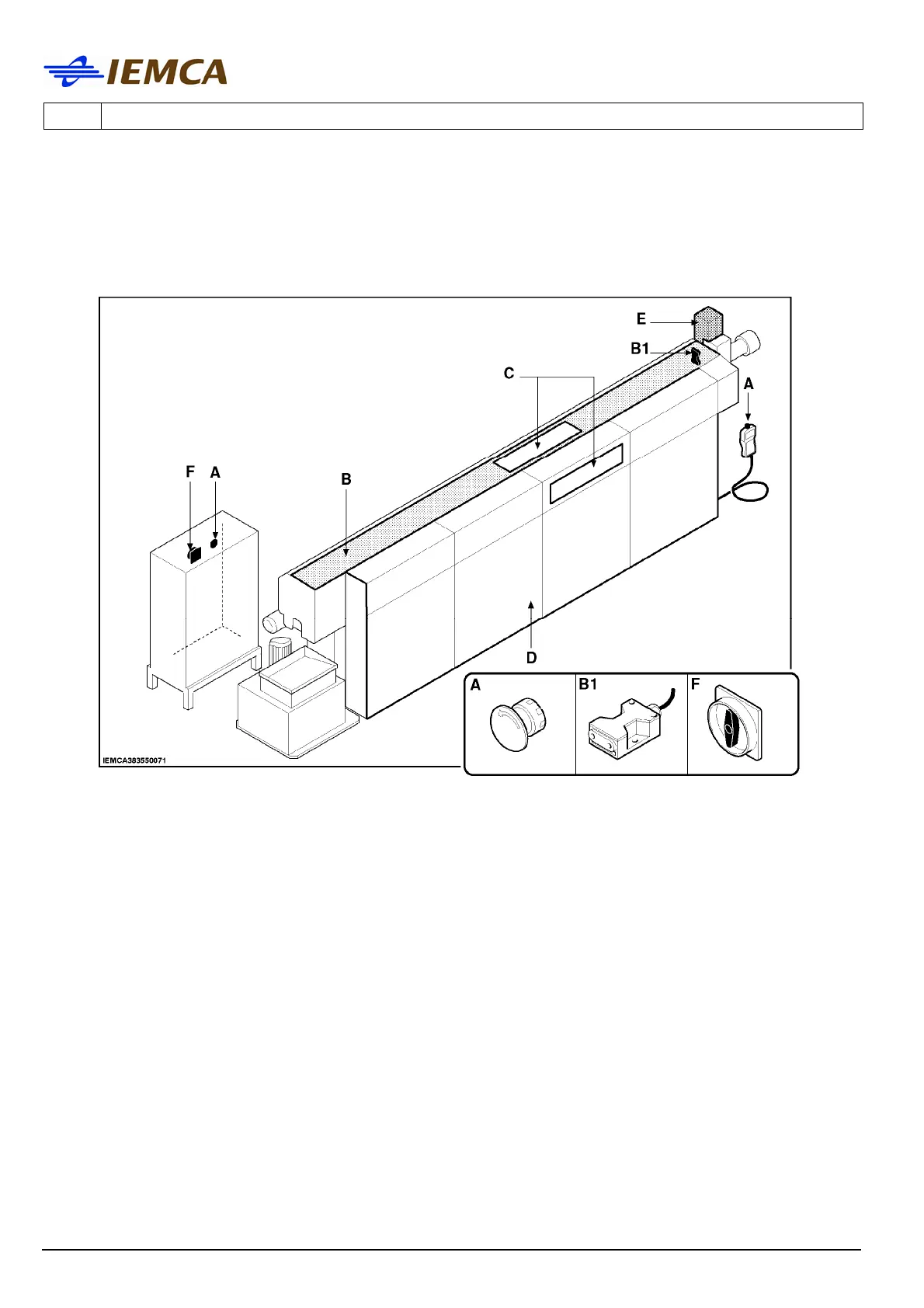

2.3 SAFETY DEVICES - POSITION AND DESCRIPTION
2.3.1 Bar feeder - Safety devices
A EMERGENCY BUTTON; when pressed, all bar feeder and lathe functions are stopped in an
emergency condition.
B INTERLOCKED SLIDING GUARD; linked to microswitch B1. When the guard is opened, the
bar feeder and lathe functions are suspended. When the guard is closed, the user can start
the cycle again.
C FIXED GUARD: made of transparent material to allow the visual detection of the bar drop
area in the guide channels.
D FIXED GUARD: hinders an accidental access to the moving components.
E FIXED GUARD: prevents an accidental access to the bush holder device area.
F MAIN SWITCH: disconnects the electric power supply during the operations in the electrical
control panel, and during the bar feeder inactivity periods.
