IEMCA Master 80 UP HyperFlexible - Revolving Tips Øgr 20 25 - Table

10 - GUIDE CHANNELS-BAR PUSHER-REVOLVING TIPSMaster 80 UP HyperFlexible
EN
10 - Pag. 5 / 5

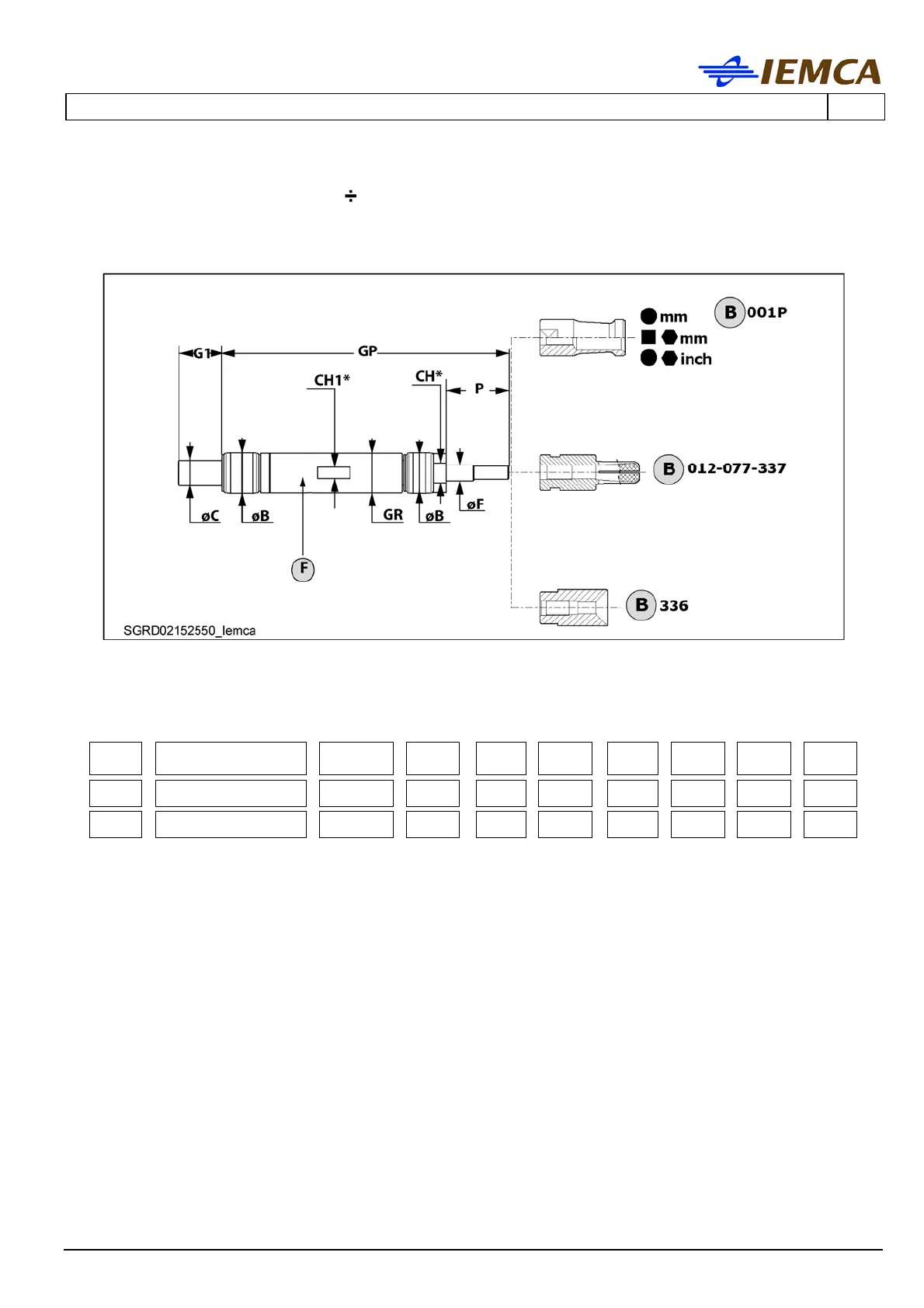

10.3 Revolving tips øGR 20 25 - Table
• For collets with threaded coupling (IEMCA)
CH*: double-ended fork wrench DIN3110
B See conversion table therefore collet table
F Revolving tip
øGR
(mm)
Revolving tip code øF
øB
(mm)
GP
(mm)
G1
(mm)
øC
(mm)
P
(mm)
CH1
(mm)
CH
(mm)
20 D02152050 M10x1 20.5 172.2 29 M12 38.5 19 15
25 D02152550 M10x1 25.5 172.2 29,8 M16 38.5 24 21
