4 - HANDLING AND INSTALLATION Master 80 UP HyperFlexible
EN
4 - Pag. 21 / 21

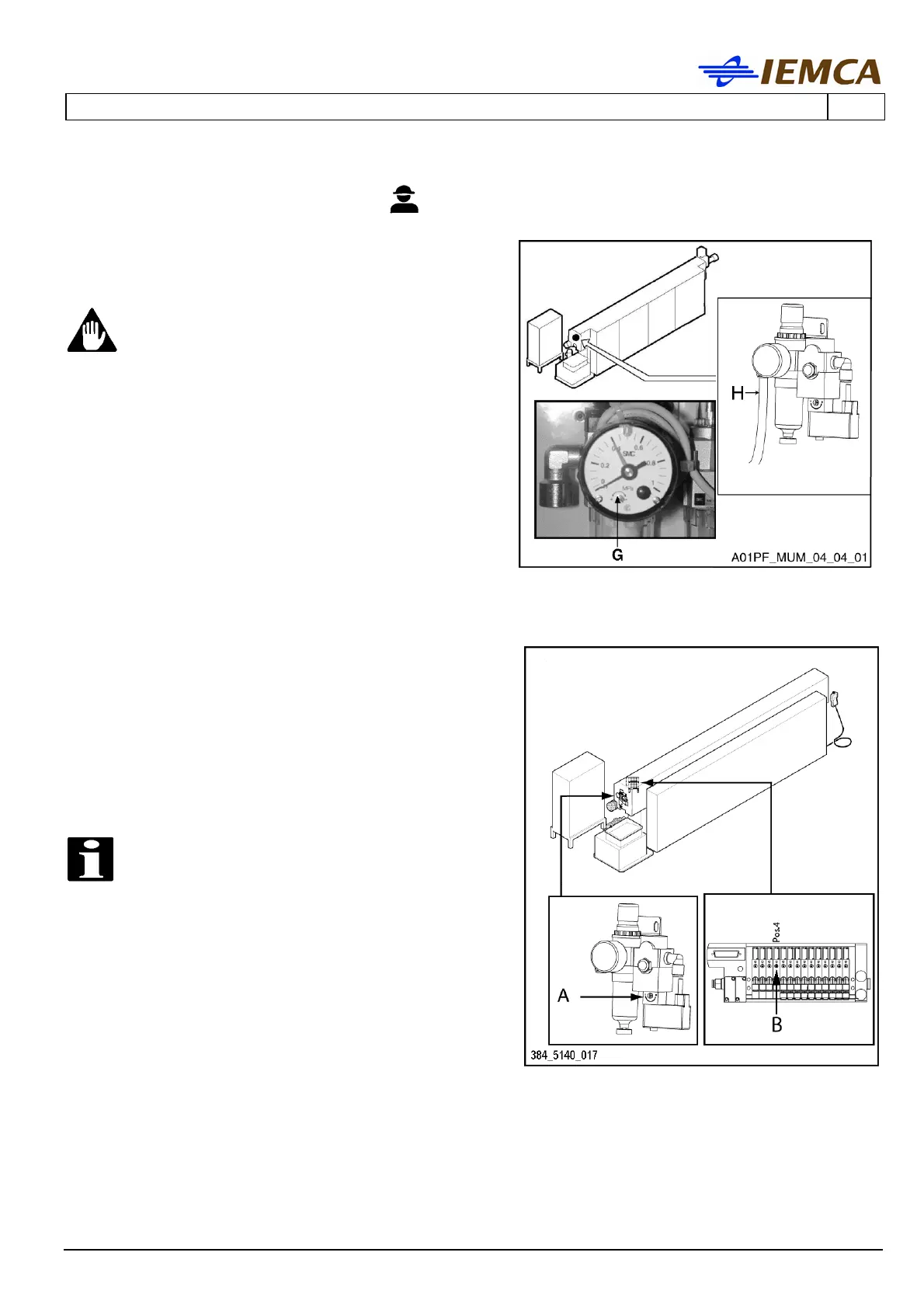

4.7.1 PNEUMATIC CONNECTION
• Connect pipe H of the pneumatic network as
shown in the figure.
WARNING - CAUTION:
to adjust the pressure follow the
instruction manual.
4.7.2 BAR FEEDER HANDLING WITHOUT POWER SUPPLY
Without power supply or in case of an emergency it
is possible to move the pneumatic units using the
solenoid valves manually:
- By means of a small screwdriver turn switch A to
position 1.
- With the same tool turn switches B, placed on
each solenoid valve, to move the unit.
INFORMATION:
For the movement description of each
solenoid valve, refer to the "Pneumatic
device layout" section.
