2.2.2 Magazine - Operating cycle

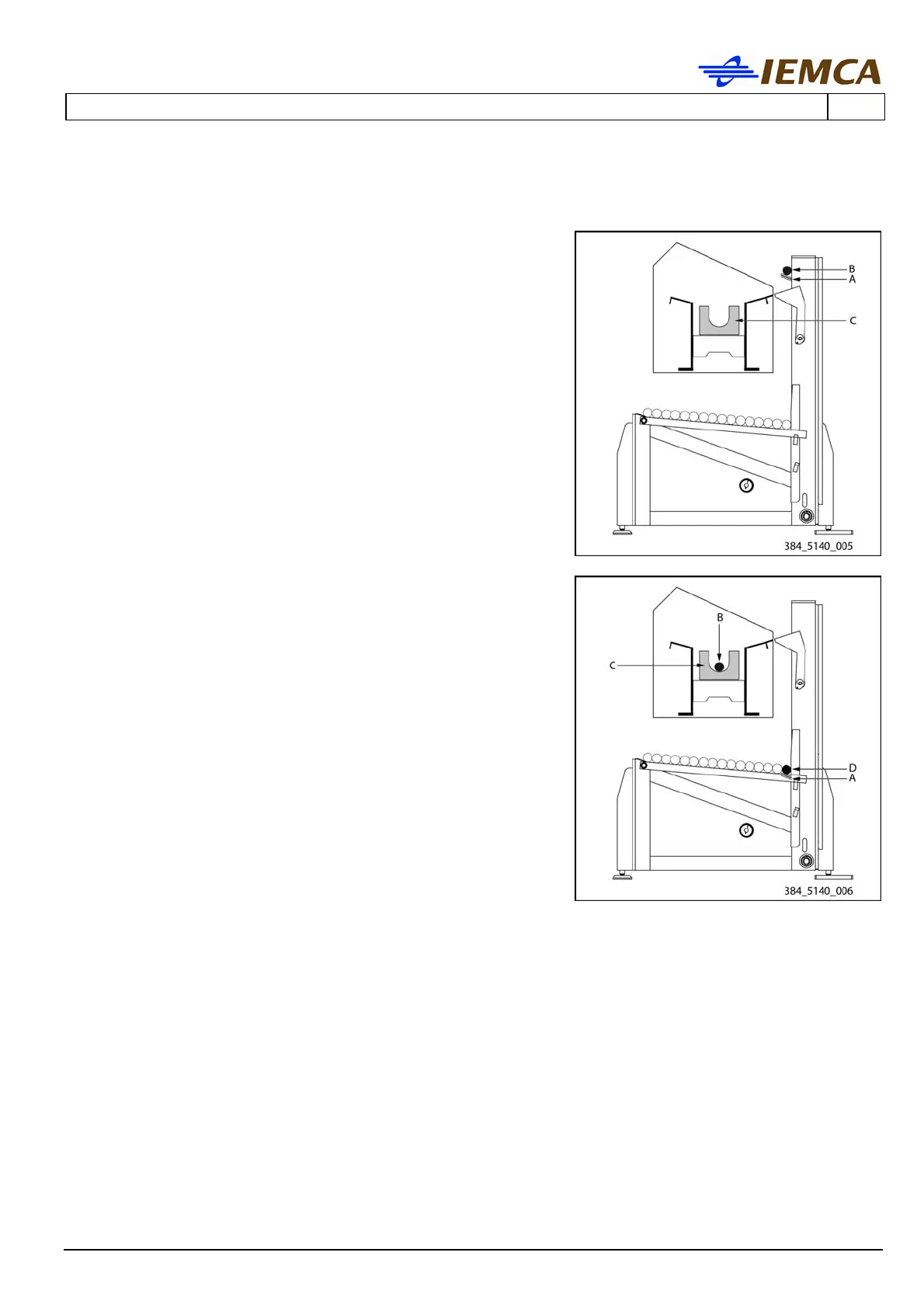

The automatic mode controls the magazine movements
according to the sequence described below.
The elevator carriages (A) are in the highest position and
support bar (B), which is ready to be unloaded in the
guide channels (C).
The elevator carriages (A) lower and let the bar (B) fall
into the guide channels (C).
The carriages continue lowering until they reach bar (D)
and bring it in the highest position.
The cycle goes on until the bars are finished.
