4 - HANDLING AND INSTALLATION Master 80 UP HyperFlexible
4 - Pag. 18 / 18

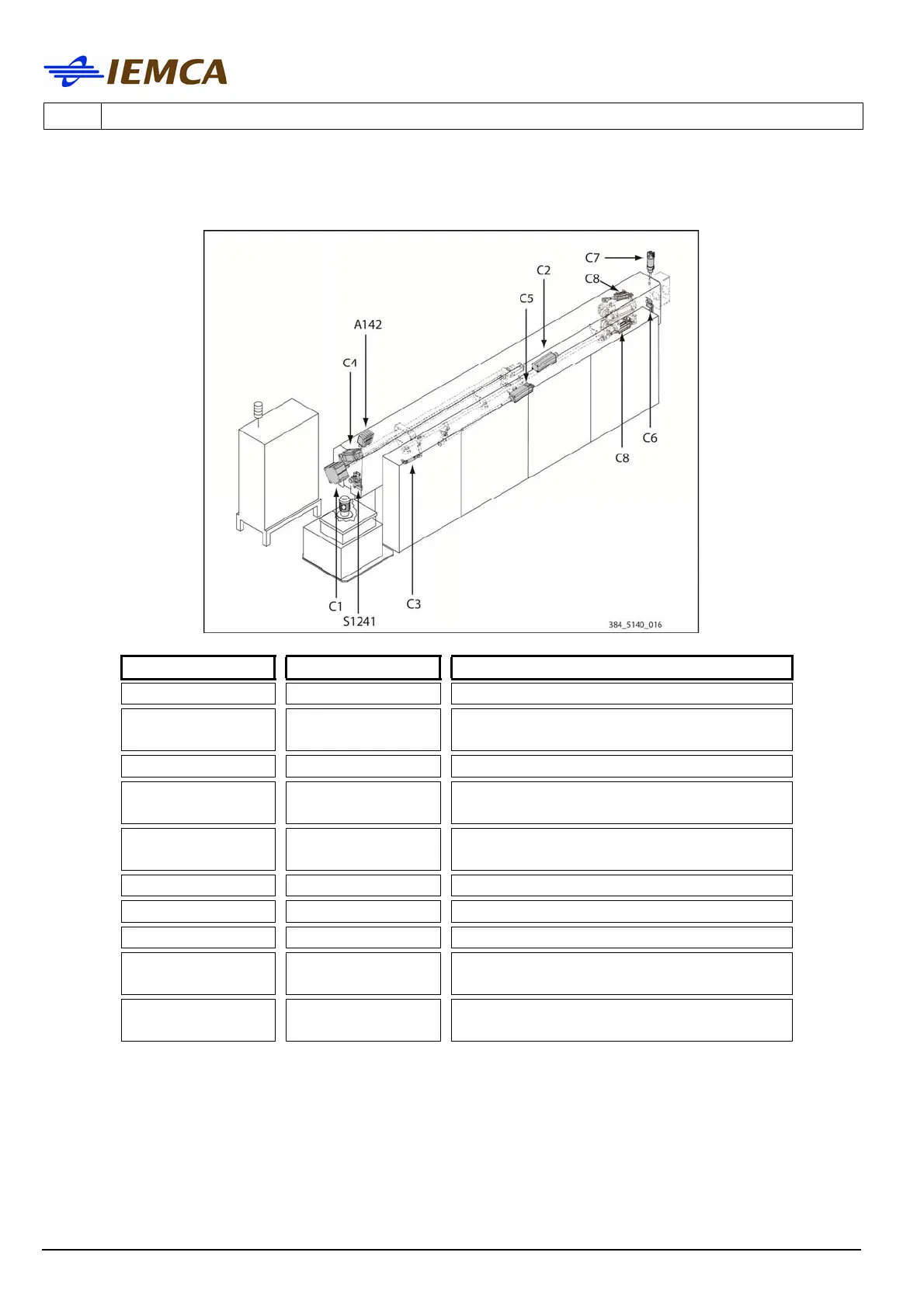

4.7 PNEUMATIC DEVICE LAYOUT
ABBREVIATION DESCRIPTION FUNCTION
C1 Cylinder Enables the clamp opening and closing
C2 Cylinder
Enables the guide channel downstroke for
the remnant drop
C3 Cylinder Enables the guide channel locking
C4 Cylinder
Enables the guide channel upstroke and
downstroke
C5 Cylinder
Controls the bar drop control devices
upstroke and downstroke
C6 Cylinder Resets the short feed gate
C7 Cylinder Enables the bush opening and closing
C8 Cylinder Enables the bar pusher locking.
A142 Solenoid valve unit
Cylinder or piston control device (see
description Solenoid valve box)
S1241
Distributor +
pressure switch
Dispenses and adjusts the supply flow inside
the pneumatic system
