10 - GUIDE CHANNELS-BAR PUSHER-REVOLVING TIPSMaster 80 UP HyperFlexible
10 - Pag. 6 / 6

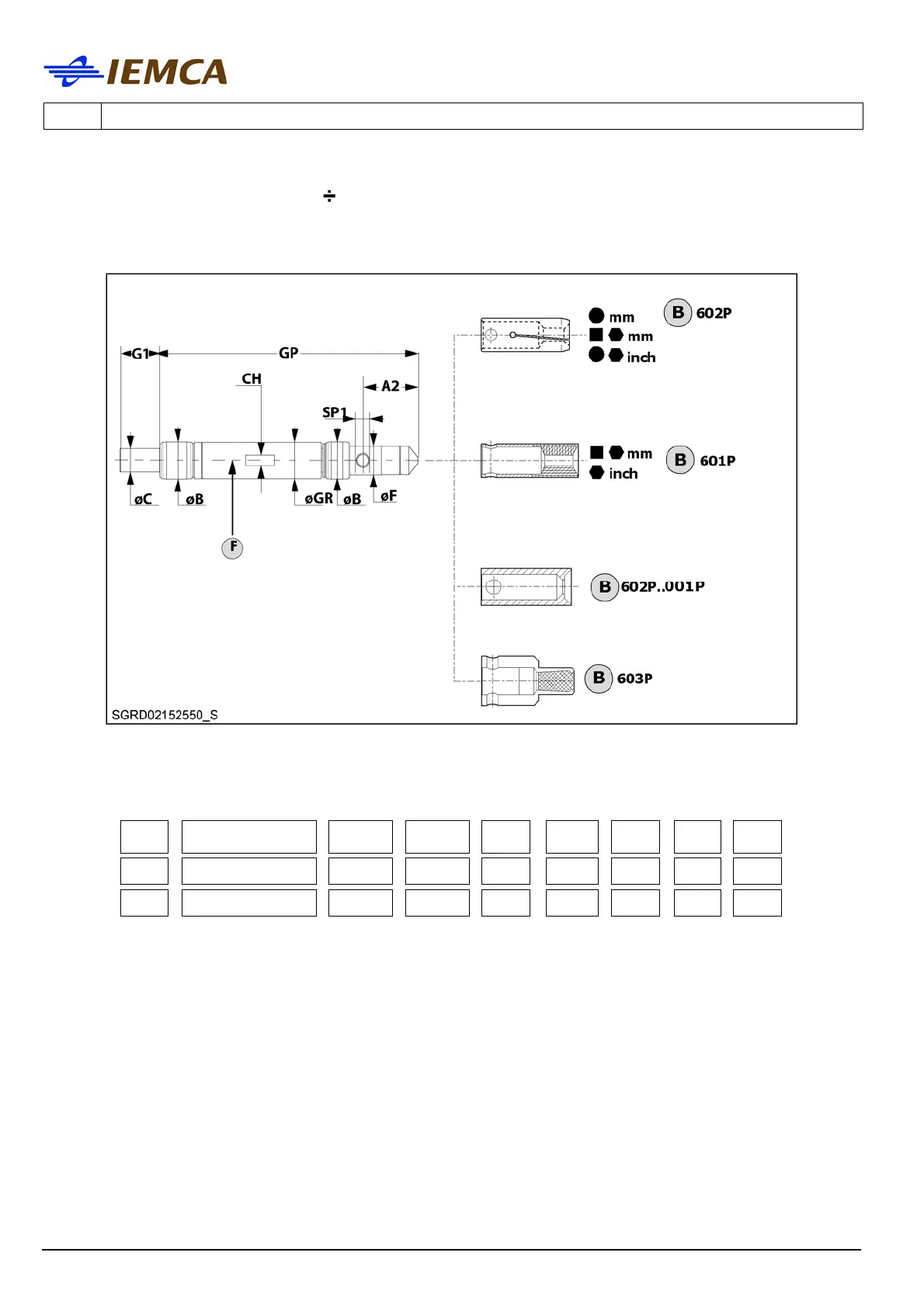

10.4 Revolving tips øGR 20 25 - Table
• For collets with quick coupling pin "OPTIONAL"
CH*: double-ended fork wrench DIN3110
B See conversion table therefore collet table
F Revolving tip
øGR
(mm)
Revolving tip code A2 øF
øB
(mm)
GP
(mm)
G1
(mm)
øC
(mm)
CH
(mm)
20 D02152051 37,5
Ø14
20.5 172.7 29 M12 19
25 D02152551 37,5
Ø20
25.5 172.5 29,8 M16 21
