IEMCA Master 80 UP HyperFlexible - Square Bars (millimetres) Table

11 - COLLETS Master 80 UP HyperFlexible
EN
11 - Pag. 5 / 5

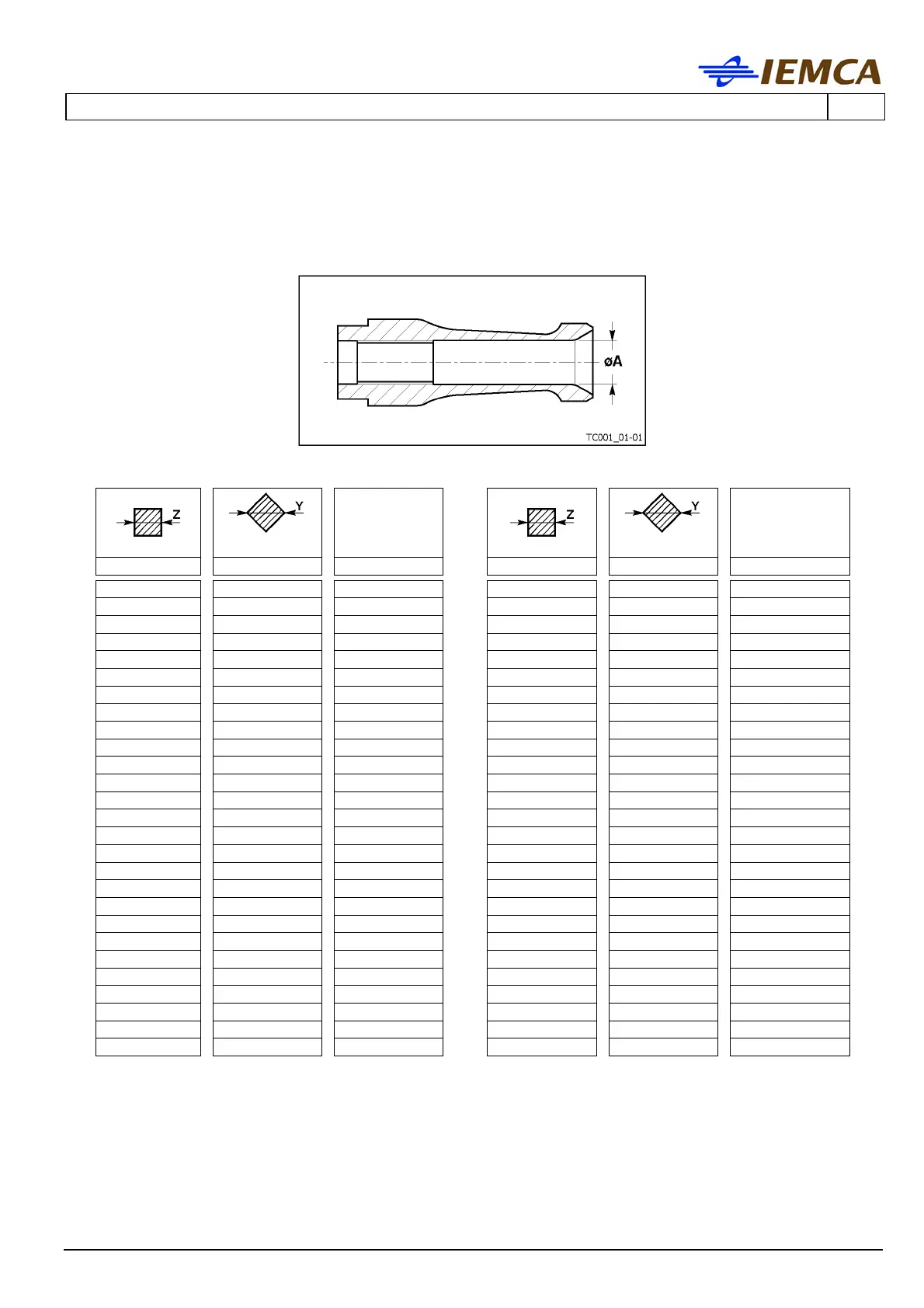

11.3 SQUARE BARS (unit of measurement "millimetres") - Table
Before selecting the steel collet, define the internal diameter øA by referring to the table below.
Y=Zx1,414
ØA
Y=Zx1,414
ØA
mm mm mm mm mm mm
1 1.41 1.3 20 28.28 27.5
1.5 2.12 2 22 31.10 30.5
2 2.82 2.7 23 32.52 32
2.5 3.53 3.4 24 33.93 33
3 4.24 4 25 35.35 34.5
4 5.65 5.5 26 36.76 36
4.5 6.36 6.2 27 38.17 37.5
5 7.07 6.8 28 39.59 38.5
5.5 7.77 7.5 30 42.42 41.5
6 8.48 8.3 32 45.24 44.5
6.5 9.19 9 34 48.07 47
7 9.89 9.7 35 49.49 48.5
8 11.31 11 36 50.90 50
8.5 12.01 11.8 37 52.31 51.5
9 12.72 12.5 38 53.73 52.5
10 14.14 13.8 39 55.15 54.5
10.5 14.84 14.5 40 56.56 55.5
11 15.55 15 41 57.97 57
12 16.97 16.5 42 59.38 58.5
12.5 17.67 17 43 60.08 59
13 18.38 18 44 62.21 61
14 19.79 19.5 45 63.63 62.5
15 21.21 20.8 46 65.04 64
16 22.62 22 50 70.7 69.5
17 24.04 23.5 55 77.77 76.75
18 25.52 25 60 84.84 83.75
19 26.86 26 65 91.91 91
