2 - TECHNICAL INFORMATION Master 80 UP HyperFlexible
2 - Pag. 4 / 4

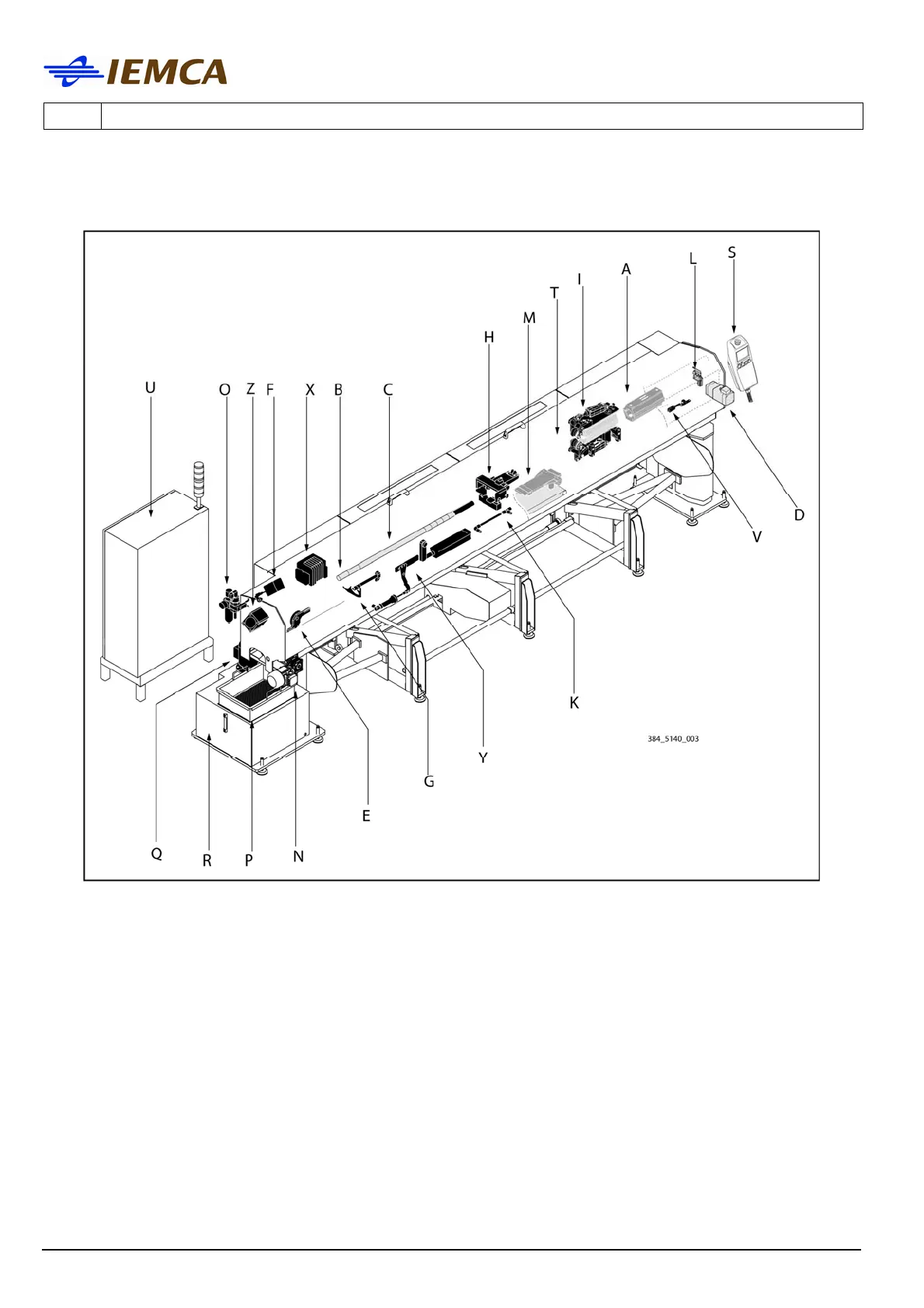

2.1.1 Bar feeder - Main components
A GUIDE CHANNELS; drive the bar during the machining.
B FIRST FEEDING CARRIAGE; moves the bar forwards until the necessary space for the bar
pusher introduction has been created.
C BAR PUSHER; pushes the bar during the machining. The collet is fixed on its front end.
D BAR PUSHER MOTOR DRIVE; moves the bar pusher.
E FEED CHAIN; transmits the motion from the motor drive to the bar pusher.
F GUIDE CHANNEL OPENING/CLOSING CYLINDER
Y UPPER GUIDE CHANNEL UNLOCKING.
G PNEUMATIC BAR DROP CONTROL LEVERS; guide the bar during the drop into the guide
channels.
H PNEUMATIC CLAMPS; hold the bar during the loading and removal from the collet of the bar
pusher.
K LUBRICATION SYSTEM
L FACING DEVICE; it sends a signal when the bar passes.
