4 - HANDLING AND INSTALLATION Master 80 UP HyperFlexible
EN
4 - Pag. 7 / 7
4.4.2 Height - Adjustment
The bar feeder is normally supplied with the
working axis height adjusted to the lathe height.
However, if an adjustment is needed, proceed as
follows:

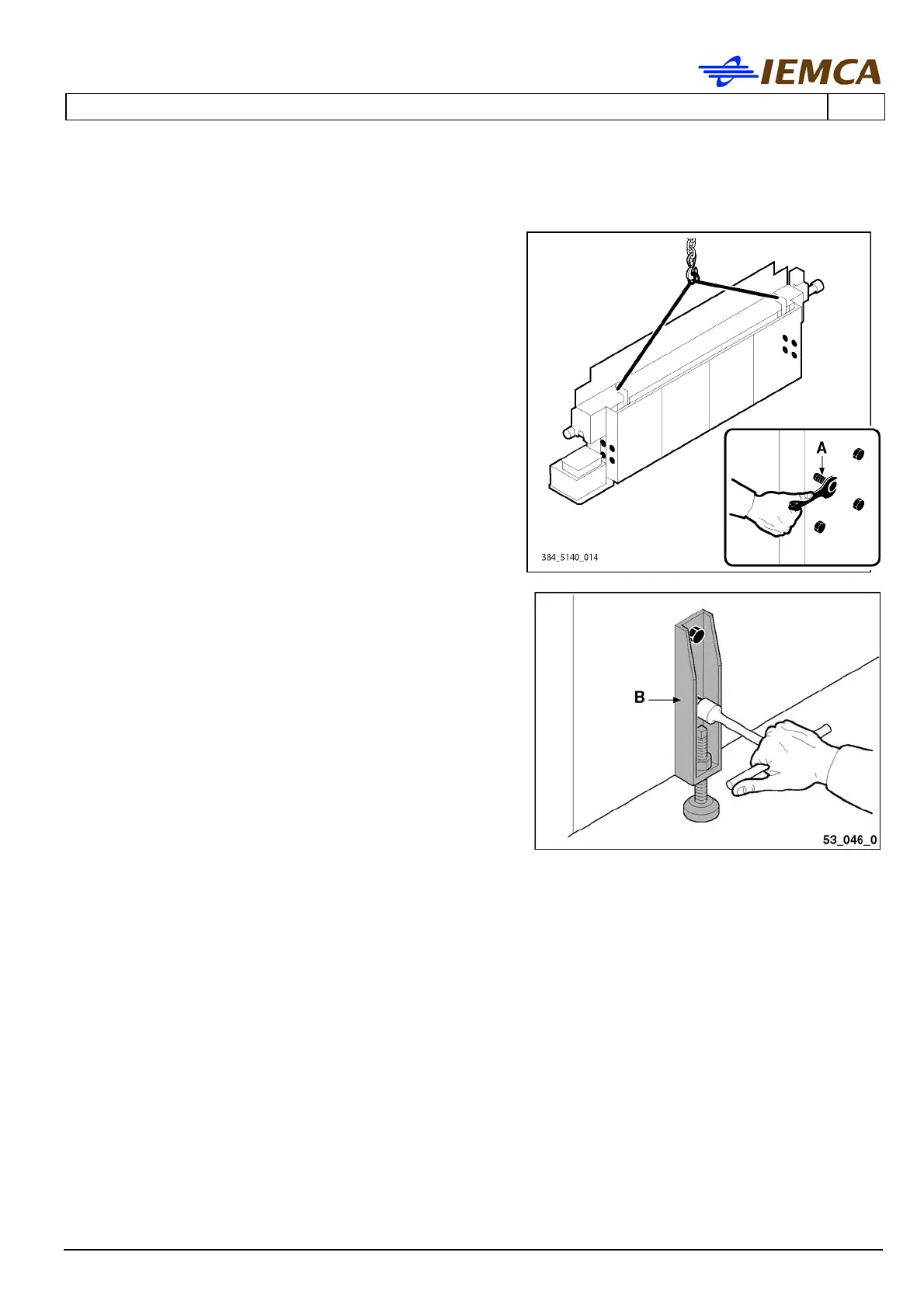

• stretch the lifting chains and remove screws (A)
in the front and rear bases;
• remove all the brackets (B) of the magazine feet.
• lift or lower the bar feeder according to the necessary X value, see table.
- The height of the working axis may be adjusted according to the data indicated in the table
of the "Technical data" section.
