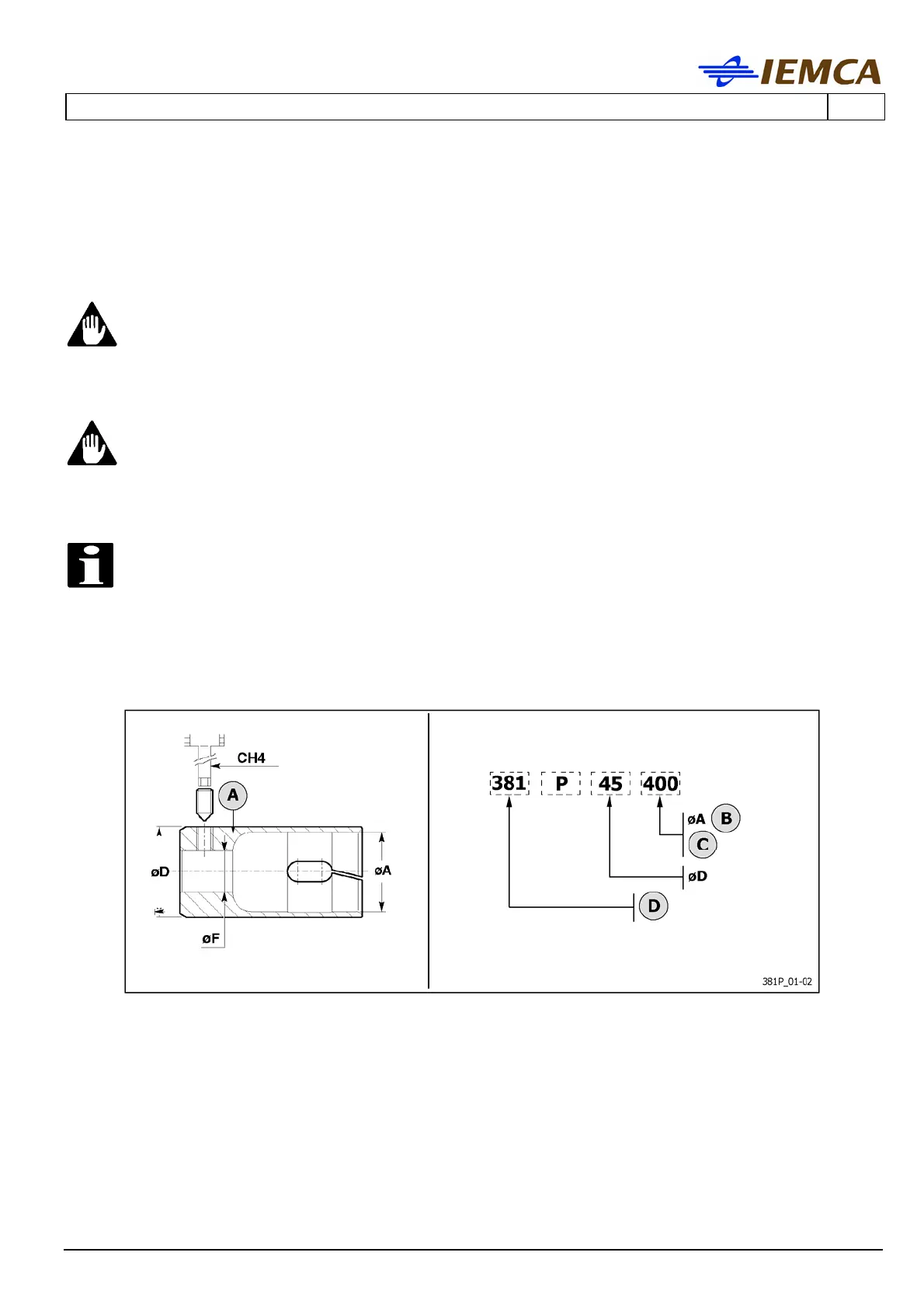

11.22 COLLETS FOR BARS 381P
11.23 COLLET FOR BARS - Table
WARNING - CAUTION:
The bar minimum diameter that allows its machining is in any case the one
indicated in the table "Guide channel, bar pusher, bar and pipe diameters" in
section 2.6.
WARNING - CAUTION:
the collet external diameter should be at least 0.5 mm smaller than the bar
pusher external diameter.
INFORMATION:
upon specific request, non standard collets with reduced thickness (which are
not mentioned in this table) may be supplied as well. Their durability is however
below the durability of standard collets.
Code structure
A Collet
B Bar diameter
C Example:
40 mm = 400
39.75 mm = 397
D Category
CH4: T Allen wrench - DIN911
