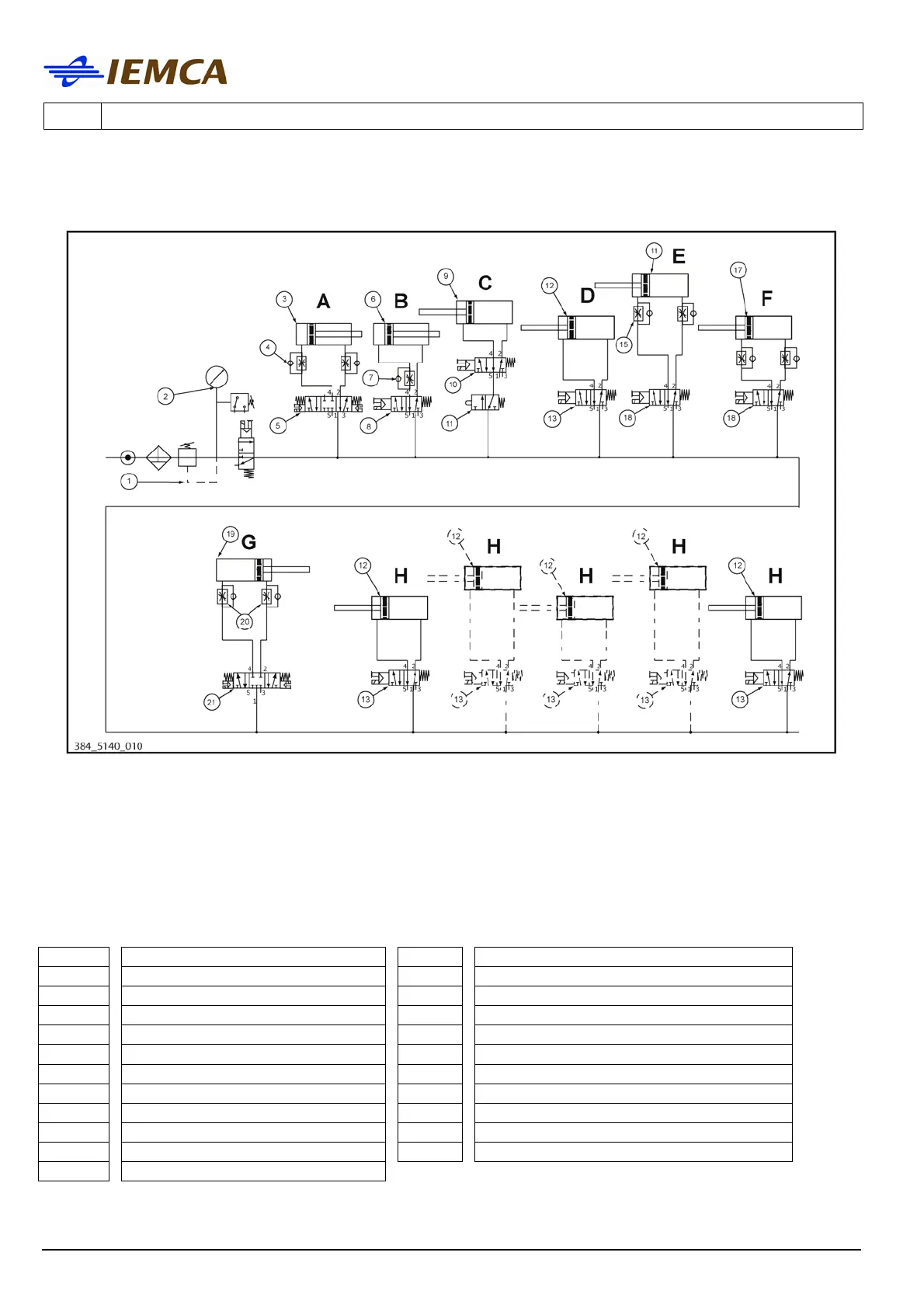

2.1.4 Pneumatic system - Main components
A - PNEUMATIC BAR DROP CONTROL DEVICE UNIT
B - FACING CYLINDER
C - BUSHING DRIVE UNIT
D - PNEUMATIC CLAMP UNIT
E - REMNANT DROP UNIT
F - GUIDE CHANNEL PNEUMATIC LOCKING UNIT
G - GUIDE CHANNEL OPENING UNIT
H - BAR-PUSHER LOCKING TIPS
POS. Description POS. Description
1 FILTER 12 CYLINDER
2 PRESSURE GAUGE 13 SOLENOID VALVE
3 CYLINDER 14 CYLINDER
4 REGULATOR 15 REGULATOR
5 SOLENOID VALVE 16 SOLENOID VALVE
6 CYLINDER 17 CYLINDER
7 REGULATOR 18 SOLENOID VALVE
8 SOLENOID VALVE 19 CYLINDER
9 CYLINDER 20 REGULATOR
10 SOLENOID VALVE 21 SOLENOID VALVE
11 VALVE
