IEMCA Master 80 UP HyperFlexible - Conversion Tables 001; Hexagonal Bars (millimetres) Table

11 - COLLETS Master 80 UP HyperFlexible
EN
11 - Pag. 3 / 3
11.1 CONVERSION TABLES 001
11.2 HEXAGONAL BARS (unit of measurement "millimetres") - Table

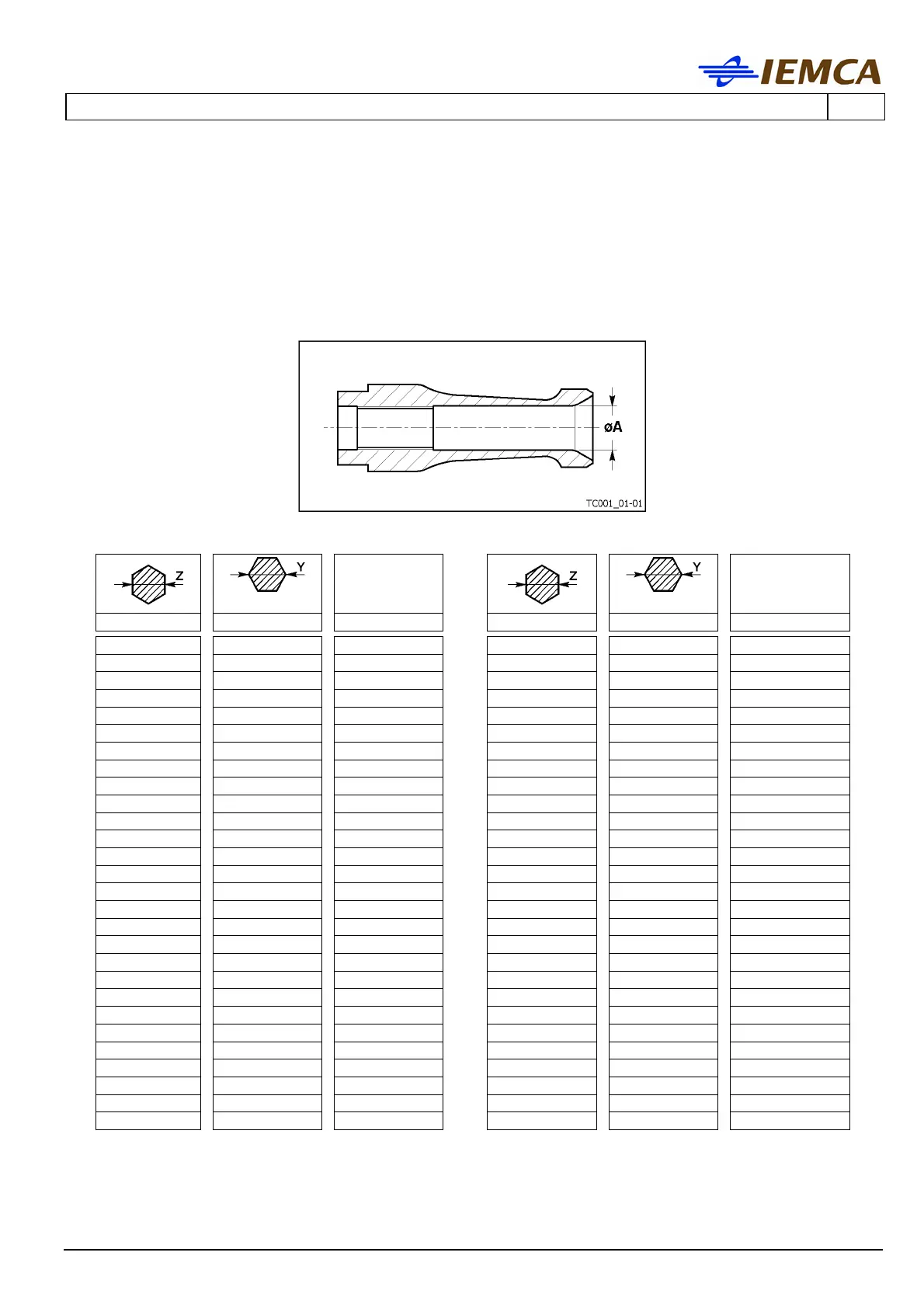

Before selecting the steel collet, define the internal diameter øA by referring to the table below.
Y=Zx1,154
ØA
Y=Zx1,154
ØA
mm mm mm mm mm mm
1.5 1.73 1.7 28 32.33 32
2 2.31 2.2 29 33.48 33.2
2.5 2.89 2.8 30 34.64 34.5
3 3.48 3.25 31 35.79 35.5
3.5 4.04 3.8 32 36.95 36.8
4 4.61 4.5 33 38.10 37.8
4.5 5.19 5 34 39.25 39
5 5.77 5.5 35 40.41 40.2
5.5 6.35 6.2 36 41.56 41.3
6 6.92 6.8 38 43.87 43.5
6.5 7.50 7.3 39 45.03 44.8
7 8.08 7.8 40 46.18 46
7.5 8.66 8.5 41 47.34 47
8 9.23 9 42 48.49 48.2
9 10.39 10.2 43 49.65 49.5
10 11.54 11.3 44 50.80 50.5
11 12.70 12.5 45 51.96 51.8
12 13.85 13.5 46 53.11 52.8
13 15.02 14.8 48 55.42 55
14 16.16 16 50 57.73 57.5
15 17.32 17.2 52 60.04 59.5
16 18.47 18.3 55 63.50 63
17 19.62 19.5 57 65.78 65.25
18 20.78 20.6 60 69.24 68.75
19 21.93 21.8 62 71.55 71
20 23.09 22.8 65 75 74.5
21 24.24 24 67 77.3 76.75
22 25.40 25.2 70 80.78 80.25
