2 - TECHNICAL INFORMATION Master 80 UP HyperFlexible
2 - Pag. 6 / 6

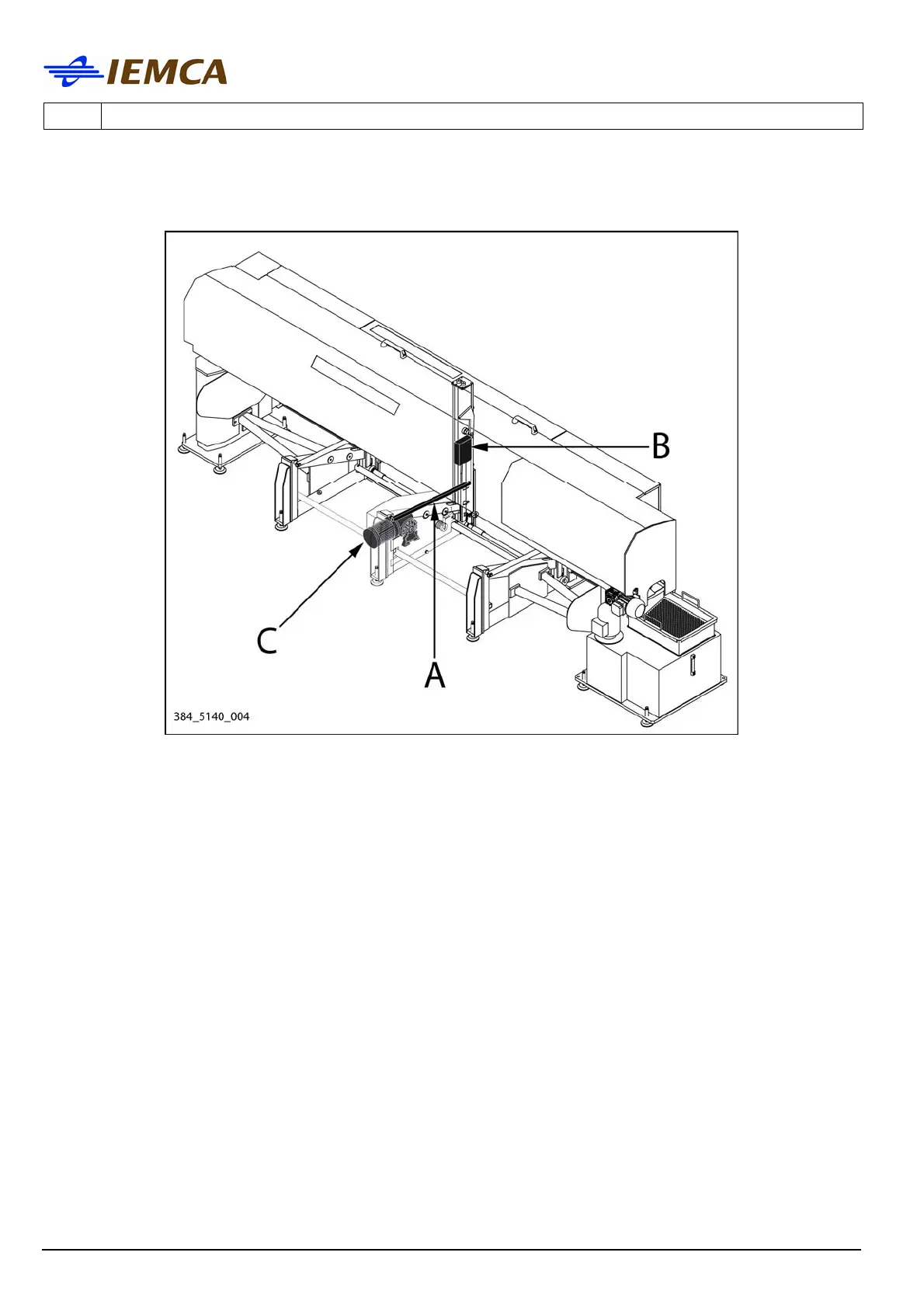

2.1.2 Magazine - Main components
A BAR SUPPORT BRACKET; supports the bars. Thanks to its inclination, the bars lean against
the elevator uprights.
B ELEVATOR CARRIAGES; move the bars from the magazine to the bar feeder guide channels.
C ELEVATOR CARRIAGE DRIVE; drives the elevator carriages upstroke and downstroke.
