10 - GUIDE CHANNELS-BAR PUSHER-REVOLVING TIPSMaster 80 UP HyperFlexible
10 - Pag. 2 / 2
10.1 GUIDE CHANNELS AND BAR PUSHER
The choice of the guide channels and the bar pusher must be made according to the diameter
of the bar to be machined. The bar feeder is usually supplied with a bar pusher whose diameter
is equal to the maximum bar passage of the lathe. Sometimes, in order to ensure the best
working conditions, it may be necessary to use a bar pusher with a smaller diameter.

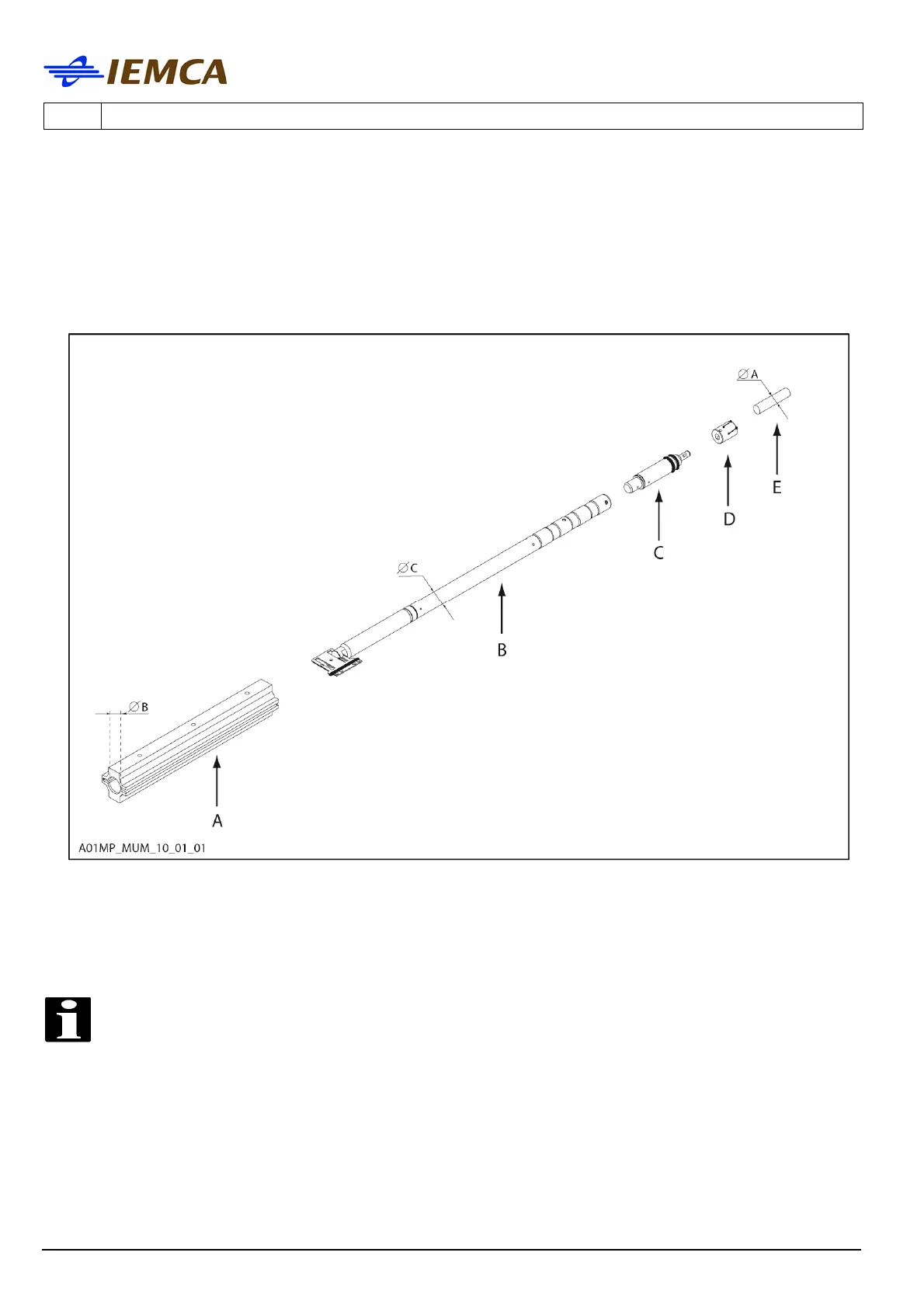

A Guide channels
B Bar pusher
C Revolving tip
D Collet
E Bar
INFORMATION:
upon customer's request and according to the internal diameter of lathe spindle
hole, the bar pusher and the revolving tips may be supplied with dimensions
other than the ones indicated in the table.
