4.4.3 Preliminary positioning

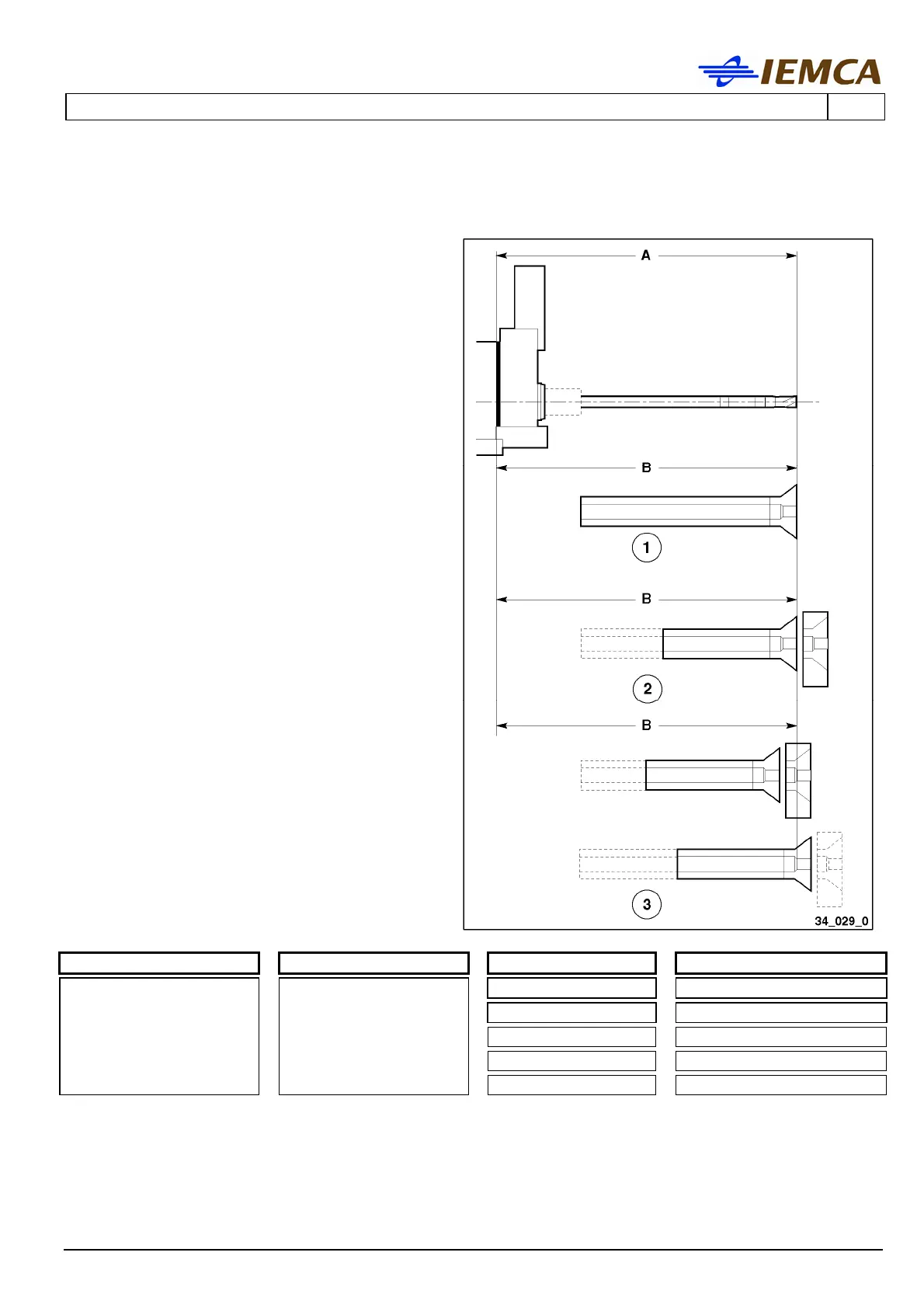

• Place the bar feeder behind the lathe,
considering the fixed and moving
dimensions of both machines. The
coupling distance (B) should not exceed
the bar pusher maximum extension (A).
1 Fixed headstock or sliding rest lathe
2 Sliding headstock CNC lathe
3 Sliding headstock cam lathe
Max. bar pusher extension
Model Version Version A –Max. extension(mm)
MASTER 80 UP
HyperFlex
33-38-43
N 1100
L 1350
LL 1600
XLL 1850
XXL 2100
