4 - HANDLING AND INSTALLATION Master 80 UP HyperFlexible
EN
4 - Pag. 5 / 5
4.3 INSTALLATION AREA - FEATURES
The floor should be stable and levelled to guarantee good fastening to the ground.
Provide an area of suitable dimensions according to the type of bar feeder used.

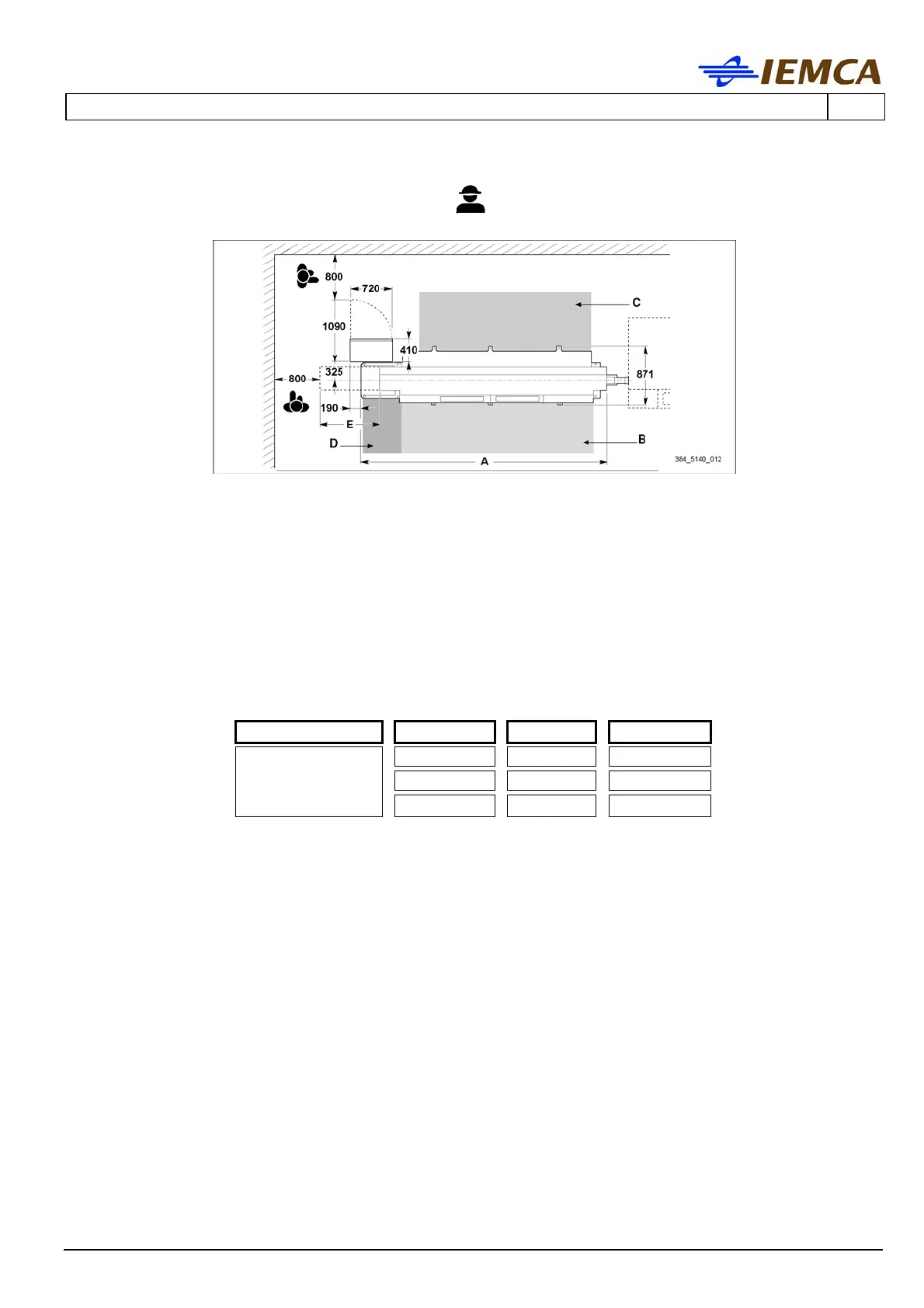

The areas (B) (working area), (C) (bar loading area) and (D) (remnant ejection area) should be
properly delimited to prevent collisions between the operator and any handling equipment or
means of transport travelling near the bar feeder.
The selected area should be illuminated and provided with an electric and pneumatic power
supply socket.
During operation, the bar feeder will release small amounts of oil mist. Install the bar feeder in
a suitably ventilated area.
The bar feeder has not been designed for use in an explosive atmosphere.
Model Version A (mm) E (mm)
MASTER 80 UP
HyperFlex
33 4330 800
38 4830 800
43 5330 800
4.4 BAR FEEDER INSTALLATION - FOREWORD
Before carrying out the bar feeder installation, check the lathe stability; make sure that it is
firmly fixed to the ground and that the spindle axis is perfectly in horizontal position.
