2 - TECHNICAL INFORMATION Master 80 UP HyperFlexible
2 - Pag. 14 / 14

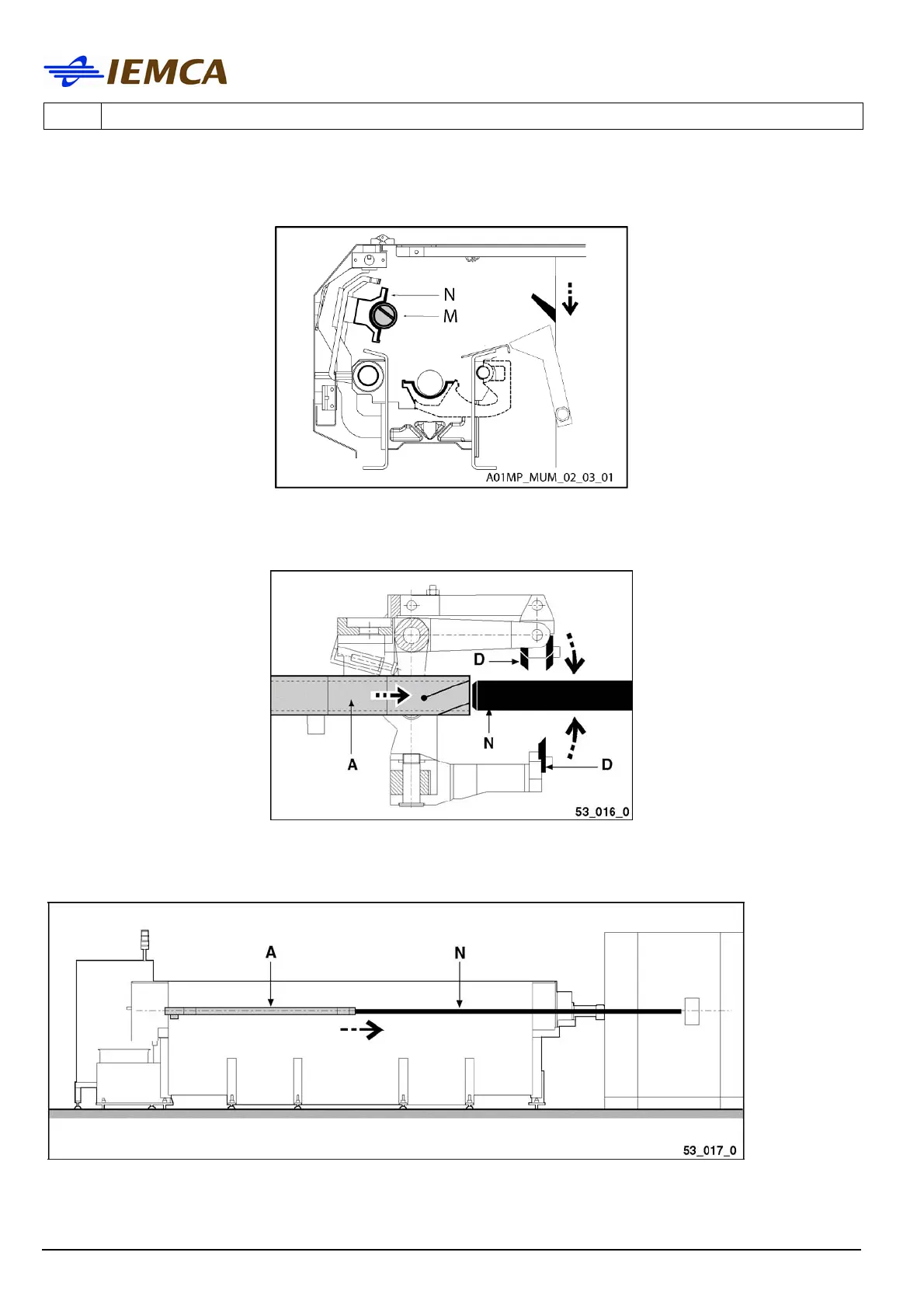

The upper guide channels (N) close; the bar pusher (M) is positioned along the spindle axis.
The clamps (D) close, the bar pusher (A) moves forwards; the bar (N) is inserted into the bar
pusher collet.
The bar pusher (A) and bar (N) perform the facing stroke. A new automatic working cycle is
started.
