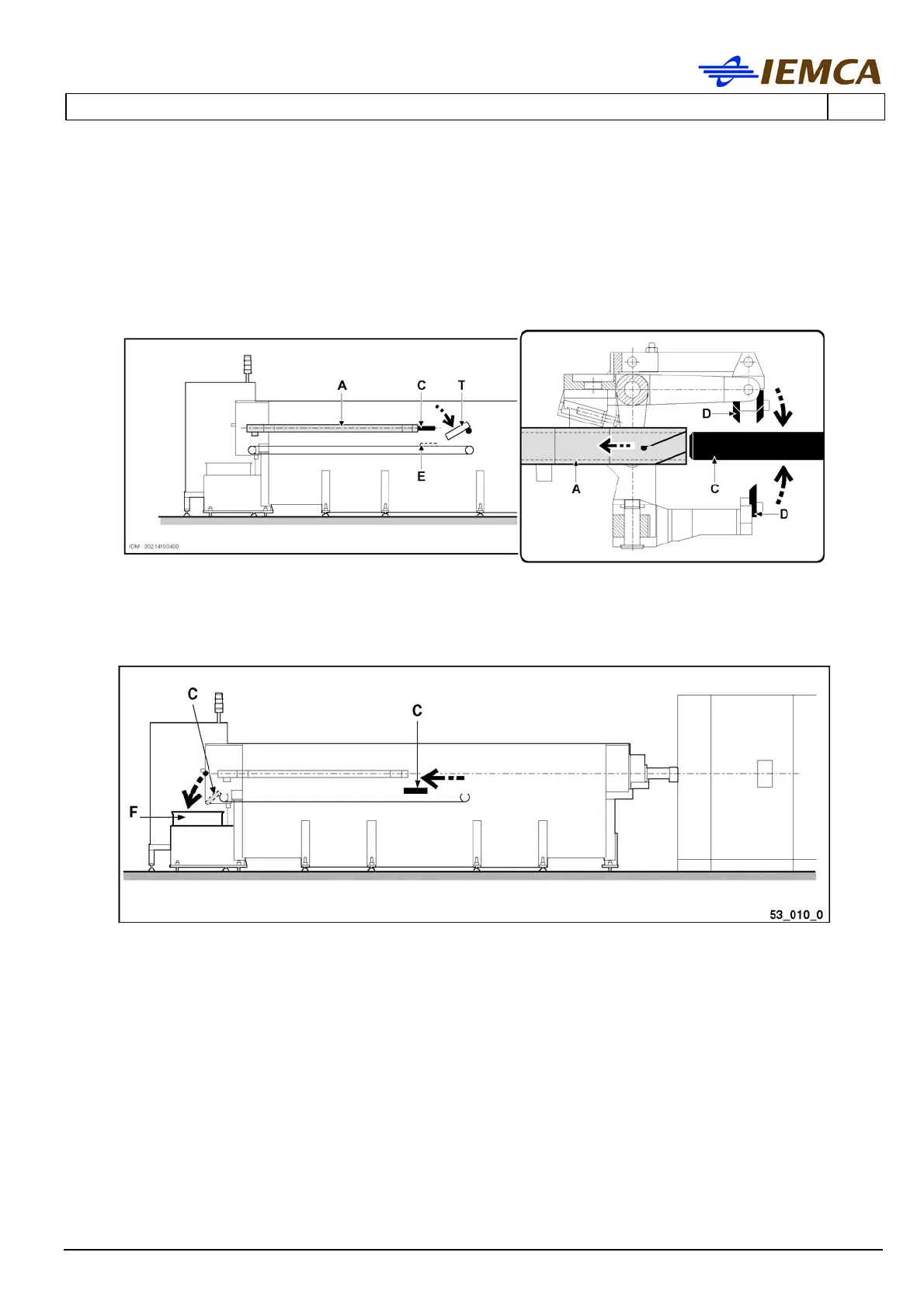

The bar pusher (A) and remnant (C) are in their backwards limit stop position.
The clamps (D) close and the bar pusher moves backwards; the remnant is removed from the
collet. The clamps open, the bar pusher (A) moves forwards and place the remnant on the drop
guide (T), then bar pusher moves backwards, the clamps (D) close and open again for the
remnant drop check, and finally the remnant drop guide (T) is lowered and the remnant drops
on the remnant conveyor belt (E).
Remnant (C) is driven to the rear side and dropped in box (F). A sensor detects the remnant
during the path; if the remnant is still in the bar pusher collet the bar feeder stops, otherwise
the cycle goes on.
