5 - ADJUSTMENT AND SETUP SMART320
EN
5 - Pag. 11 / 20

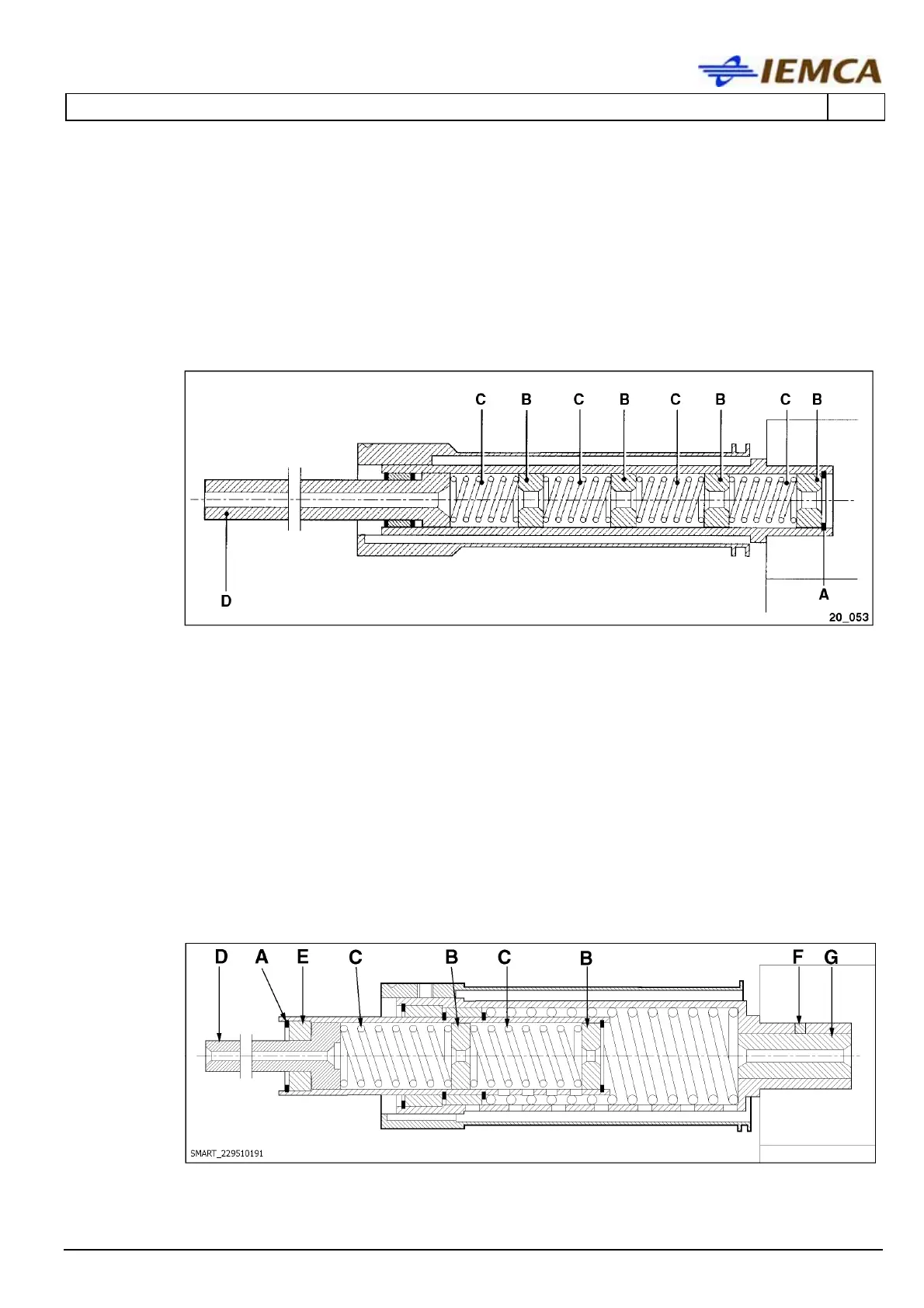

TELESCOPIC NOSE (STROKE 120/160)
When replacing the telescopic nose, it is not necessary to change completely the unit, but only
some parts supplied with the spare parts kit.
• Remove the sleeve from its housing.
• Remove ring (A).
• Remove bushes (B), springs (C) and sleeve (D).
• Reassemble sleeve (D), bushes (B) and springs (C). The sleeve and the bushes should have
the same diameter as the guide channel.
TELESCOPIC NOSE (STROKE 170/220/320)
When replacing the telescopic nose, it is not necessary to change completely the unit, but only
some parts supplied with the spare parts kit.
• Remove the sleeve from its housing.
• Remove ring (A).
• Remove bush (E), sleeve (D), springs (C) and bushes (B).
• Reinstall bushes (B), springs (C) and sleeve (D). The sleeve and the bushes should have the
same diameter as the guide channel.
Put back in place bush (E), its substitution depends on the external diameter of sleeve (D).
Reassemble ring (A).
• Loosen the screw (F) and remove the ring (G), replace it with another ring suitable for the
bar. For max. diameter guides do not install ring (G).
