Basic Concepts
The Apollo NMS (Navigation Management System) uses a variety of
remote sensors to provide a broad range of information. The “heart” of
the system is the NMC (Nav Management Computer). The interface
network is called NAVNET
TM
. The NMC interprets data from the
sensors to determine position, course, wind, altitude, and fuel
information. Some features require specific sensors. For example,
Altitude Assist features requires a Fuel/Air Data Sensor, or an altitude
encoder. Multiple position sensors and external
instruments/annunciators may be used for redundancy. The system
approach allows additional components to be added at any time.

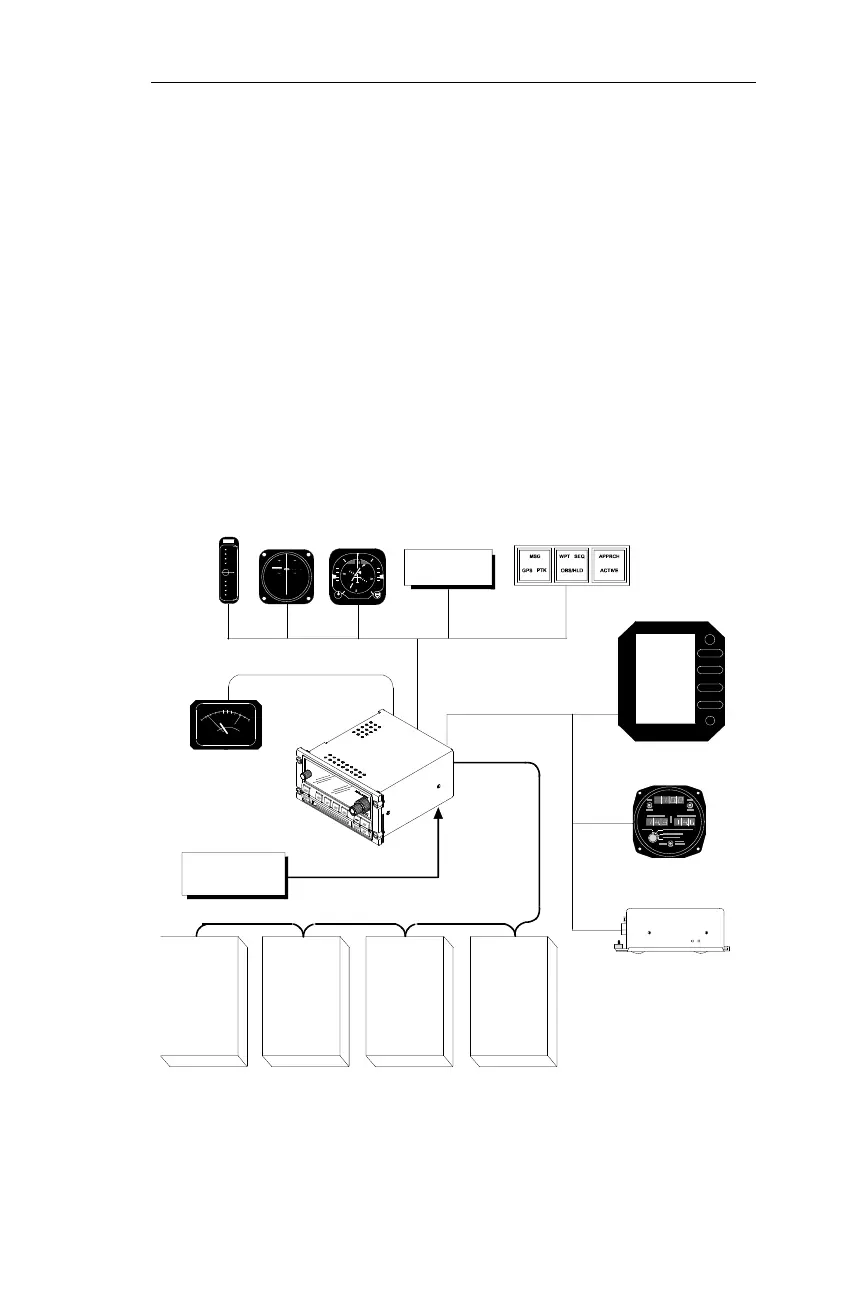

Apollo Navigation Management System
1
Apollo NMS
Apollo NMC*
Air Data
Computer**
DTRK
013TO
00.00
FMS1
FMS2
HDG
TTG
MIN
1NM
ILS1
CDI*
Apollo NMS Sensors
2010*
Apollo
NMS
VDI*
HSI
VALID
MCLS
NAVNET
PTK
Autopilot
NAV H DG
GS
GS
APR
MSGVFR
Moving Map
Shadin Digiflo / Miniflo
Fuel Flowmeters***
Altitude
Encoder***
2030***
NMS
Fuel/Air
Data
Sensor**
2022*
Apollo
NMS
GPS
Sensor
* Available from II Morrow Inc. or an authorized dealer
** Air Data Computer and Fuel/Air Data Sensors are mutually exclusive and
are shown together for illustration only.
*** Available from ShadinCo.
I/O Devices
Serial Devices
Annunciators*
EFIS
ARINC 429/561
ARINC 429
2102*
Apollo
NMS
Keypad/
GPS
Sensor
