NMC Removal (Dzus Mount)
The following procedure is used to remove the Dzus mounted NMC
from the aircraft panel. Reverse this procedure to re-install the NMC.
1. Unscrew the four Dzus mount screws on the NMC front panel by
turning them 1/4 turn counterclockwise with a flat blade
screwdriver.
2. Pull the unit out of the panel. Disconnect the avionics connector,
ground wires, and air flow tube from the back of the unit.
333
Apollo NMC Flight Simulator
Dzus mount screws

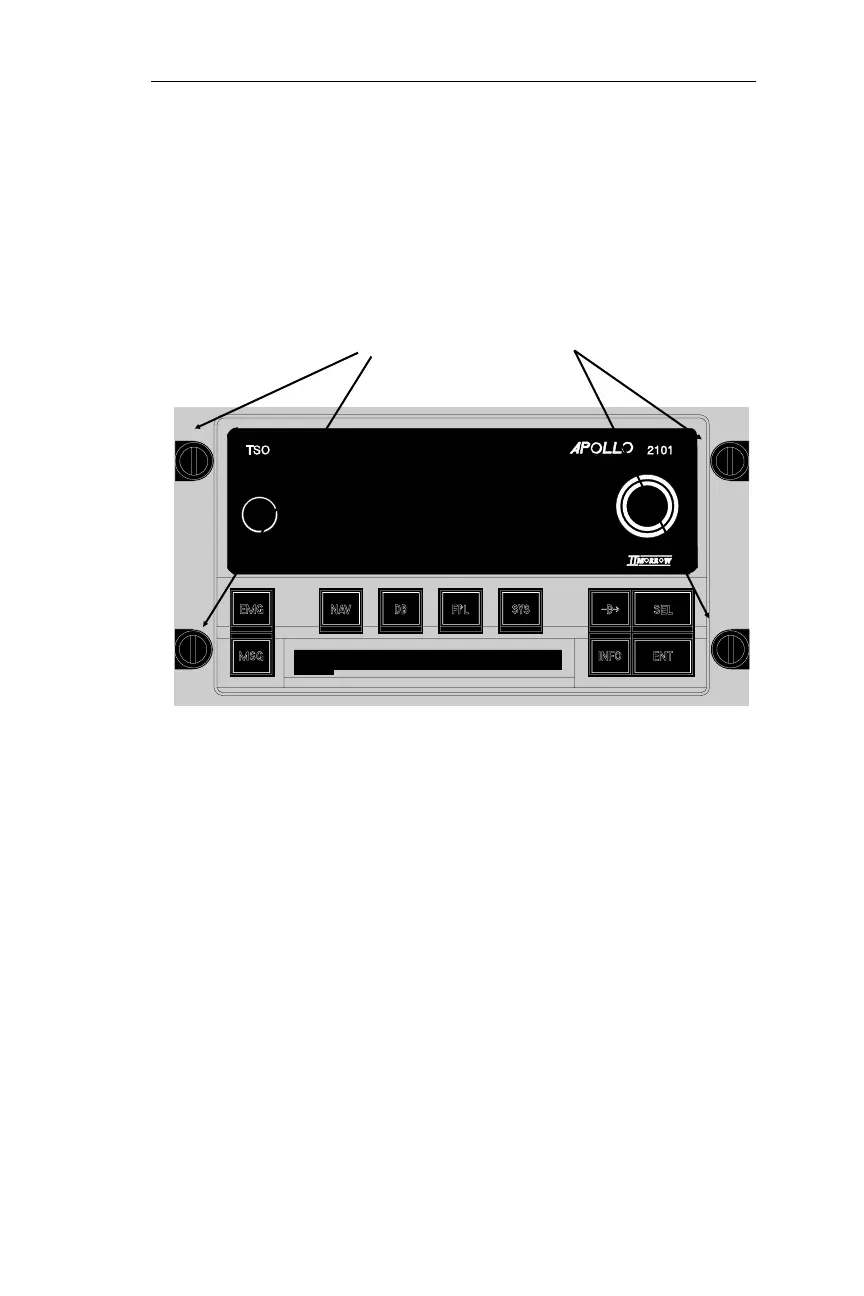

Figure 2 - Apollo NMS Dzus Mount Front Panel
