EMG Mode Procedures

Emergency Search/Direct-To Navigation

The following procedure is used to display the nearest waypoints to

your position, and navigate directly to any of them.

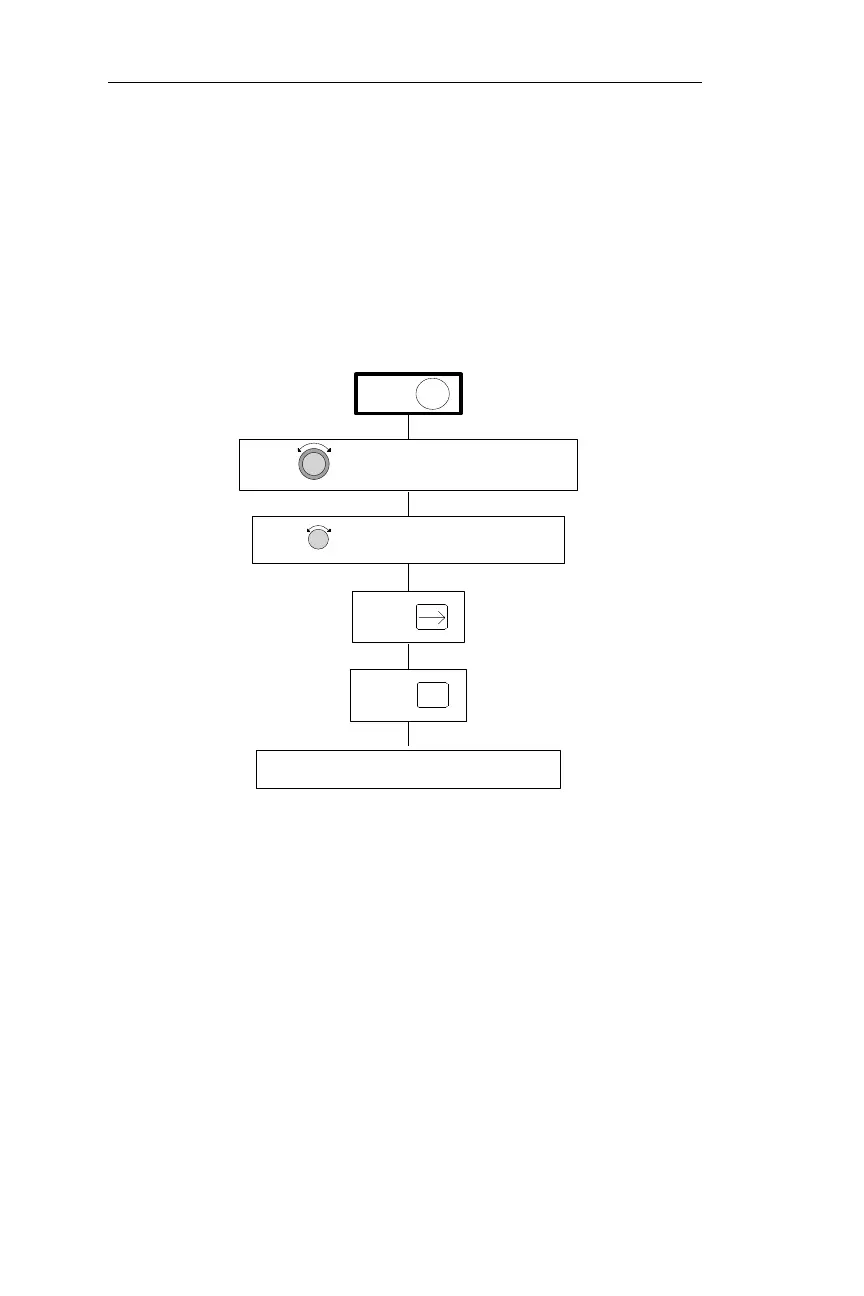

Flow Chart

Emergency Mode Displays Operations

PRESS EMG

TURN TO DISPLAY DESIRED DATABASE TYPE

TURN TO DISPLAY THE DESIRED WAYPOINT

PRESS ENT

A DIRECT COURSE TO THE WAYPOINT IS ENTERED

PRESS D
