Connecting the Power Supply
The following procedure is used to connect the NMC to the external
power supply. The NMC must be removed from your aircraft to use the
Flight Simulator.
1. Remove the NMC from the aircraft.
2. Plug the external power supply into a 120 VAC socket.
3. Insert the power cord into the power connector shown in Figure 3 or
4.
334
Flight Simulator Apollo NMC

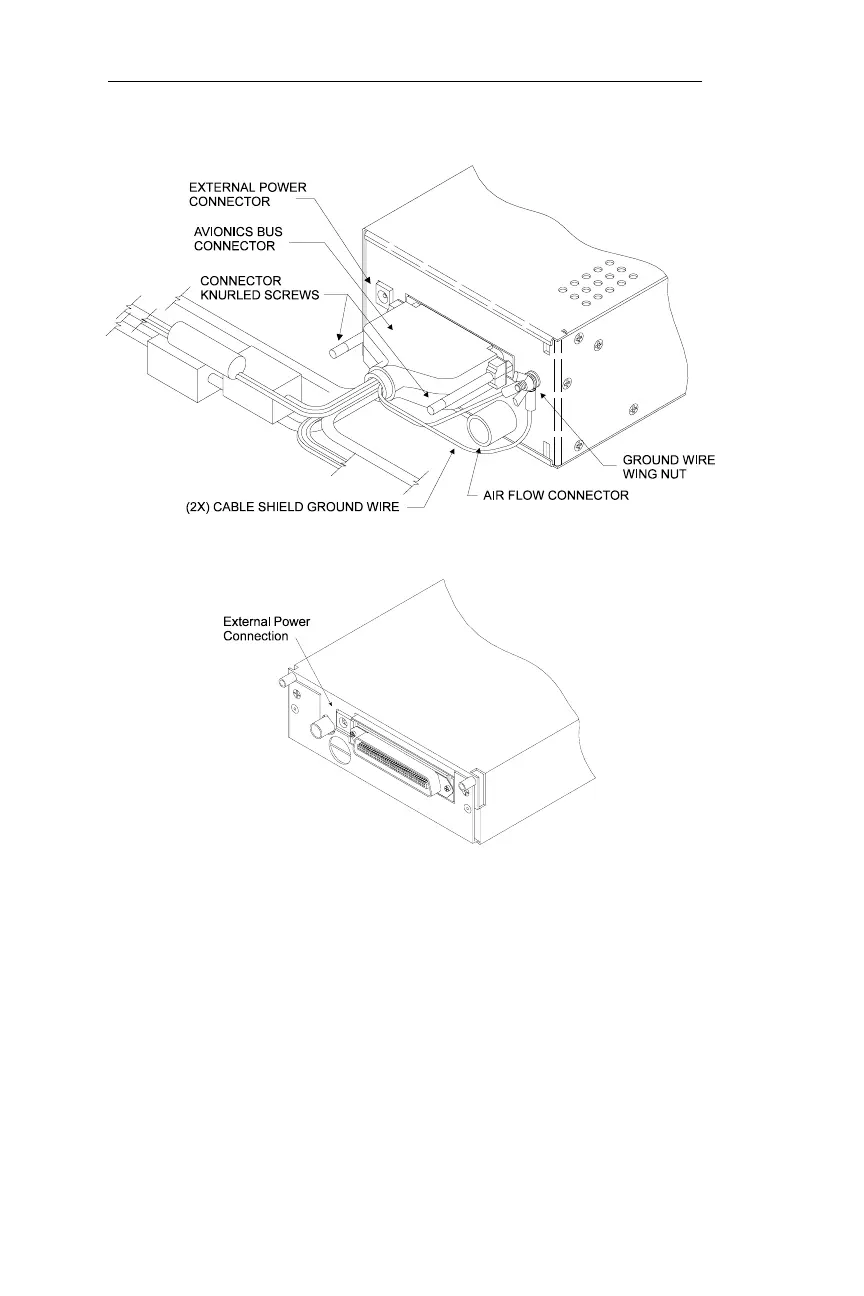

Figure 3 - Panel Mount Apollo NMC Rear Connections
Figure 4 - Apollo NMC Dzus Mount Rear Connections
